TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL
58
3
4.5.1 Modify Settings | System Configuration
Use System Configuration displays system status and can be used to add or remove
system dimensioners.
To access the System Configuration:

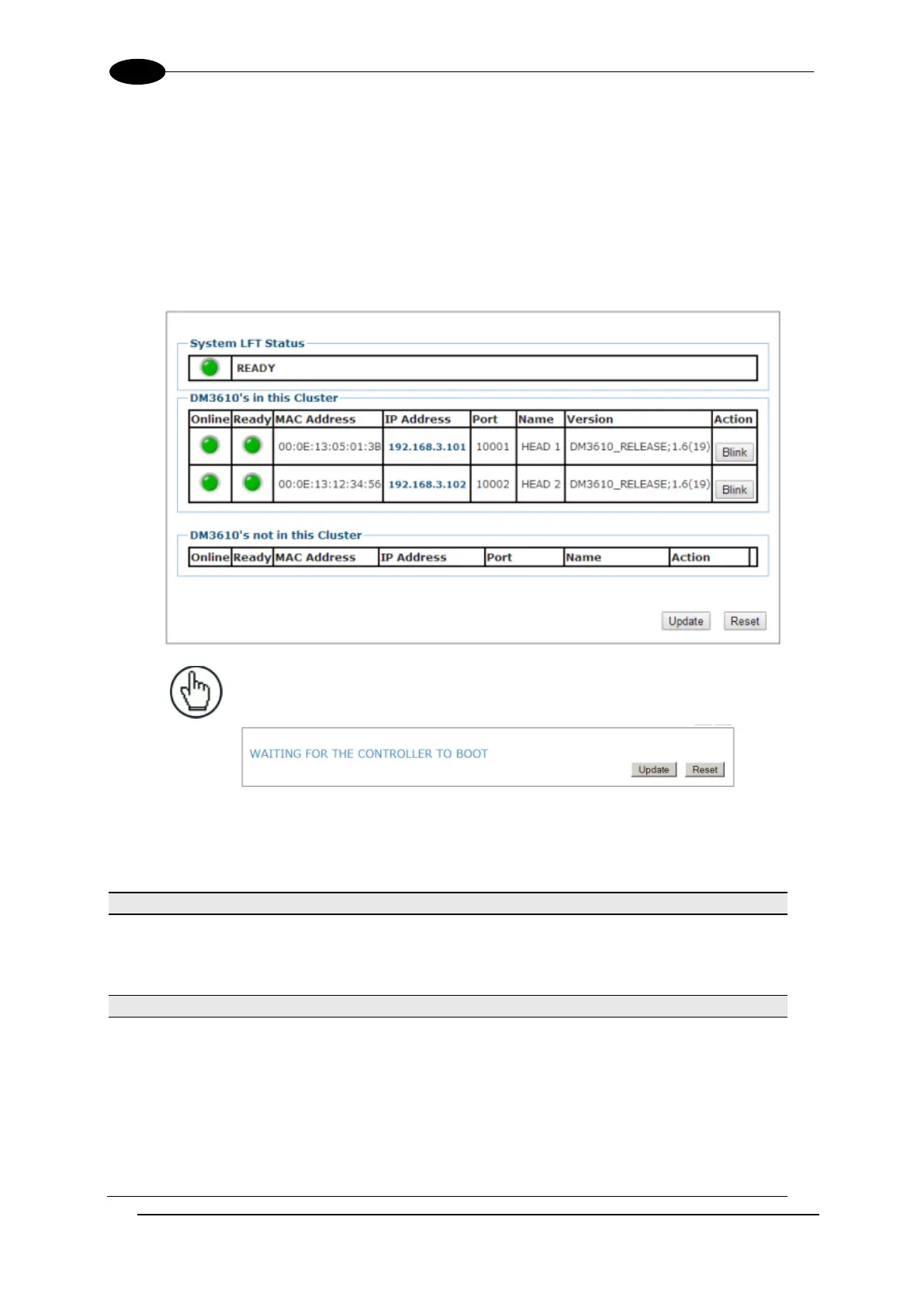

1. In the tree menu under Modify Settings, click System Configuration. The System
Configuration window opens.
NOTE: If you access this page while the system is still in the
process of starting up, the following message will be displayed.
2. View status or enter the appropriate information in the form as described below:
Field Name
Action/Definition
System LFT Status
This display indicates the Legal For Trade status of the system.
Legal For Trade indicates the system is calibrated for certified
dimensioning.
DM3610’s in this Cluster
This display indicates the DM3610 dimensioners that are connected
to the system. Each dimensioner’s Online status, Ready status, MAC
Address, IP Address, Name, and software Version are displayed.
At least one Dimensioner is listed here all the time, even if it is just a
placeholder.
To identify the dimensioners listed, click Blink. When clicked, that
dimensioners LED bar graph will blink five times.
