TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL
2.4.7 Mounting the Dimensioners with the Universal Mounting Brackets
(UMB)
The Universal Mounting Bracket (UMB) allows you to install and make fine adjustments to
the position of the DM3610. The bracket assembly includes the UMB, UMB Mounting Plate,
and UMB Mounting Disk.

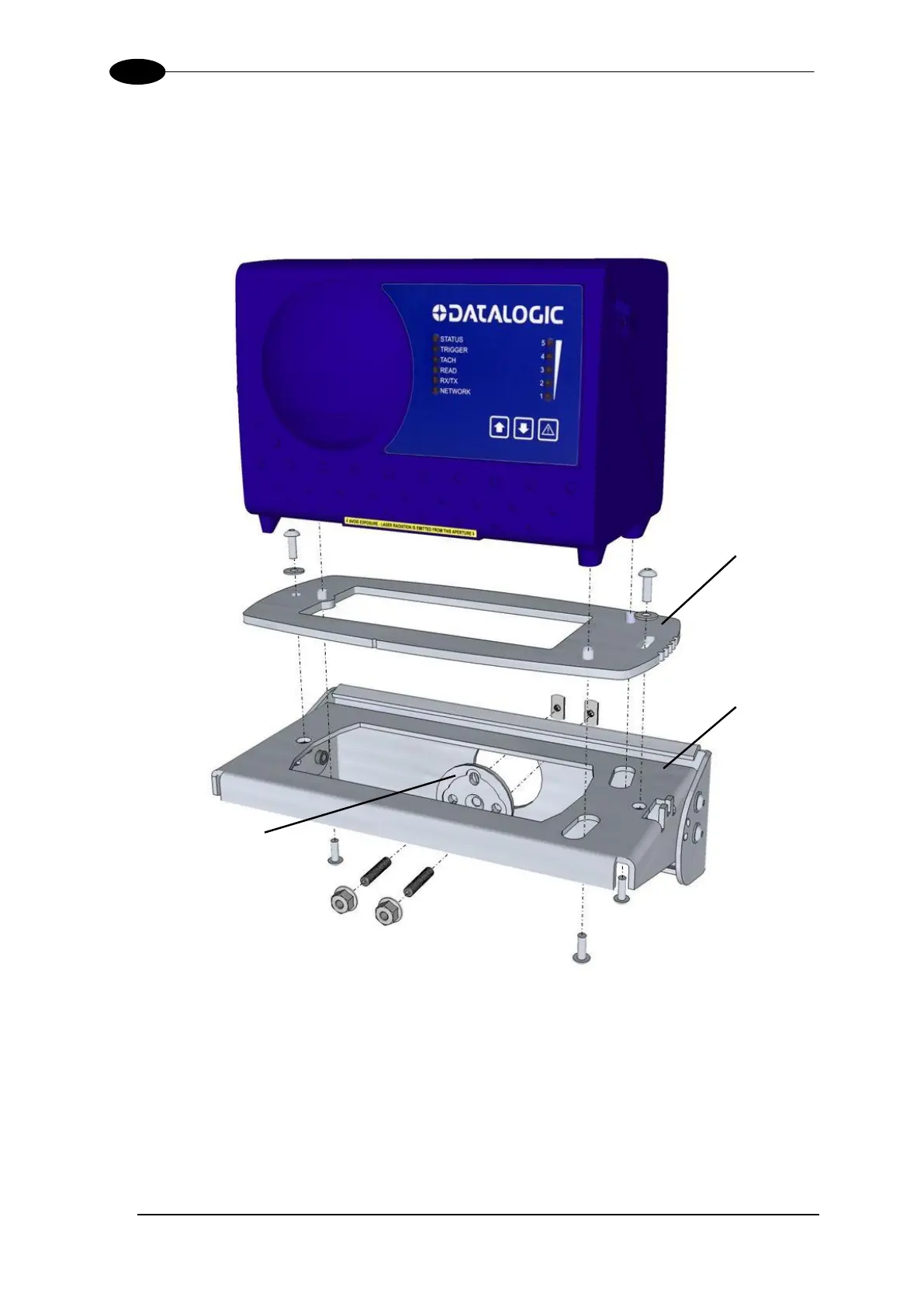

Figure 16: DM3610 and UMB Assembly
1. Mount the UMB Mounting Plate to the UMB, if it has not yet been attached.
2. Mount the UMB to the mounting structure using the UMB Mounting Disk and
hardware provided. Hardware is provided for standard Bosch or 80/20 mounting
structure extrusion.
