MECHANICAL INSTALLATION
2.4.10 Prepare the Mounting Structure and Universal Mounting Brackets
1. In standard installations, the DM3610 Universal Mounting Bracket (UMB) is mounted to a
short upright mounting support (from mounting structure extrusion).
2. Using a tape measure and marker or pencil, make an installation mark on each upright
where the center of the Universal Mounting Bracket (UMB) mounting disks will be
located. Base your installation marks on application drawings provided with your system if
available.
3. If the UMB Mounting Plates are yet attached to the UMB for each dimensioner, attach
them now with the screws provided.

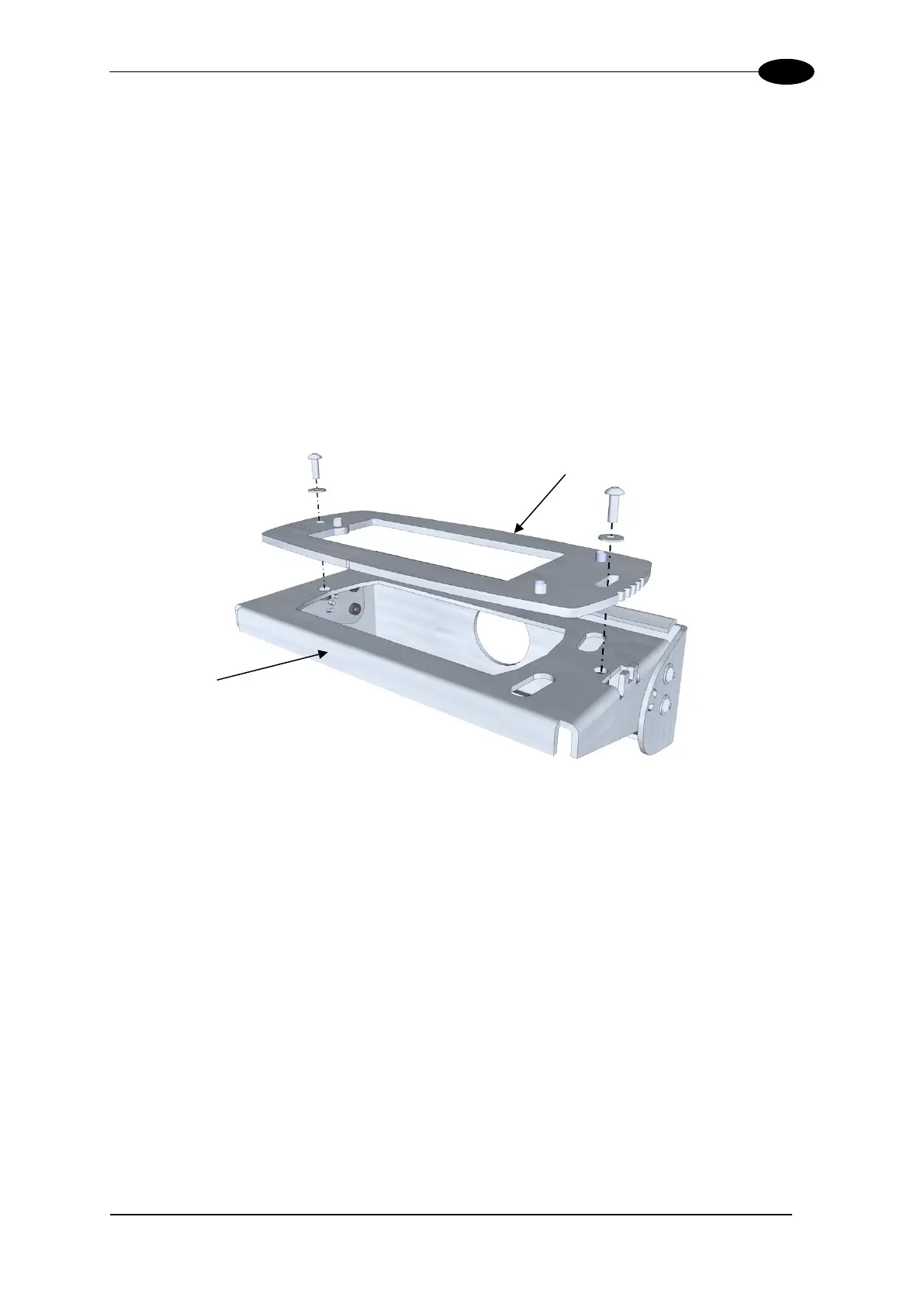

Figure 21: UMB Mounting Plate to UMB Assembly
