2.4.18 Mounting the Power Supplies
Mount the each power supplies on the structure where its cables can reach both the DM3610
and a power source. Secure the power supply to the mounting structure using the supplied
hex screws and drop-in T-nuts as shown below.

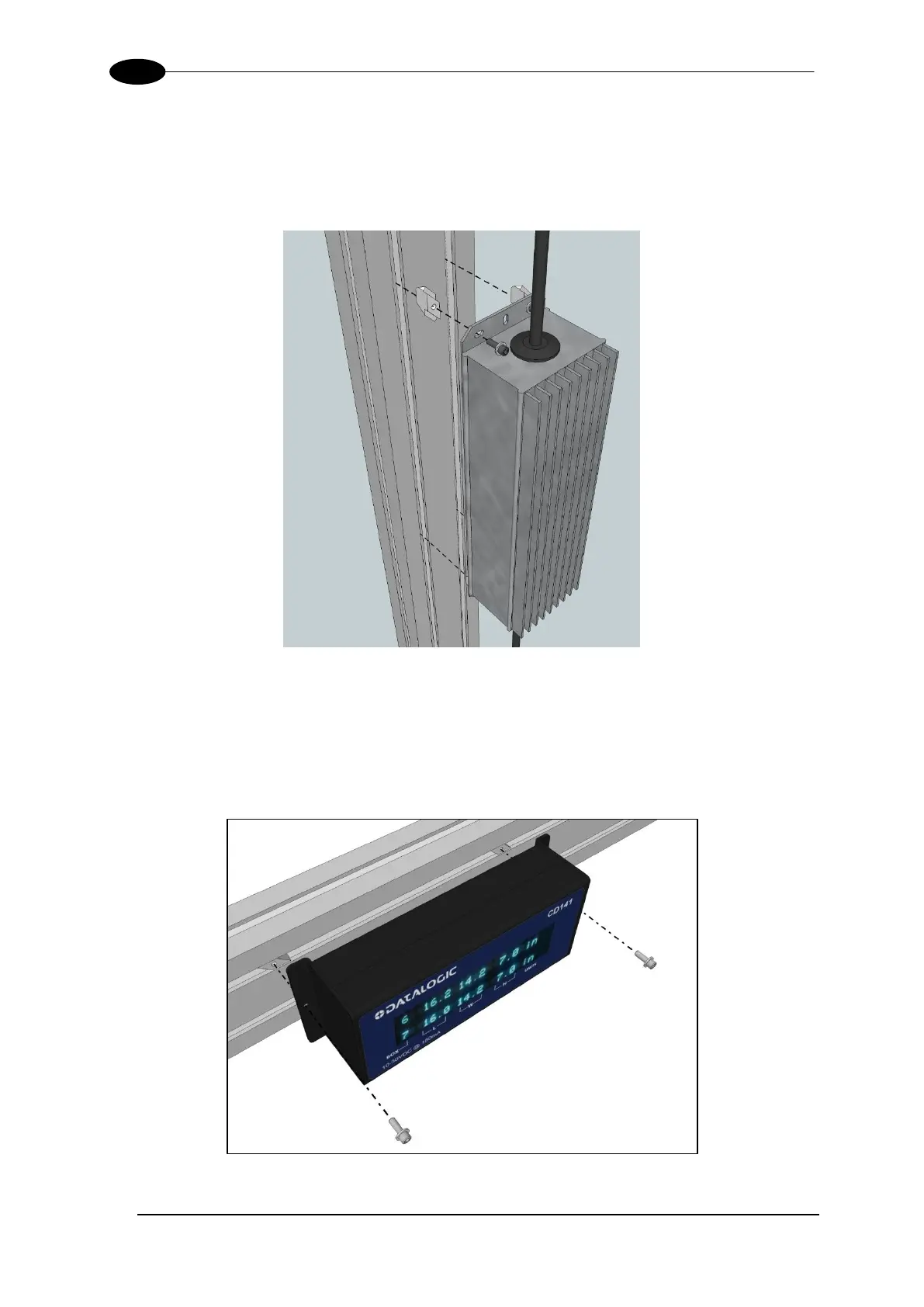

Figure 33: Securing the power supply to the mounting structure.
2.4.19 Install the CD141 Display (optional)
Mount the 40-character display to a structure crosspiece with the hardware provided. Be sure
to mount the display where it will be easily readable.
Figure 34: Securing the CD141
