TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL
3.12 REMOTE DISPLAY WIRING
In some Legal-for-Trade applications, a CD141, 40 character remote display may be
required. Use the cable provided with the remote display to connect to the CBX510 pin block
as shown below.

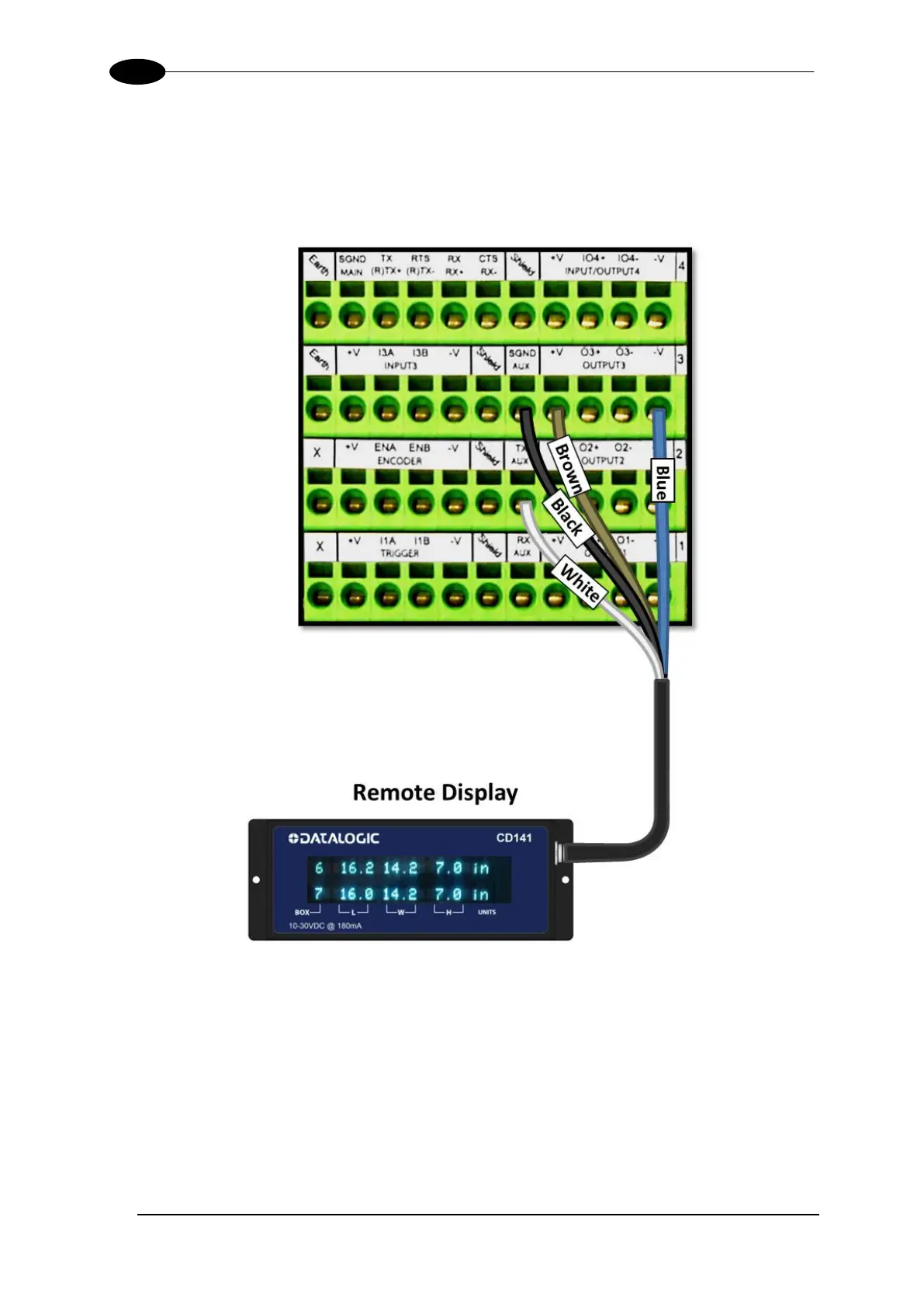

Figure 42: CD141 Remote Display Wiring
