INTRODUCTION
1.7 REMOTE DISPLAY
In all legal-for-trade applications, the certified dimensioning system is required to have at
least one remote display per site for inspection purposes. The number of displays required
per site varies according to certification type.
The Datalogic CD141 Remote Display is a 2 line x 20 character vacuum fluorescent display.
The display shows the dimensions for the most recent two boxes (with the most recent box
on the lower line). The display shows:

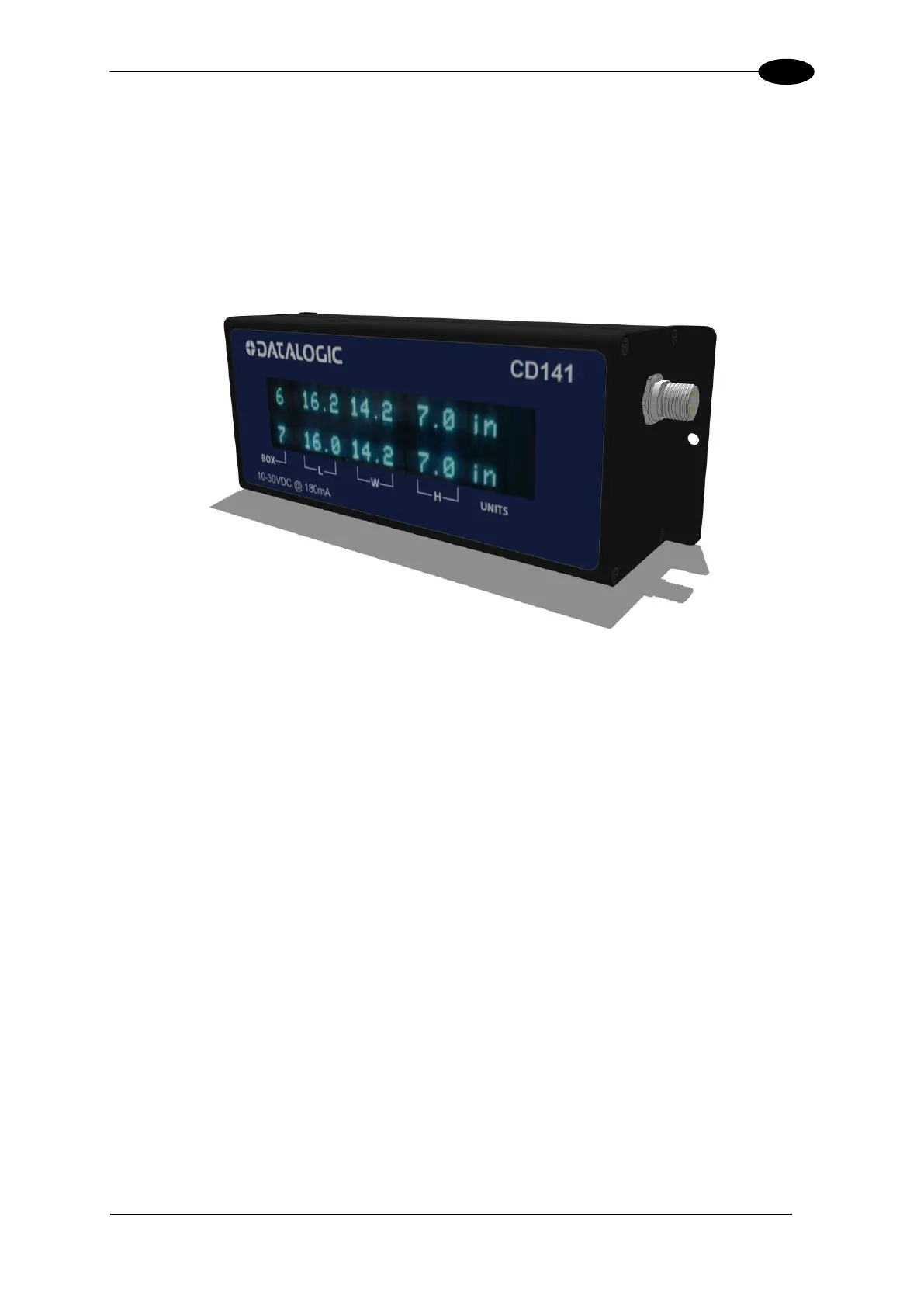

Figure 12: Dedicated Remote Display
Legend:
BOX displays box sequence number (0 to 9)
L displays longest horizontal dimension (length)
W displays shortest horizontal dimension (width)
H displays height
UNITS displays Metric (mm) or Imperial (in) dimension units used
