4. With the delimiters in place along the baseline straightedge, measure between the edges
of the delimiters and diagonally as shown to make sure they are parallel. The
measurements must be equal. Then, when the delimiters are parallel, measure the
distance between them to determines the length (L) of the package.

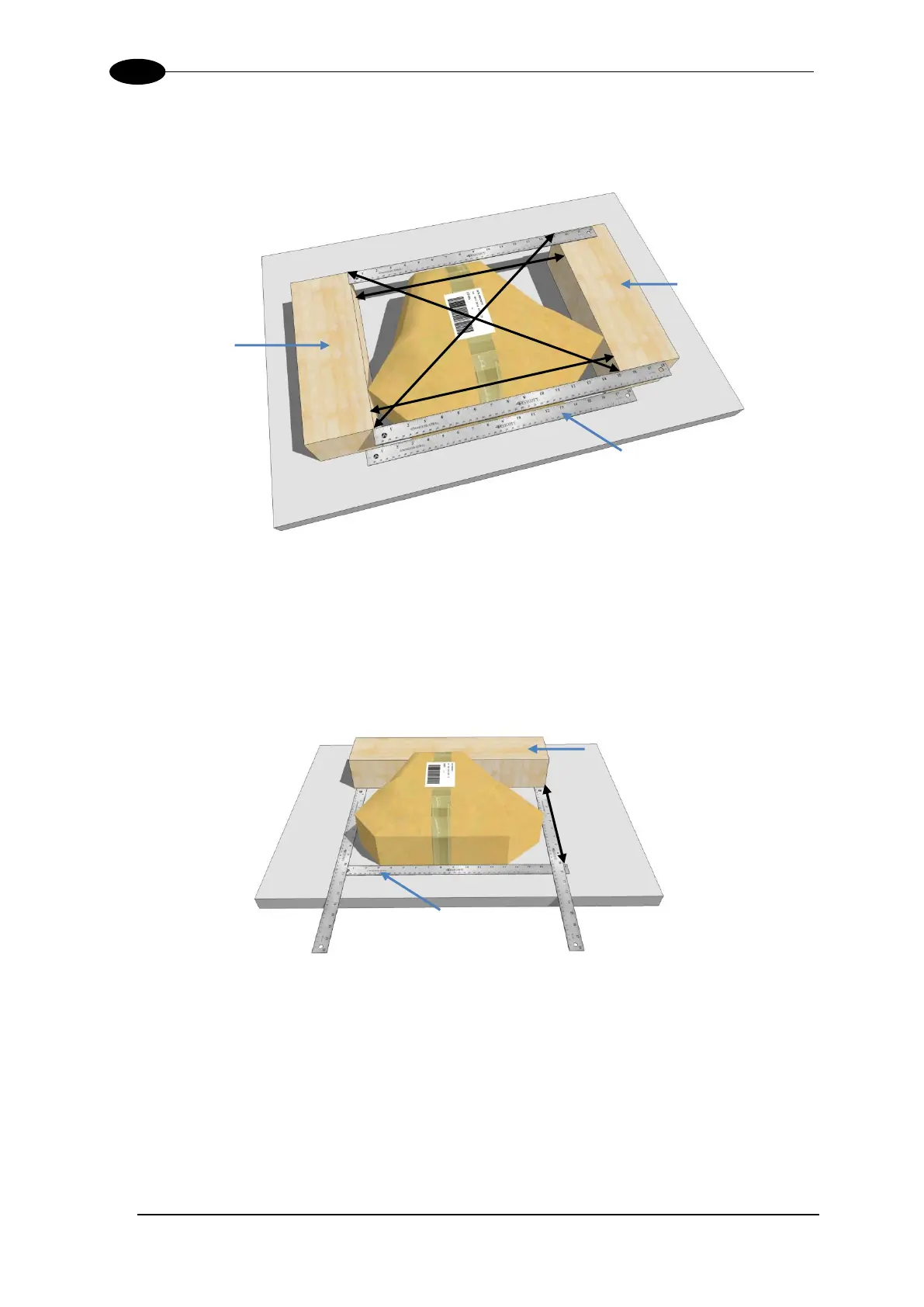

Figure 63: Measure to make sure the delimiters are parallel
5. Place a delimeter along the edge of the package opposite the basline straightedge.
Measure from the ends of the delimiter to the straightedge to make sure it is parallel. The
measurements must be equal. Again, measure diagonals and the distance between the
straightedge and delimiter. This determines the width (W) of the package.
Figure 64: Measure to make sure the delimiter is parallel to the straightedge
Straightedge
Baseline
Delimiter
Delimiter
Straightedge
Baseline
Delimiter
