Datalogic DS6300 User Manual

CBX ELECTRICAL CONNECTIONS
31
3
NOTE
Terminal pins I34B are common to both inputs 3 and 4 and therefore these
inputs cannot be driven by opposite polarity devices.

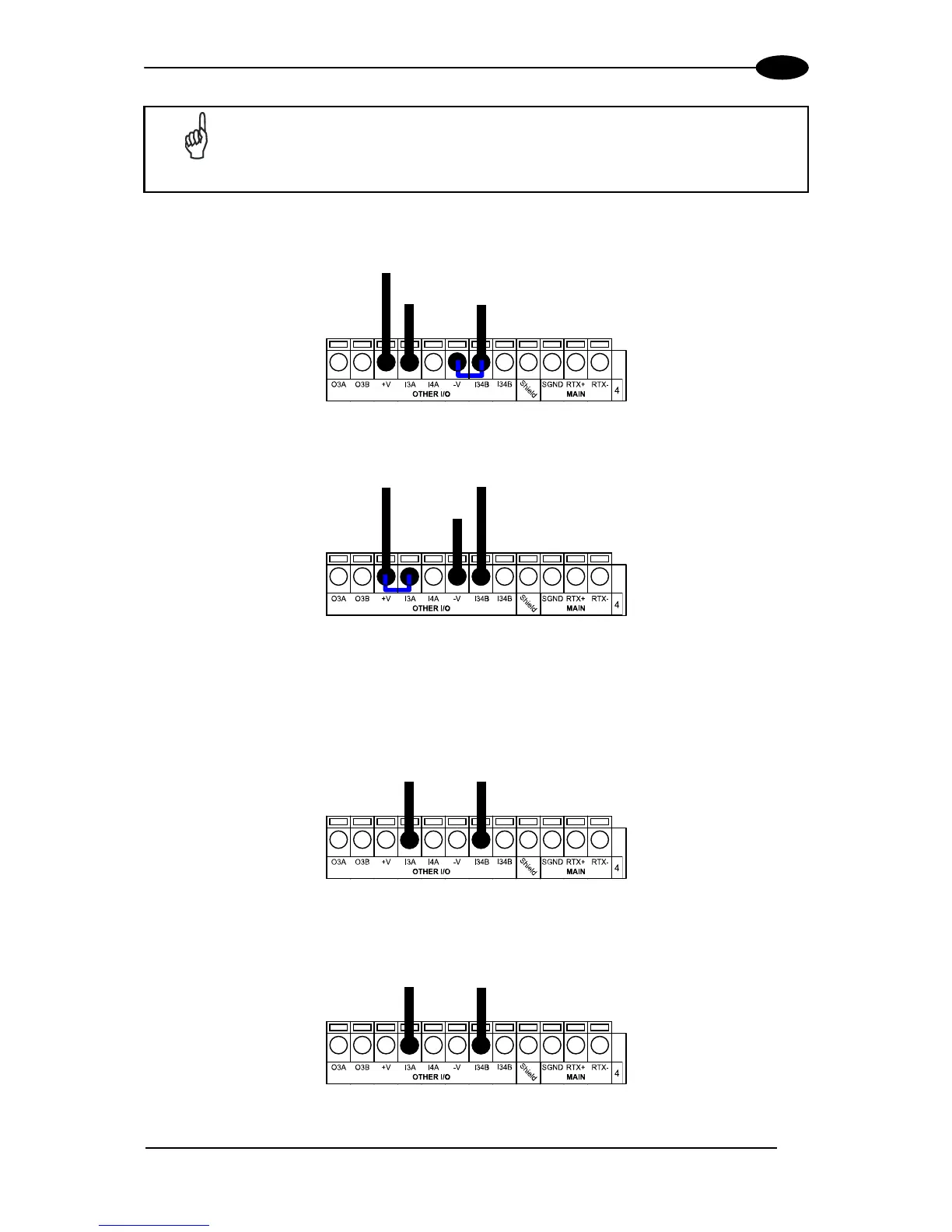

INPUT 3 - 4 CONNECTIONS USING DS6300 POWER (CBX500 Only)
Power to
Input Device
Input Input Device
Signal Reference
Input Device
Figure 40 - PNP Input 3 - 4 Using DS6300 Power
Power to Input
Input Device Signal
Input Device
Reference
Input Device
Figure 41 - NPN Input 3 - 4 Using DS6300 Power
INPUT 3 - 4 CONNECTIONS USING EXTERNAL POWER (CBX500 Only)
Input
Signal
External Device
Ground Reference
Figure 42 - PNP Input 3 - 4 Using External Power (i.e. PLC signal)
Input
Signal
External Device
Power Reference
Figure 43 - NPN Input 3 - 4 Using External Power (i.e. PLC signal)
