Chapter 6 Description of Operations
PAGE 6-35

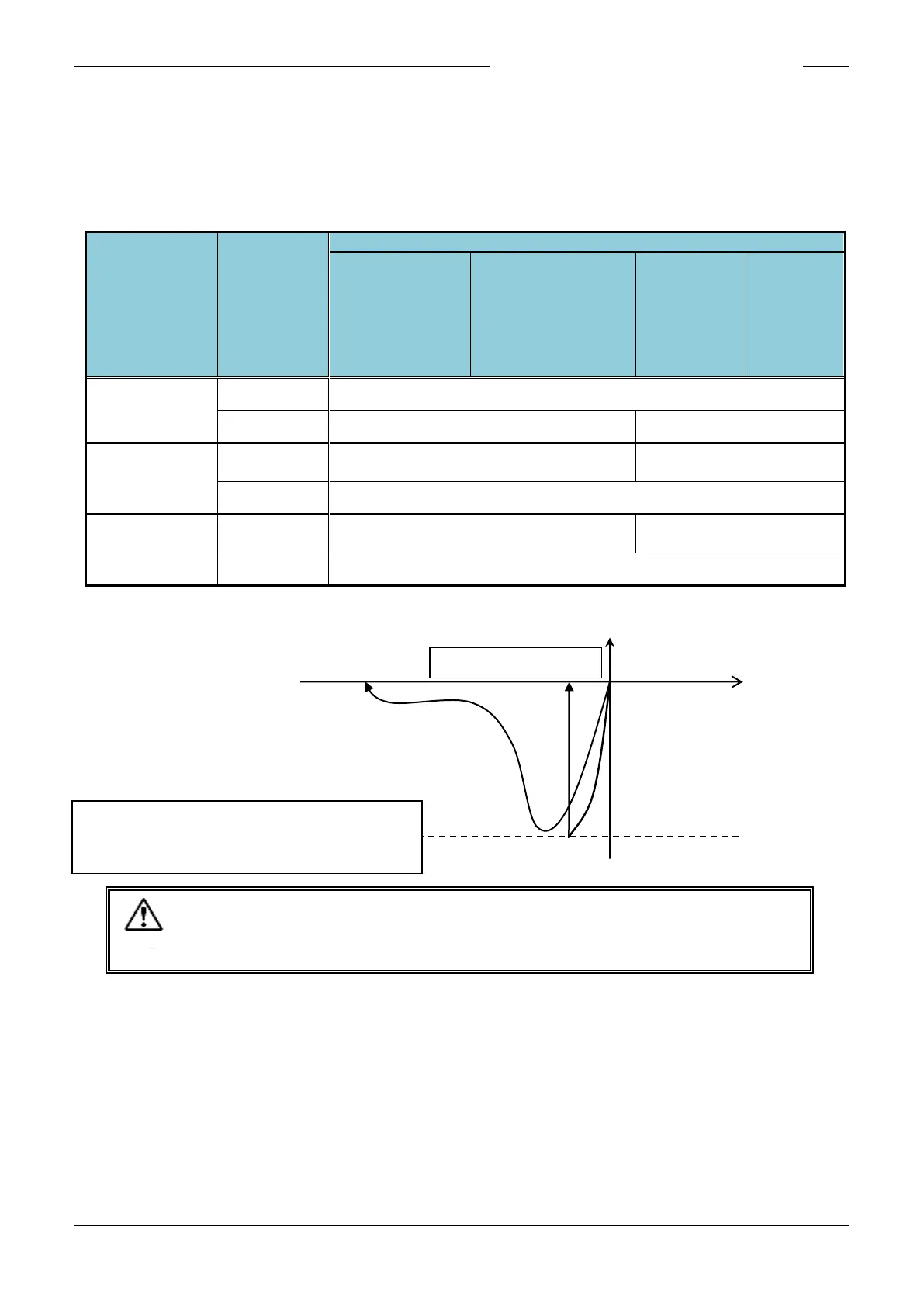

●Break away Torque Check
Whether or not the torque value during reverse rotation is within the high limit ranges is judged. If the
torque exceeds the upper limit value, the fastening operation is ended and the abnormal state signal
A09-08 “Reverse Torque Error” is generated.
The upper limit value of the torque depends on the Controller software version and reverse rotation
operation. (See the table below)
Controller
Software
Version
Break away
Torque
Check
Reverse rotation operation
Fastening
Option:
“Reverse Before
Fastening”
Interrupt Operation
During Fastening:
“Reverse Between
1-2 Steps” and
“Reverse Between
2-3 Steps”
PLC I/O
input signal
“REVERSE”
Reversing
switch
operation
less than
V1.002
Disable (0)
Without limit
Enable (1)
D-No. 110 [Reverse Torque High Limit]
Without limit
V1.002～
V1.204
Disable (0)
Without limit
D-No. 110
[Reverse Torque High Limit]
Enable (1)
D-No. 110 [Reverse Torque High Limit]
V1.205 or later
Disable (0)
1.3 times of D-No.100 [Calibration torque]
D-No. 110
[Reverse Torque High Limit]
Enable (1)
D-No. 110 [Reverse Torque High Limit]
・ D-No. 110 [Reverse Torque High Limit] limit is caused when you loose the bolt
already fastened over 5N・m of default setting in the case of the reverse
operation and it automatically stops for safety.
Caution
Torque
Angle
D-No.110 [Reverse Torque High Limit]
or
1.3 times of D-No.100 [Calibration torque]
A.09-08 is generated
Reverse stop
