DDK HFC3000II - 6-7. Fastening NG (Failure) Result Indications

Chapter 6 Description of Operations
PAGE 6-26
6-7. Fastening NG (Failure) Result Indications
When a fastening NG occurs, in addition to the NG lamp indication at the upper part of the controller, the
item detected as the fastening NG is indicated in the numerical value indication part by the present function.
In the case of fastening to the standard torque, judgments are made in the order: rate high/low limits,
differential angle high/low limits, 2ND region fastening high/low limit times, angle high/low limits, peak torque
high/low limits, and final torque high/low limits, and the item with which NG is detected first is indicated.
The following tightening NG items are not displayed in this function because they are
judged after tightening stops.
· Peak torque Low limit NG
· Final torque High limit NG
· Final torque Low limit NG
· Final angle Low limit NG
· DIFF angle High limit NG
· DIFF angle Low limit NG
· 1ST Time Low limit NG
· 2ND Time Low limit NG
· Rotating thread number lower limit NG
· SNUG Torque High limit NG

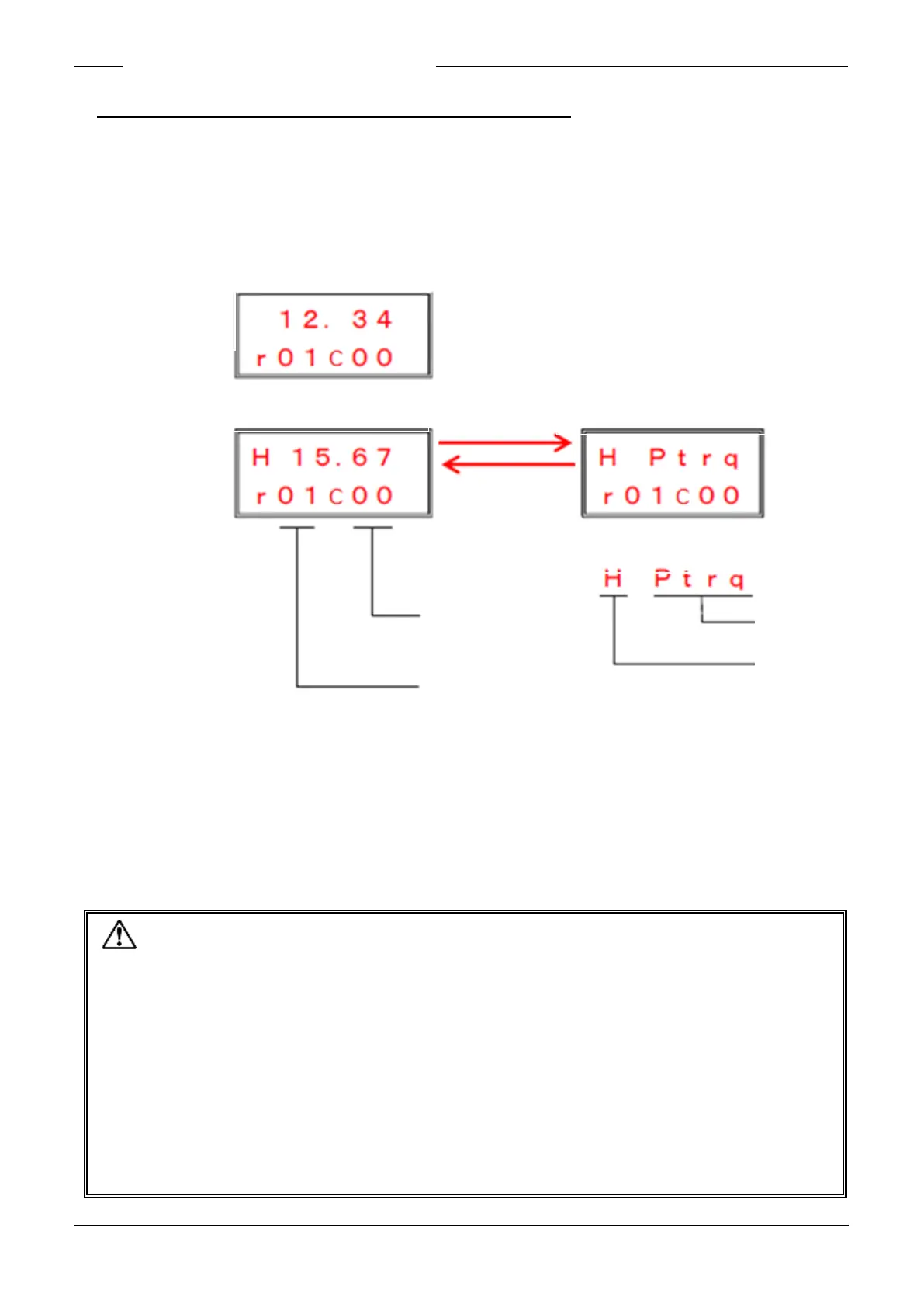

Example of
fastening
indication in case
of OK judgment
The fastening peak torque value is indicated.
Example of
peak torque
high limit NG
judgment
Fastening result indication
The indication
changes every 1
second.
Fastening NG item indication
The judgment, “H,” is indicated first
and then the item is indicated.
NG content
symbol
Judgment result
Fastening result
indication mode
No.
Parameter No.
“r” at the head indicates
the result indication
mode.
NG content symbols
・Ptrq Peak torque ・Ftrq Final torque
・StC Starting torque inhibit
・AnGL Final angle ・dIFF Differetntial angle
・1Str Rate 1 ・2ndr Rate 2
・3rdr Rate 3
・1Stt 1st time ・2ndt 2nd time
・turn Rundown revolutions
・St-off Lever Off ・Gyro Gyro Stop
Caution
S0140185-H
