DDK HFC3000II - Indications in the RUN Mode(Operation View)

Chapter 6 Description of Operations
PAGE 6-16

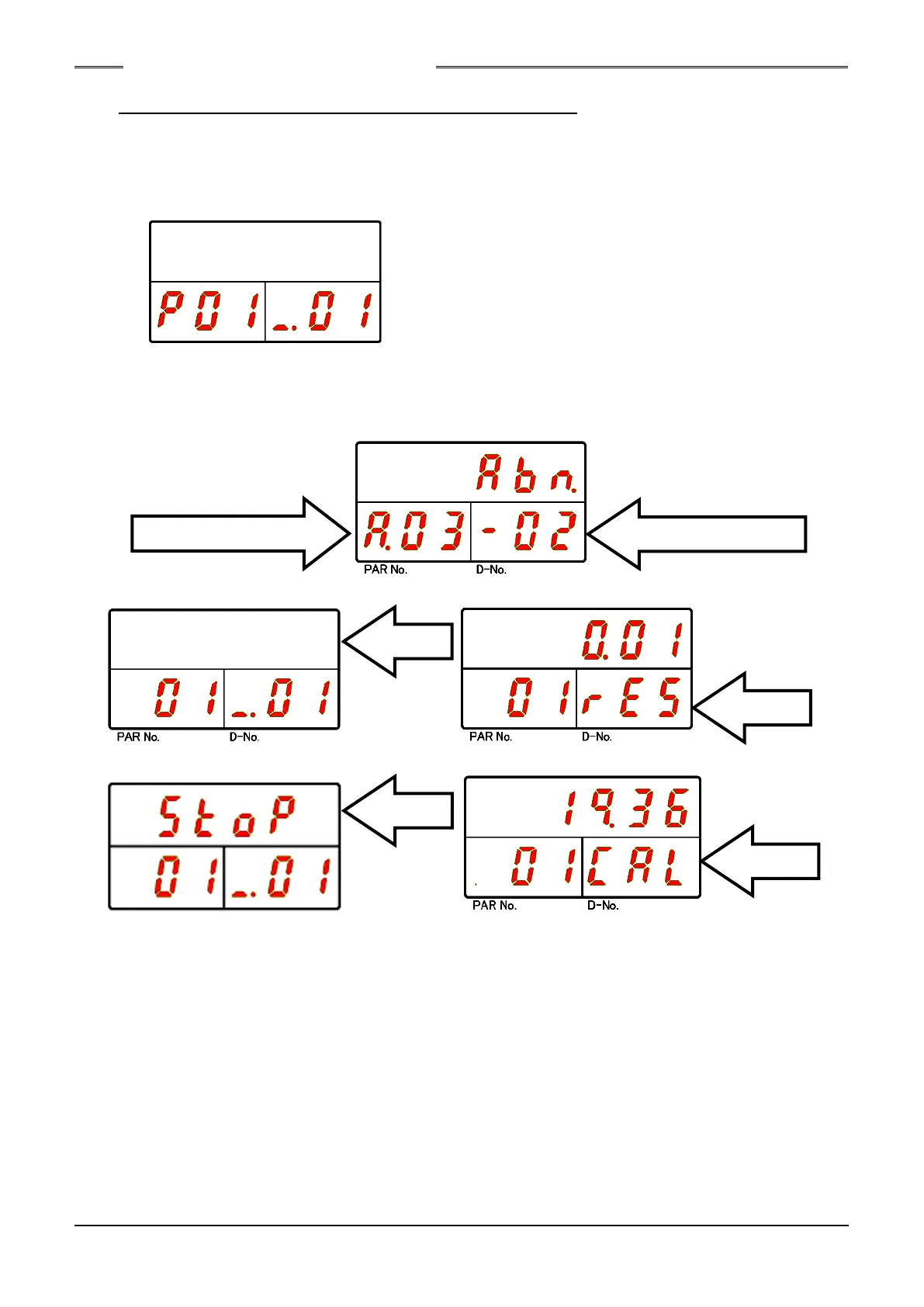

6-4-6. Indications in the RUN Mode(Operation View)
In the operation view, the currently selected work (parameter) No. (01 ~ 64) is indicated in the
WORK indication part. The Spindle No. of the Unit is indicated by the 10s and 1s digits of the
COUNT/D-No. indication part.
■Ordinary View
When the state of the system is changed due to occurrence of an error or setting of the STOP
signal to “OFF,” etc., transition to the status indication is performed automatically and the contents
indicated in the respective indication parts change accordingly.
■When an error occurs (ABNORMAL signal “ON”)
■When the BYPASS signal is turned “ON” ■When the RESET switch is turned “ON”
■When the STOP signal is turned “OFF” ■When the CAL switch is turned “ON”
P
P
P
P
Ｐ ro Ｇ
Abnormal state signal
Sub code indication
“bypass”
“stop”
“cal”
“Res”
S0140185-H
