Chapter 4 Installation
PAGE 4-3

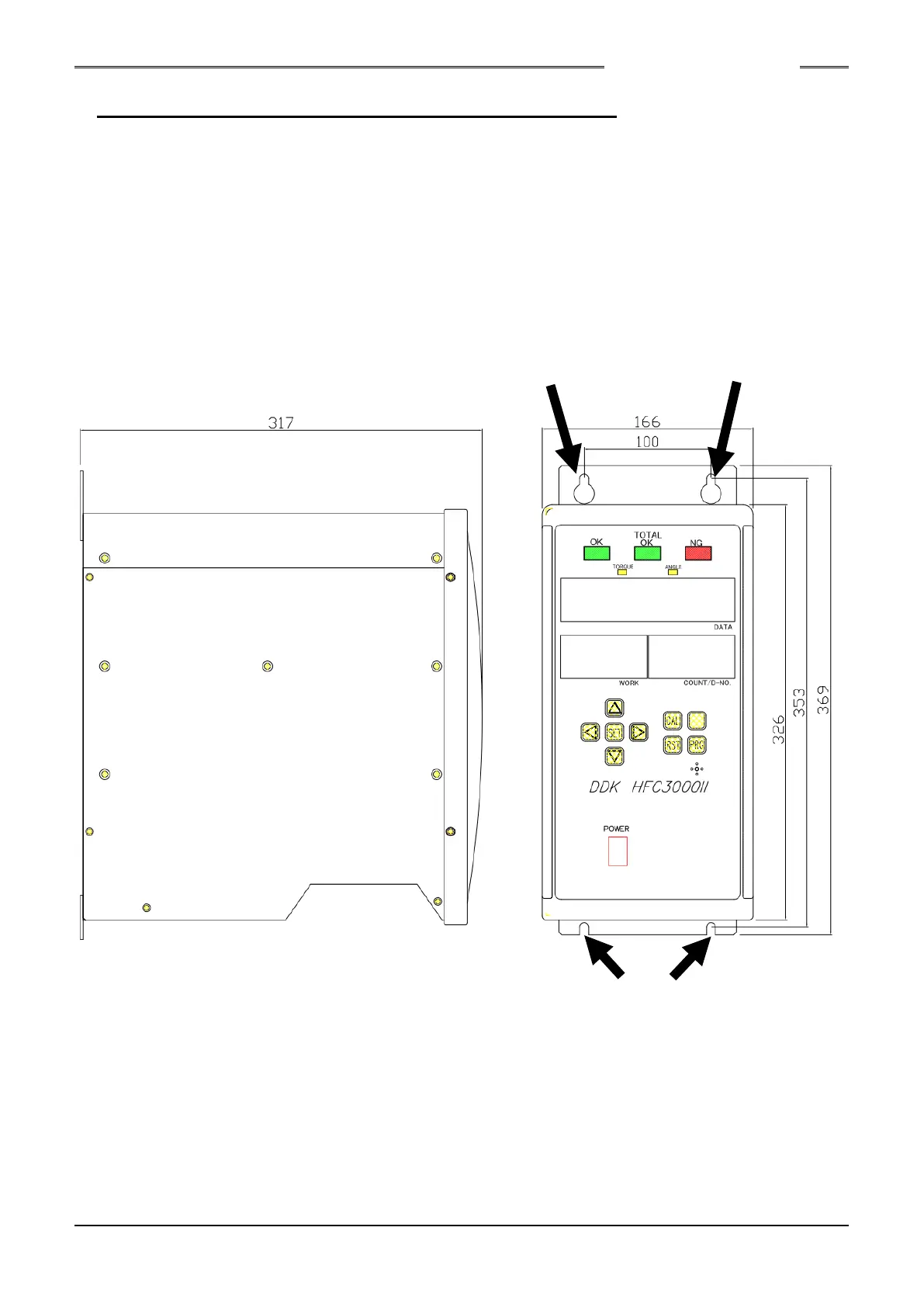

4-2. Unit Outer Shape and Installation Dimensions
Mounting: 4 points (Rear panel) M6 screws: Use screws with a length equivalent to the
installation plate thickness +9mm.
Weight: 8.5 kg
<Mounting Precautions>
◆ Do not install the unit at a location that is constantly vibrating.
◆ Install the Unit at a location where the temperature, humidity, and other operating environmental
conditions are satisfied.
◆ Do not use a mounting screw longer than the abovementioned size.
