DDK HFC3000II - 4-4. Tool Cable Specifications

Chapter 4 Installation
PAGE 4-6

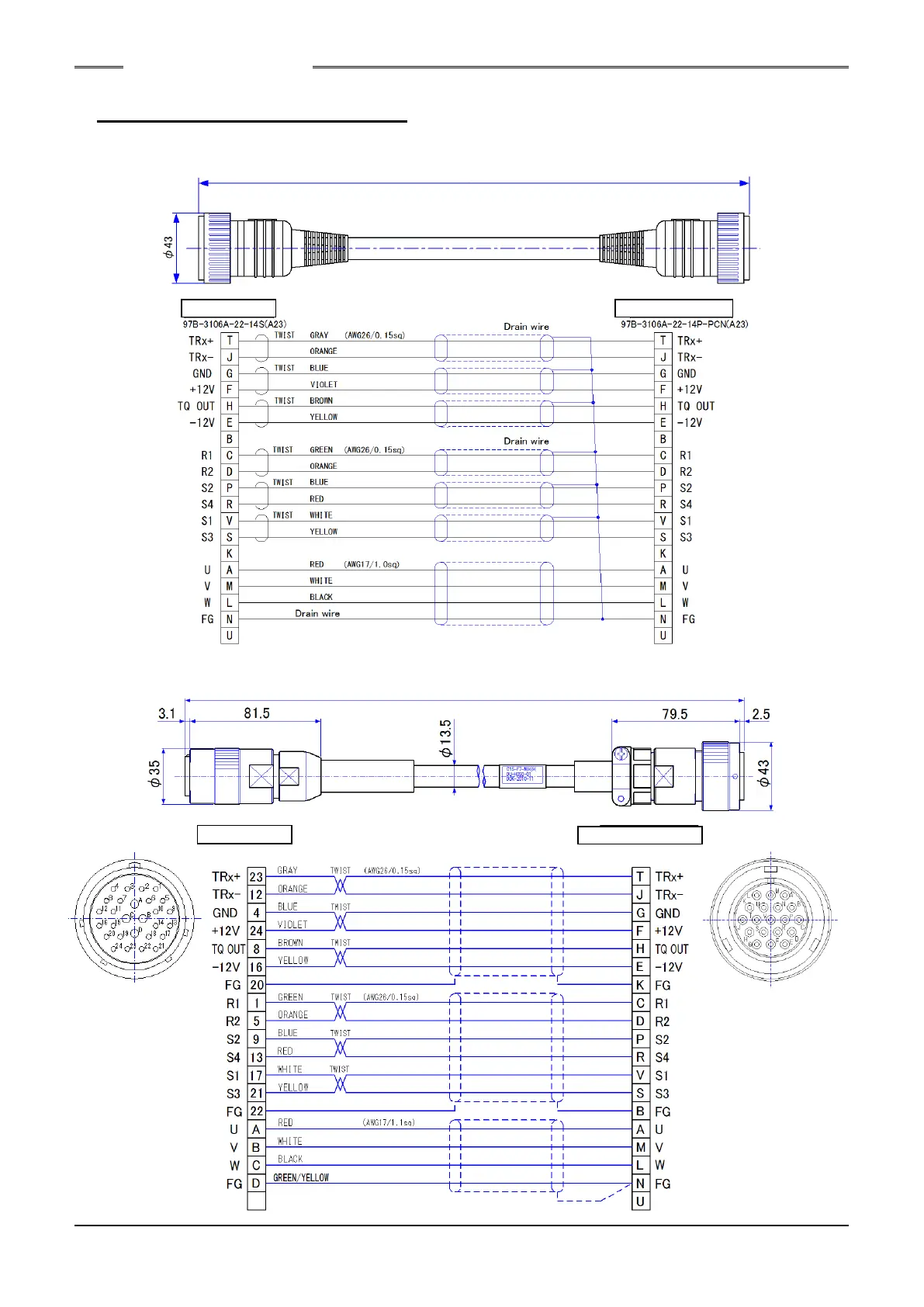

4-4. Tool Cable Specifications
■Tool Cable (Cable type: FEB-1616-M**) Cable Length :15m max, Maximum number of relay : 1
■Tool Cable (Cable type: C15-F7-M**) Cable Length :15m max, Maximum number of relay : 1
Tool Side
Controller side
Tool Side
Controller Side
(AWG16-4/AWG24-24)
(#22 shell-19)
Total length L
Total length L
S0140185-H
