Chapter 4 Installation
PAGE 4-7

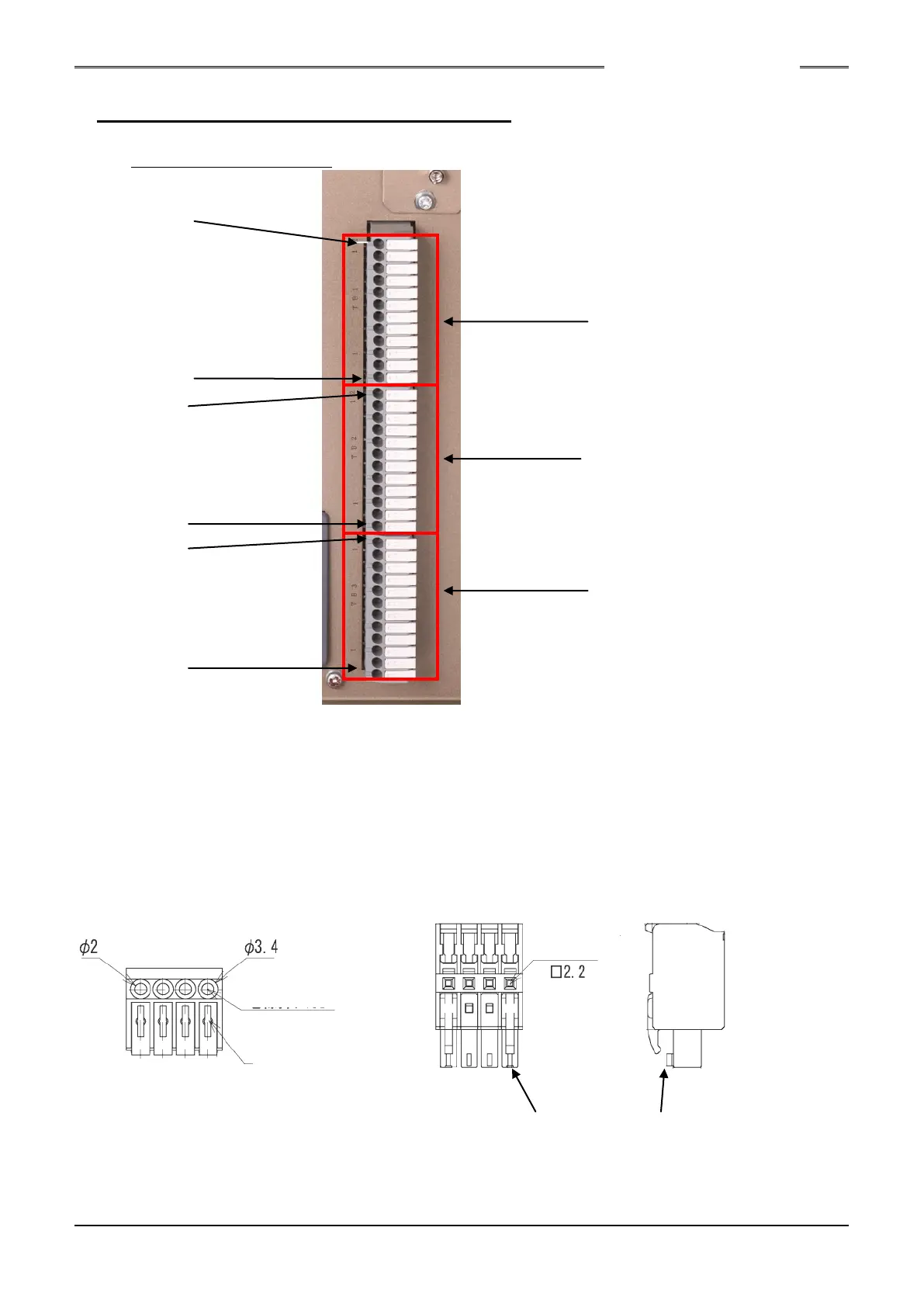

4-5. External Control Signal Connection
DI0 Terminal Block: TB1,2,3
TB3 12
TB3: 12 terminals
*The No. 11 terminal at the plug
side lacks a projection.
TB3 1
TB2 12
TB2: 12 terminals
TB2 1
TB1 12
TB1: 12 terminals
*The No. 1 terminal at the plug
side lacks a projection.
TB1 1
Connector Model : ML-4000-CWSH-12PGY
Manufacturer : SATO PARTS
Rated applicable wire : Solid wire 0.8mm φ (AWG 20), stranded wire 0.5mm
2
(AWG 20)
Range of useable wires : Solid wire 0.4mm φ ~ 1.2mm φ (AWG 26 ~ AWG 16)
Stranded wire 0.2mm
2
to 1.25mm
2
(AWG 24 ~ AWG 16)
Wire outer diameter 0.18mm φ or more
Standard wire stripping length: 9mm
Note: One wire is connected to one terminal. Do not connect two or more wires to one terminal.
The No. 1 TB1 plug does not have a projection.
The No. 11 TB3 plug does not have a projection.
Wire insertion releasing
portion
S0140185-H
