8-1-5. Flow of Data Storage
The fastening results and the fastening curves are stored in the CF card.
The fastening results are stored according to date in the TSV format and can be displayed in
Microsoft® Excel®.
In regard to the fastening curves, the torque vs. angle (180deg) curve of each Spindle is stored in
the “nracd” format, which is dedicated for use with the HFC3000 User Console.
The fastening curve displayed on the “Curve Monitor” of the HFC3000 User Console can be stored
in the TSV format.
Please refer to “Wave Monitor” of the <<HFC3000 User Console Instruction Manual>>
concerning the display of the curve.
● Fastening Results

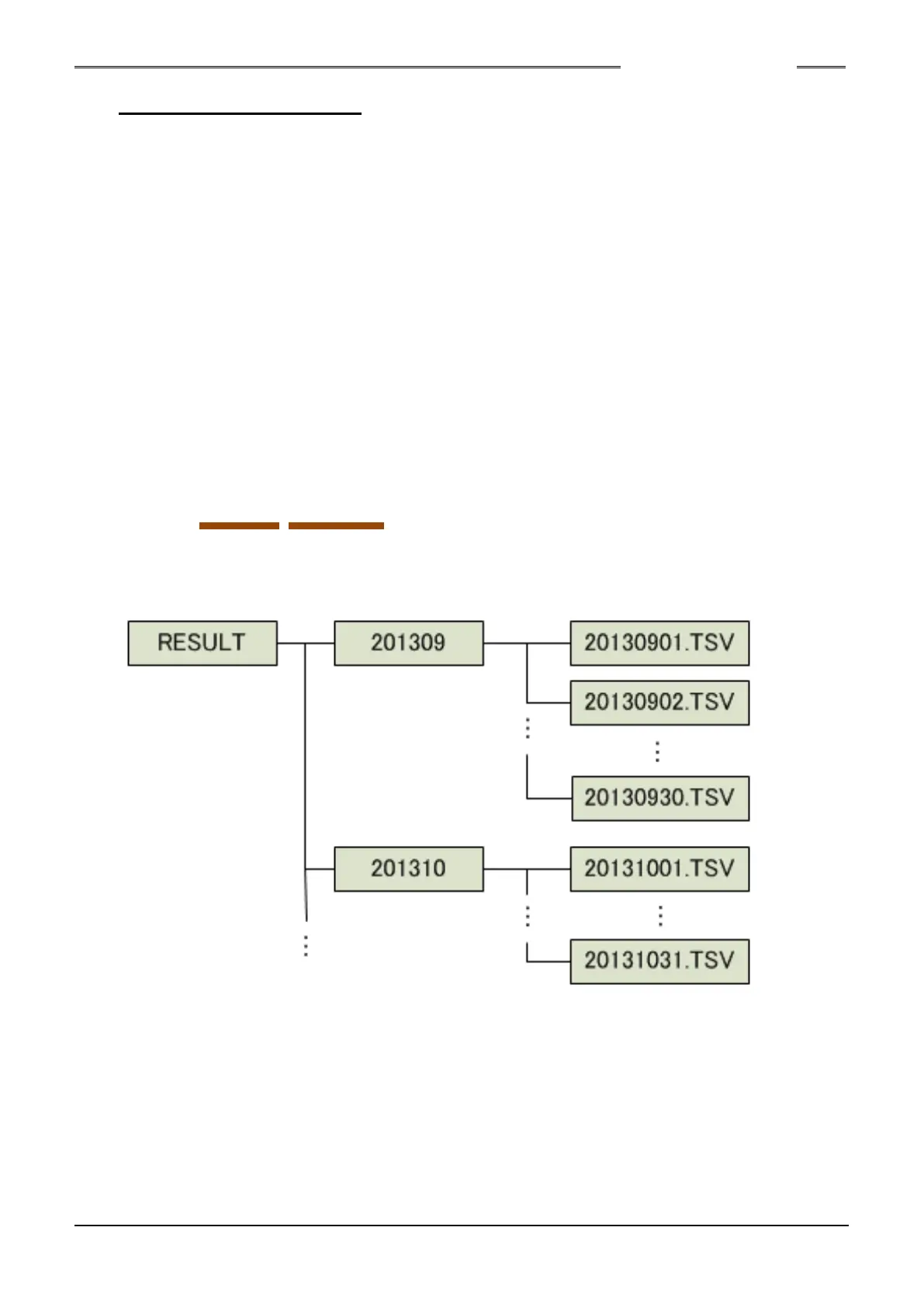

The fastening results are stored in the “RESULT” folder, which is generated automatically. Inside
the “RESULT” folder, folders, each with a name expressing the year and month, such as “201309,”
are generated automatically and a folder is automatically generated in the manner of “201310,”
“201311,” “201312,” etc., at each turn of the month or year.
Inside the “201309” folder, the following file is stored at the end of the fastening operation.
RESULT¥YYYYMM¥YYYYMMDD.TSV (TSV format file)
Year/Month Year/Month/Day
The fastening results for a single day are stored in each file. When the date of generation changes,
a file is automatically generated in the same folder.
