3-1. Controller Unit

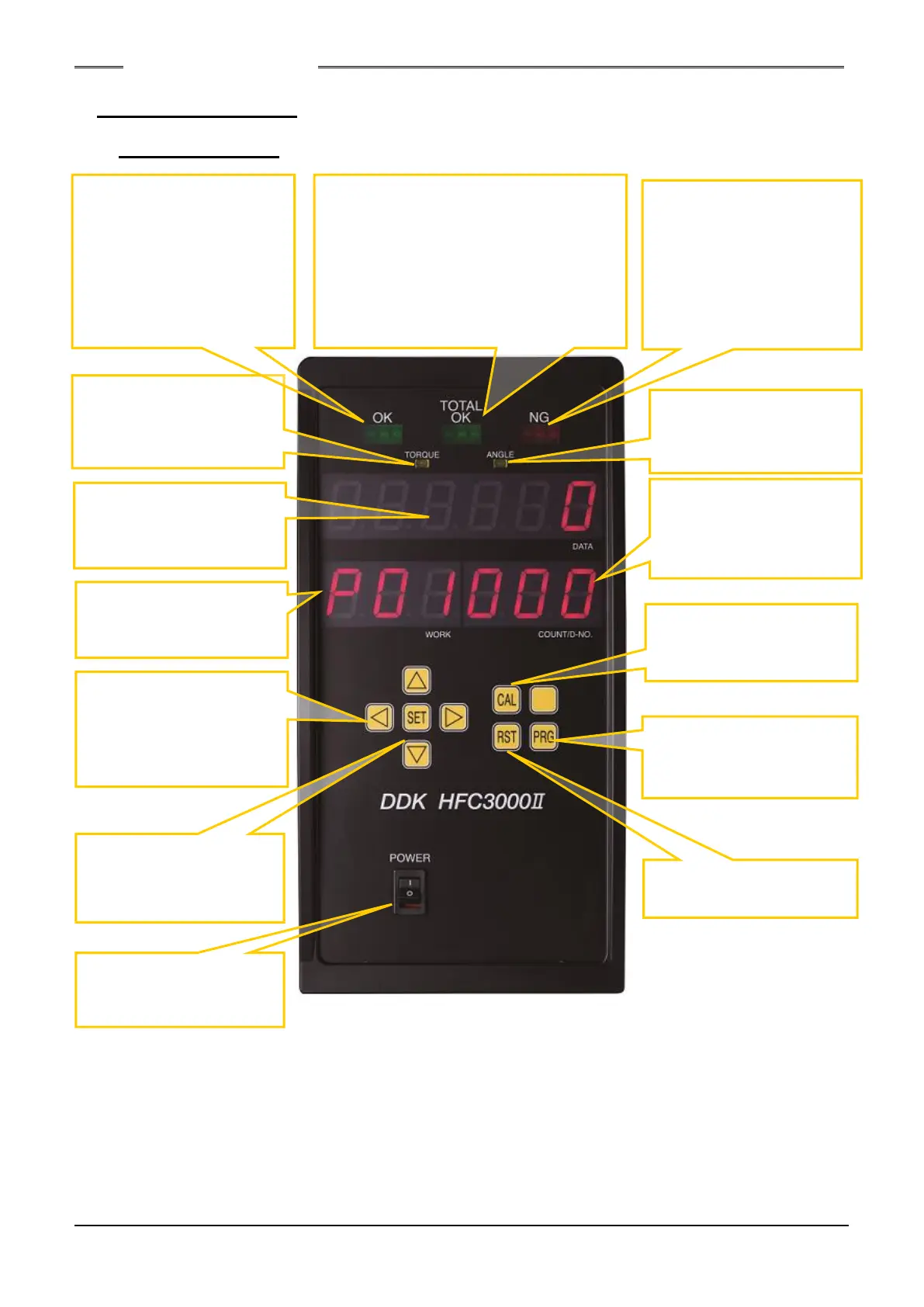

3-1-1. Front Panel
POWER
Controller main power
switch
CAL
Manual calibration check
pushbutton
RST
Reset pushbutton
PRG
Program mode select
pushbutton
SET
Switch for finalizing a
change of data
◁▷▵▿
Selection switches for
WORK, parameter, and
data setting.
NG (REJECT)
Lights up when even one
of the preset judgment
criteria is not met by the
fastening results.
ANGLE
Lit up in the fastening
angle result display
mode.
TORQUE
Lit up in the fastening
torque result display
mode.
6-dight 7-segment LED
Displays a set value,
fastening result, or other
data.
3-dight 7-segment LED
Displays the WORK No.
(parameter).
3-digit 7-segment LED
COUNT/D-No.
Displays the cycle count
and the data No.
TOTAL OK
Lights up when acceptable (OK) Turns
on when fastening results are obtained
for the designated number of times. and
turns off when the batch reset input
signal is ON.
Flashing a patch sequence operation is
finished
OK (ACCEPT)
Lights up when the fastening
results are within the
standard value ranges of all
preset judgment criteria, and
flashes while TOTAL OK is
ON.
