DDK HFC3000II - Description of the Hardware

Chapter 9 External Interface
PAGE 9-10
9-2-2. Description of the hardware
●EDS File
An EDS file is an information file related to the communication specifications of EtherNet/IP-compatible
device and a separate, individual file exists for each device. The EDS file is necessary for using the
EtherNet/IP configuration software to connect the MFC-EN and the PLC.
The EDS file is included in the installation CD for the HFC3000II Manual. Please refer to the instruction
manual for the EtherNet/IP configuration software concerning the appropriate method for using the EDS file.

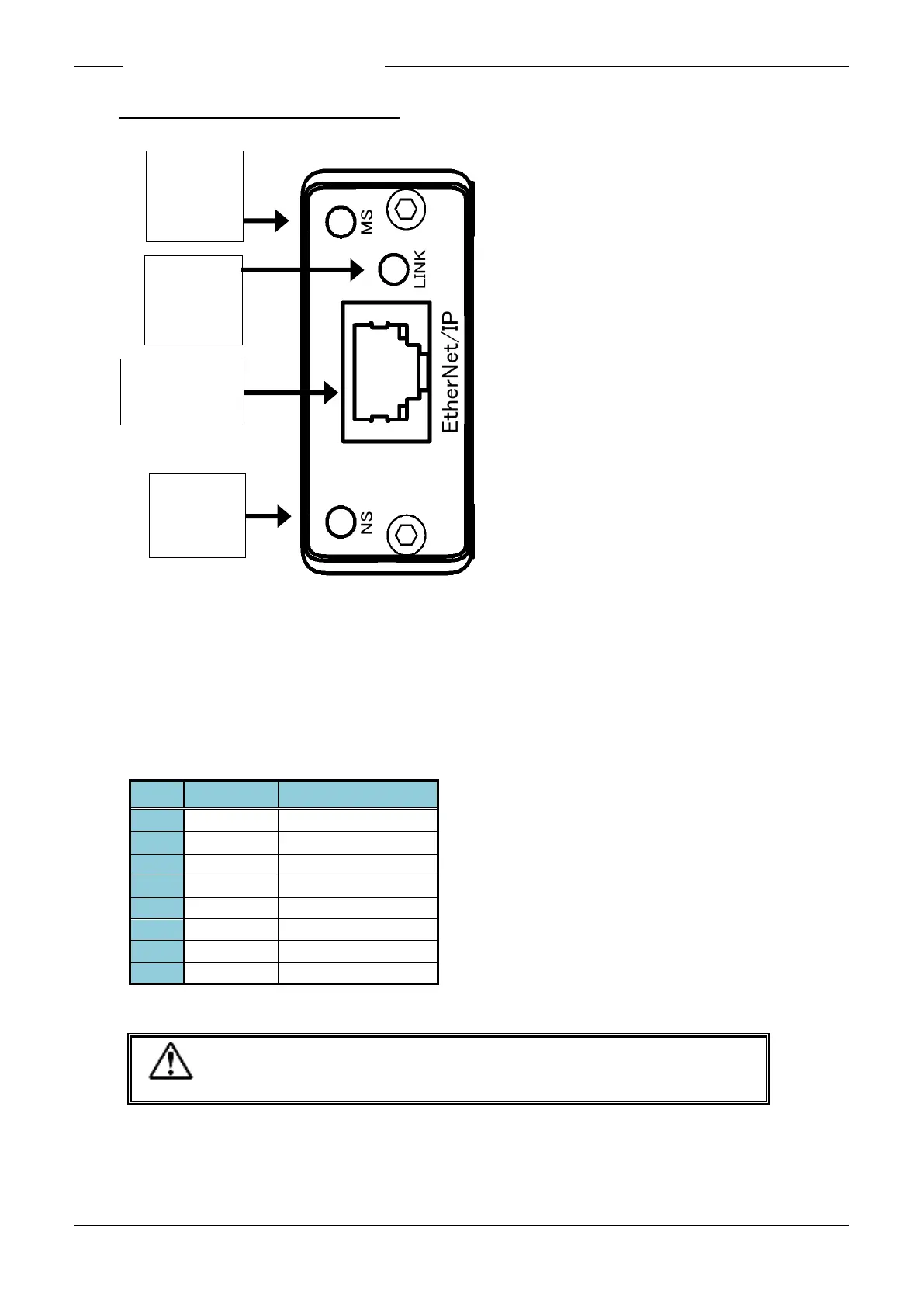

●Module Pin Configuration
No.
Signal
Description
1
TD+
Send data +
2
TD-
Send data -
3
RD+
Receive data +
4
-
Not used
5
-
Not used
6
RD-
Receive data -
7
-
Not used
8
-
Not used
* The cable is not included with the equipment. Please prepare a LAN cable of Category 5e or higher on your own.
・Be sure to connect the cable with all power turned OFF.
Module
Status
LED
Network
Status
LED
EtherNet/IP
connector
Link/
Activity
LED
Caution
