DDK HFC3000II - Description of the Hardware

Chapter 9 External Interface
PAGE 9-29
9-6-2. Description of the Hardware
● GSDML File
A GSDML file is an information file related to the communication specifications of PROFINET IO-compatible
device and a separate, individual file exists for each device. The GSDML file is necessary for using the
PROFINET IO configuration software to connect the MFC-PN and the PLC.
The GSDML file is included in the installation CD for the HFC3000 Manual. Please refer to the instruction
manual for the PROFINET IO configuration software concerning the appropriate method for using the GSDML
file.

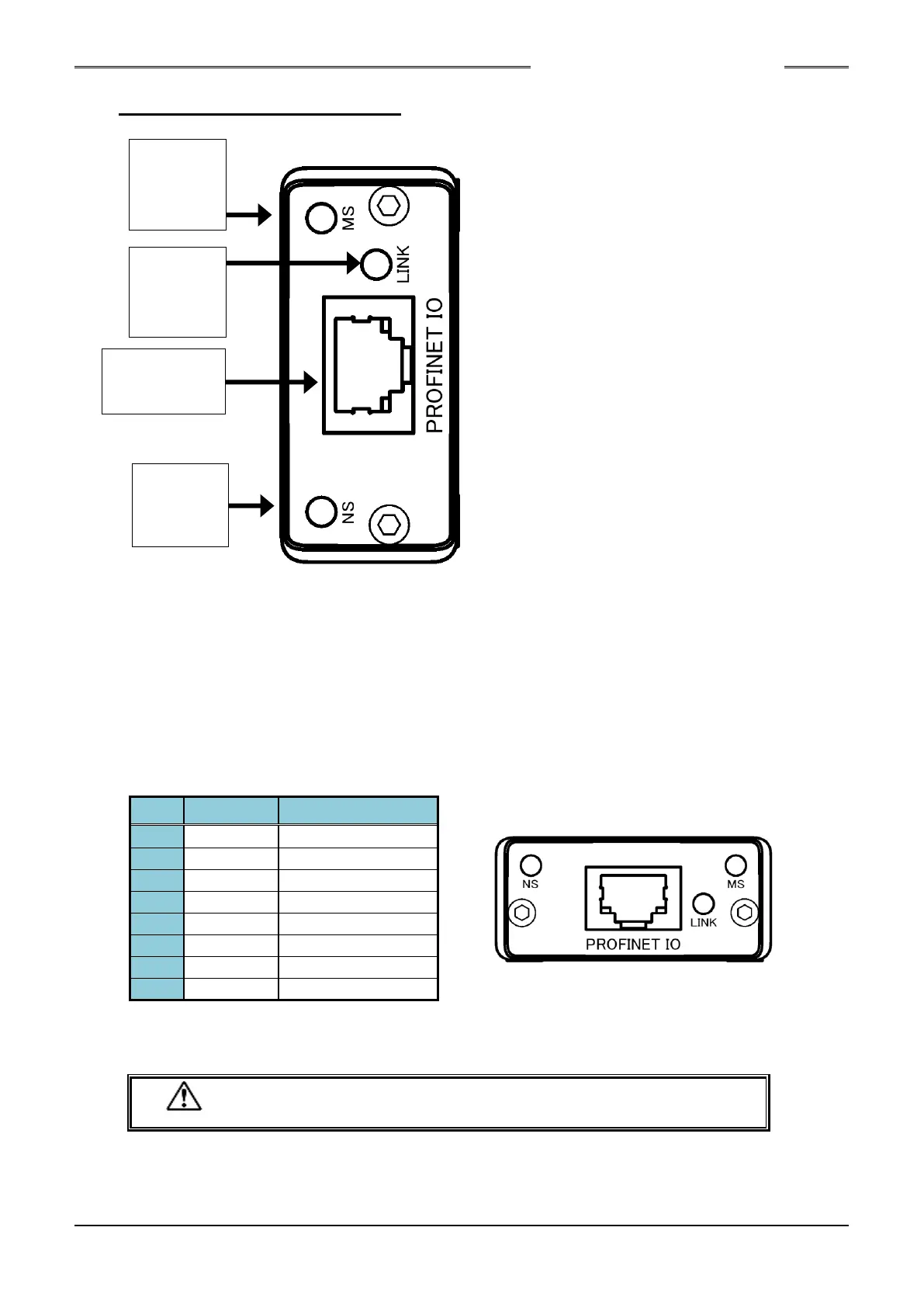

● Module Pin Configuration
No.
Signal
Description
1
TD+
Send data +
2
TD-
Send data -
3
RD+
Receive data +
4
-
Not used.
5
-
Not used.
6
RD-
Receive data -
7
-
Not used.
8
-
Not used.
* The cable is not provided with the equipment. Please prepare a LAN cable of Category 5e or higher on your
own. equipment. Please prepare these on your own.
･ Be sure to connect the cable with all power being OFF.
Module
Status
LED
Network
Status
LED
PROFINET IO
Connector
Link/
Activity
LED
Caution
1 8
S0140185-H
