Chapter 6 Description of Operations
PAGE 6-17
Also, during the fastening operation, the operation speed and the fastening step state are indicated.
In the indication during the fastening operation, the parameter No. (01~ 64) that is currently put in
operation is indicated in the WORK indication part. The mode cannot be changed in the indication
during the fastening operation.
Transition to the fastening result mode is performed automatically after the fastening ends.
The following are indication examples during a fastening operation of parameter No. 1.

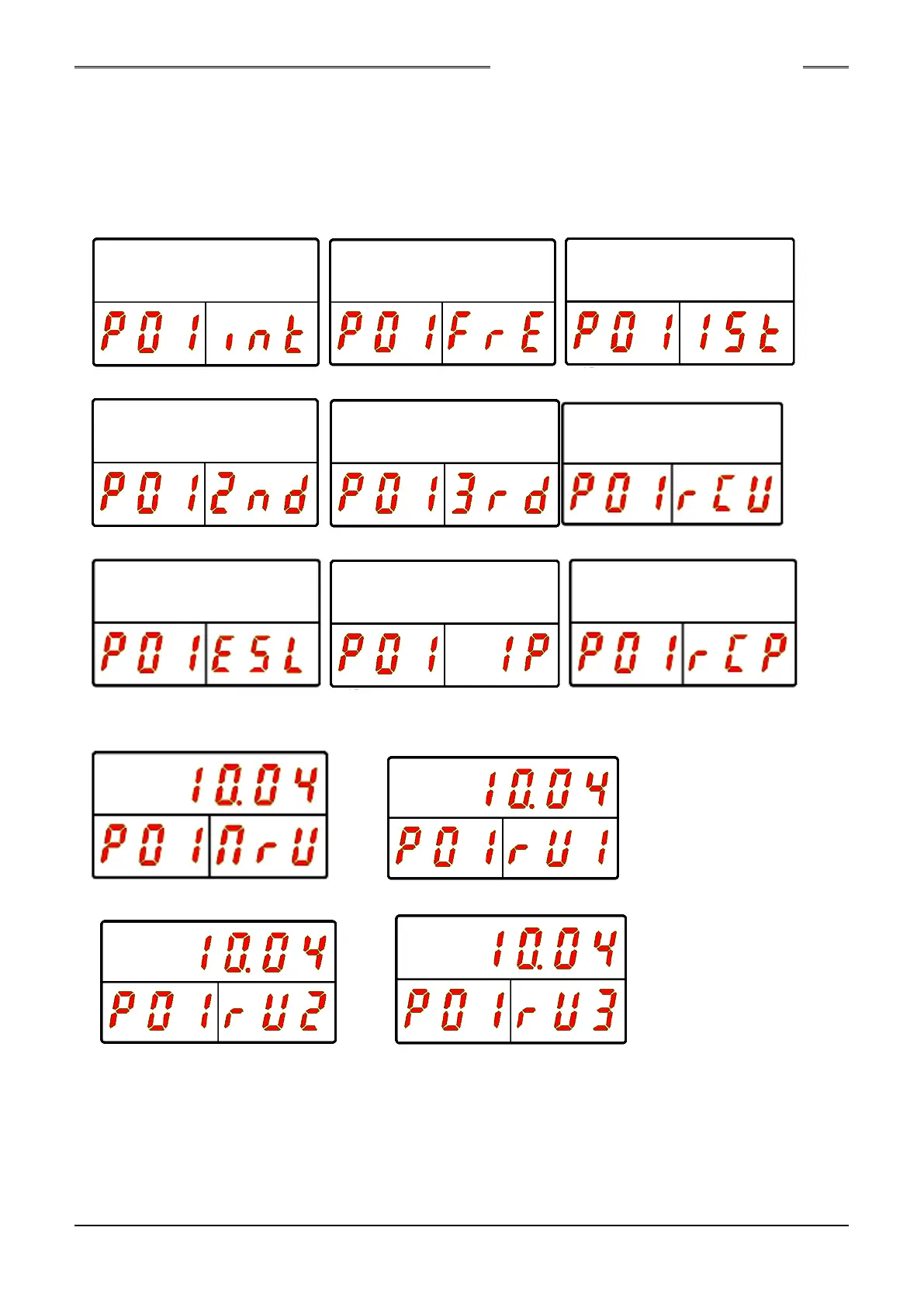

■During initial speed operation ■During freerun speed operation ■During 1st speed operation
■During 2nd speed operation ■During 3rd speed operation ■Torque recovery in progress
■
Reduce Fastening Reaction in progress
■1 Pulse Reverse in progress ■
During Recovery Pulse speed operation
*The indication content of the upper stage of the indicator is maintained during reverse operation.
■Manual reversing in progress ■During Reverse Before Fastening
■
During Reverse Speed Between
1-2step
■
During Reverse Speed Between
2-3step
