Chapter 6 Description of Operations
PAGE 6-76

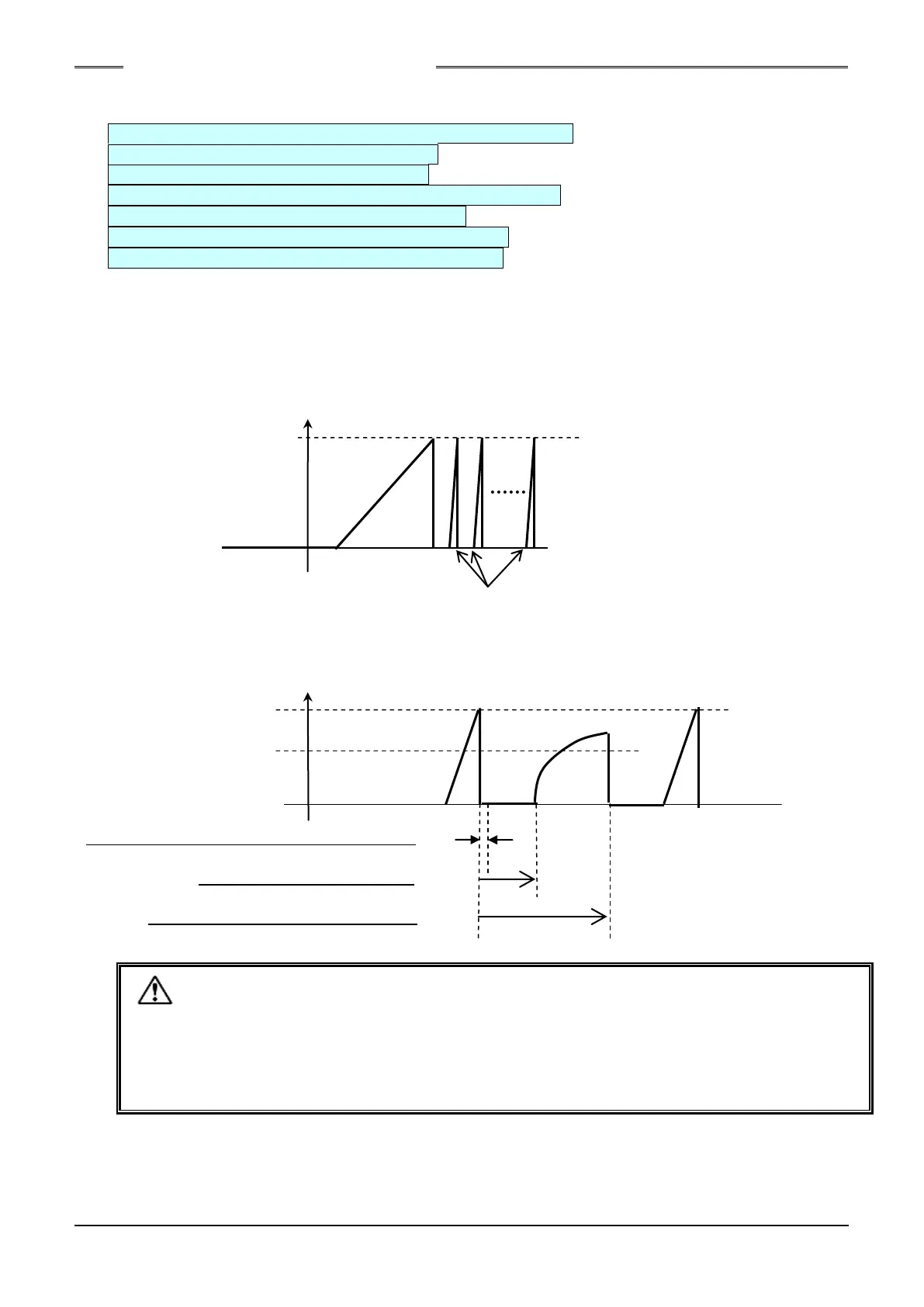

(9) Recovery pulse operation
D-No.005 After Fastening Operation: Recovery Pulse ON Set value: xxxx1x
D-No.550 Recovery Pulse Count [times] Setting range: 0~50
D-No.551 Recovery Pulse Speed [rpm] Setting range: within tool speed range
D-No.552 Pulse Fastening StopServo Lock Time [msec] Setting range:0 ～ 200
D-No.553 PulseFastening Wait Time [msec] Setting range:0 ～ 200
D-No.554 PulseFastening Operation Time [msec] Setting range:0 ～ 200
D-No.556 PulseFastening Ramp Up Time [msec] Setting range:2 ～ 100
By setting “1” for Recovery Pulse Operation ON as Data No. 005 After Fastening
Operation, refastening is performed for the number of times defined by the recovery
pulsing count (D-No. 550) after fastening to the standard torque (D-No. 103).
Operation speed: Recovery pulsing speed (D-No. 551)
550: Recovery Pulsing Count 0~50 times
551: Recovery Pulsing Speed [rpm]
【 Notes on Recovery pulse operation 】
● Be sure to set the parameters so that [PulseFastening WaitTime] > [PulseFastening
WaitTime].
●If the Standard torque is not reached within the operating time, extend the operation
time until 1ST torque is detected. D-No 314 [2nd Time High Limit] until 1ST torque is
detected, The Spindle judgment becomes REJECT.
552: Pulse Fastening StopServo Lock Time
553:PulseFastening WaitTime
554: Pulse Fastening Operation Time
S0140185-H
To Next Page
