Chapter 6 Description of Operations
PAGE 6-82

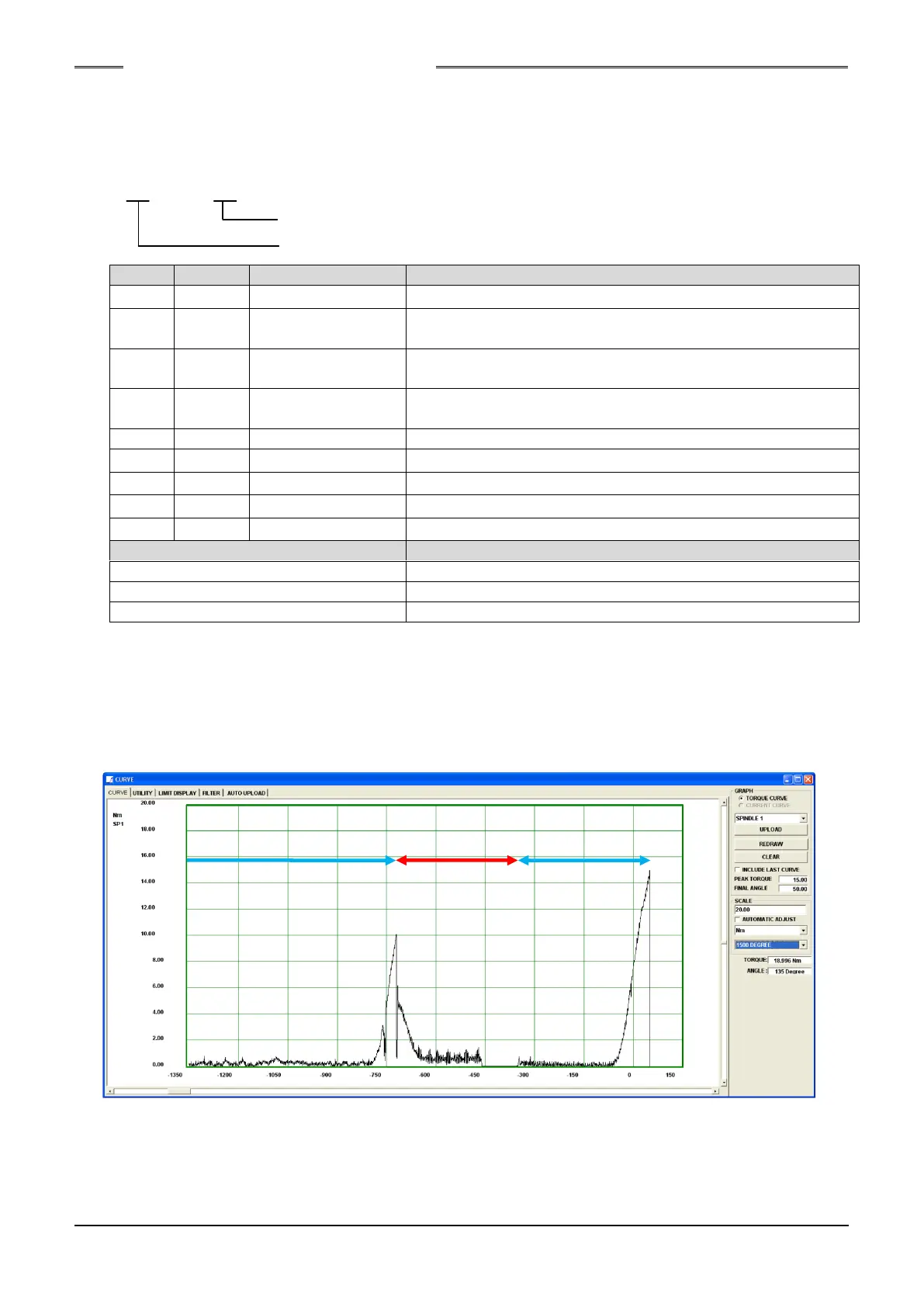

<Program Examples2>
Automatic Function:
For each stage, six digits of data are used to designate the parameter No. and the Dwell time.
0 1 . 0 0 . 0 5
Stage
D-No.
Data
Operation
-
580
2(3): Continuous
The continuous sequence is executed.
1
581
01.00.05
Fastening by parameter 1 is performed and followed by
an intermission of 0.5 seconds.
2
582
02.00.03
Fastening by parameter 2 is performed and followed by
an intermission of 0.3 seconds.
3
583
03.00.00
Fastening by parameter 3 is performed and judgment is
made (the intermission time is ignored).
4
584
00.00.00
The continuous sequence is ended.
5
585
00.00.00
-
6
586
00.00.00
-
7
587
00.00.00
-
8
588
00.00.00
-
Parameter No.
Operation
1
Fastening 10Nm
2
Loosening operation (angle method, CCW -360 degrees)
3
Fastening 15Nm
*2: In the Continuous 1 mode, if when the lever is set to off in the middle to interrupt the
sequence, an NG (failure) judgment is not made, the sequence is ended without
judgment (the fastening results are not generated).
*3: In the Continuous 2 mode, when the lever is set to off in the middle to interrupt the
sequence, the sequence is ended with an NG judgment.
Parameter 1
Parameter 2
Parameter 3
Fastening parameter No.
The Dwell time
S0140185-H
