Chapter 9 External Interface
PAGE 9-14

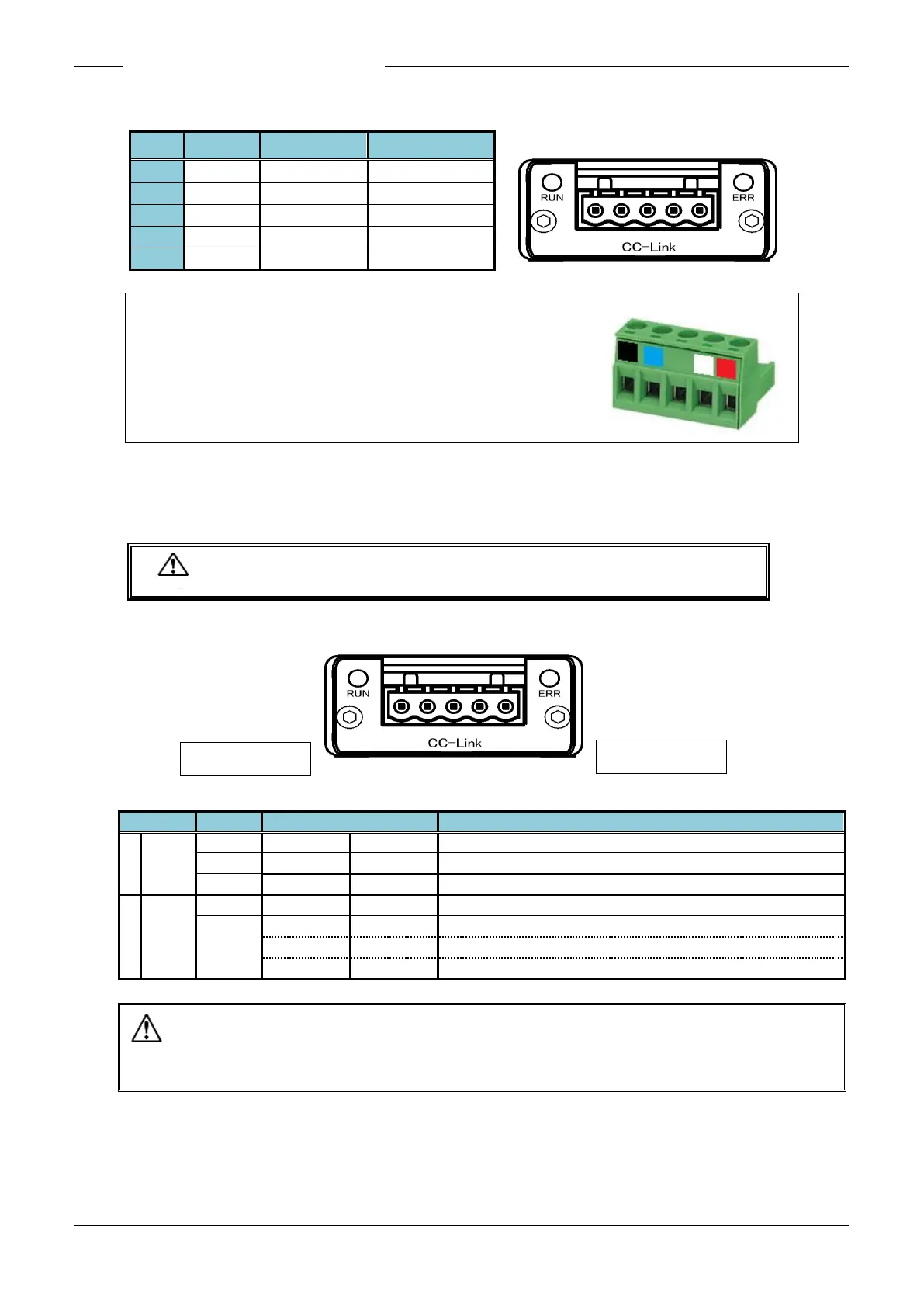

● Module Pin Configuration
Manufacturer: Phoenix Contact
Type: Connector plug
Model: MSTB 2.5/5-ST-5.08 AU M
Applicable wire size: AWG 14 ~ 23 or 0.25mm
2
~ 2.5mm
2
* The connector is provided with the equipment.
Please prepare the cable on your own.
However, the compatible wire size and recommended rod terminals (ferrules) are as follows.
･ Compatible wire size ･･･ AWG 23 ~ 14 (0.25mm
2
~ 2.5mm
2
)
･ Recommended rod terminals (ferrules)
･･･ Model: AI 2,5-6 WH (Phoenix Contact)
･ Be sure to connect the cable with all power being OFF.
Also, the module LEDs indicate the states of the nodes of the HFC3000 CC-Link System and the network
state.
● List of LED Indications
Power is not supplied or connection is unestablished.
A critical error has occurred.
A critical error has occurred.
A cyclic redundancy check (CRC) error has occurred.
Station No. or baud rate setting is changed after power on.
･ Even if there is no problem with the display of LED (ex. RUN LED: green Lits up, ERR LED:
off), if the Handshake should be mounted on the PLC side as system area, the HFC3000
CC-LINK system can not communicate. (PAGE9-16)
S0140185-H
