Dell DD9410 - Install the CMA Attachment Brackets on the Left Rails; Install the CMA Attachment Brackets on the Right Rails

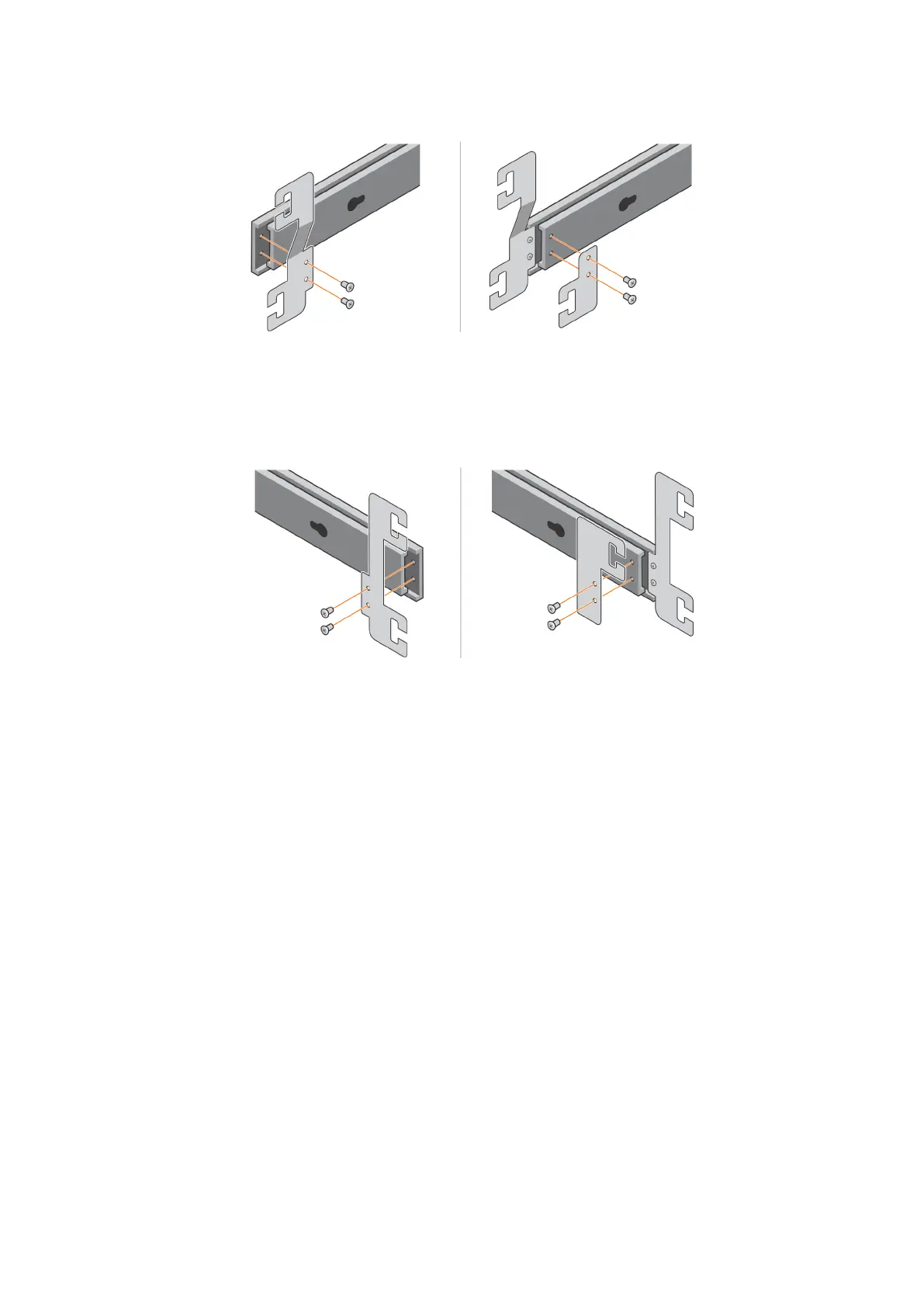

Figure 21. Install the CMA attachment brackets on the left rails
2. Install two CMA attachment brackets on the right rails as shown in the following figure:
Figure 22. Install the CMA attachment brackets on the right rails
3. Install the upper CMA:
a. On the right side of the rear of the enclosure, align the two connectors on the CMA with the attachment brackets on the
rails.
b. Insert the CMA connectors into the brackets until you hear an audible click.
c. Swing the extension arm and align it with the left rail bracket. Insert the connector on the CMA to the attachment
bracket on the left rail.
30
Install the Disk Shelves in the Rack
