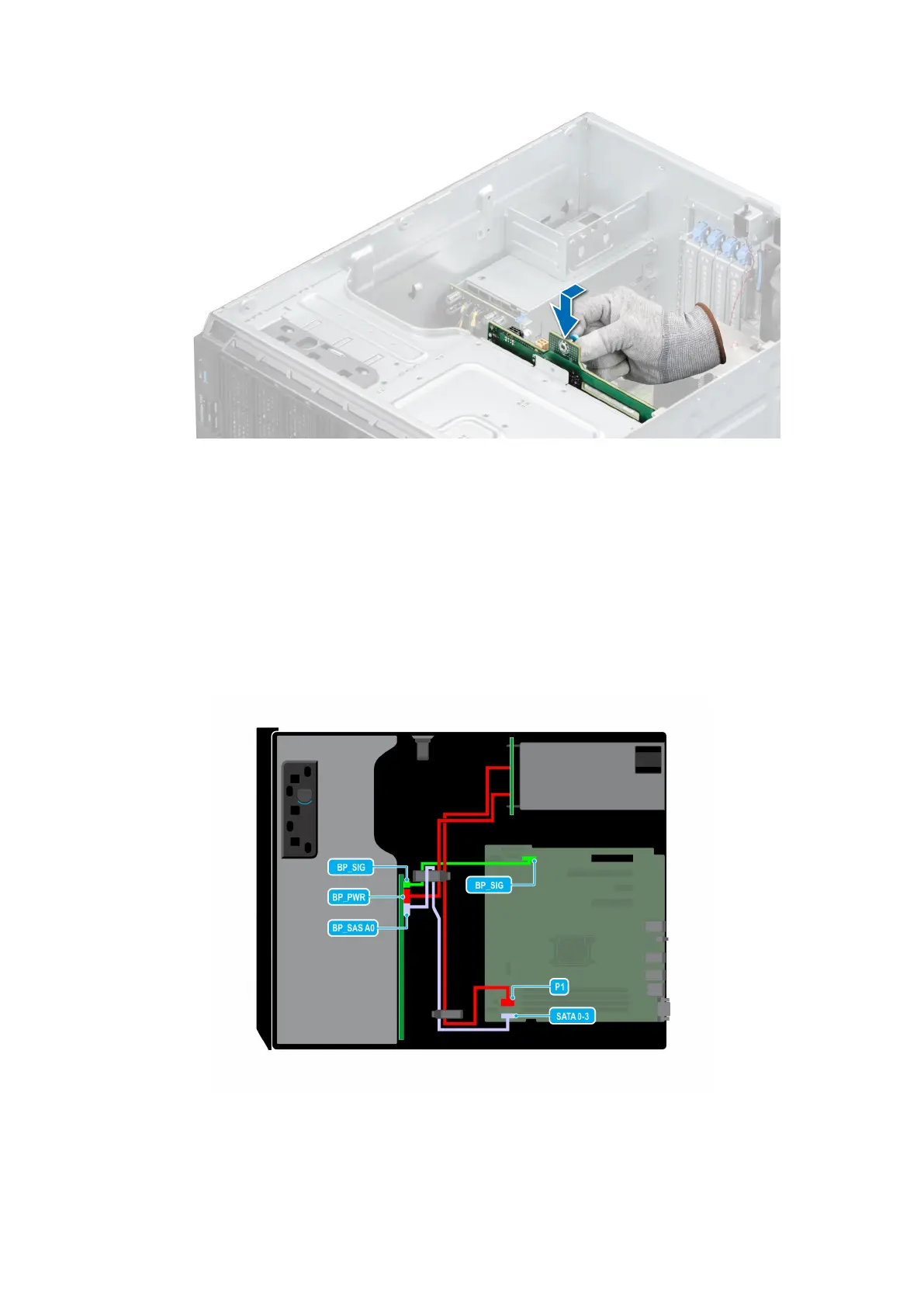

Figure 46. Installing the drive backplane
Next steps
1. Install the air shroud.
2. Install the drives.
3. Install the front bezel.
4. Follow the procedure listed in After working inside your system.
Backplane cable routing
Figure 47. Cable routing - 8 x 3.5-inch, SATA drive backplane
50
Installing and removing system components
