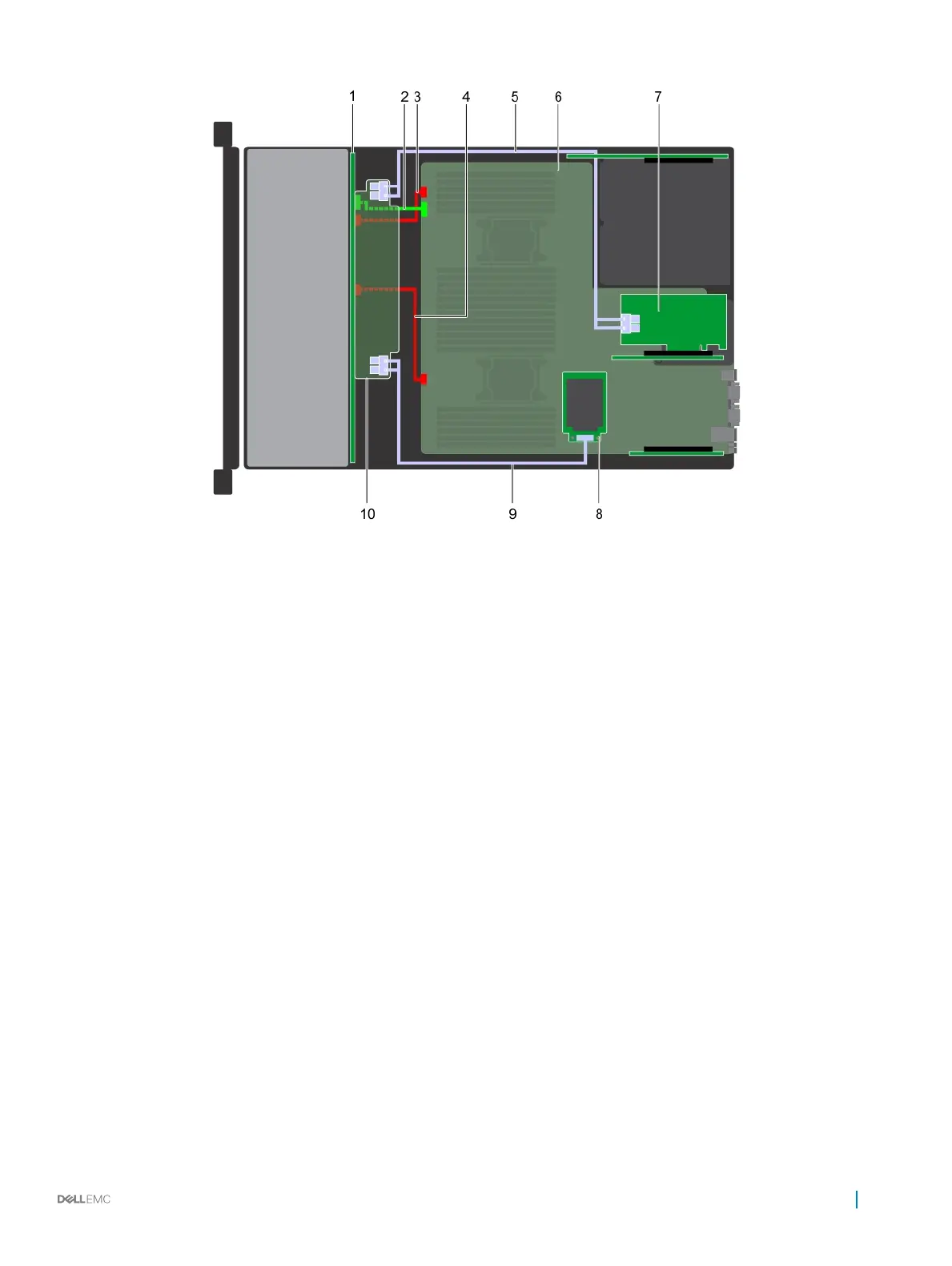

Figure 131. Cable routing – 24 x 2.5 inch drive backplane with mini PERC and adapter PERC
1
backplane 2 backplane signal cable
3 backplane power cable A 4 backplane power cable B
5 SAS cable 6 system board
7 adapter PERC 8 mini PERC
9 SAS cable 10 backplane expander
