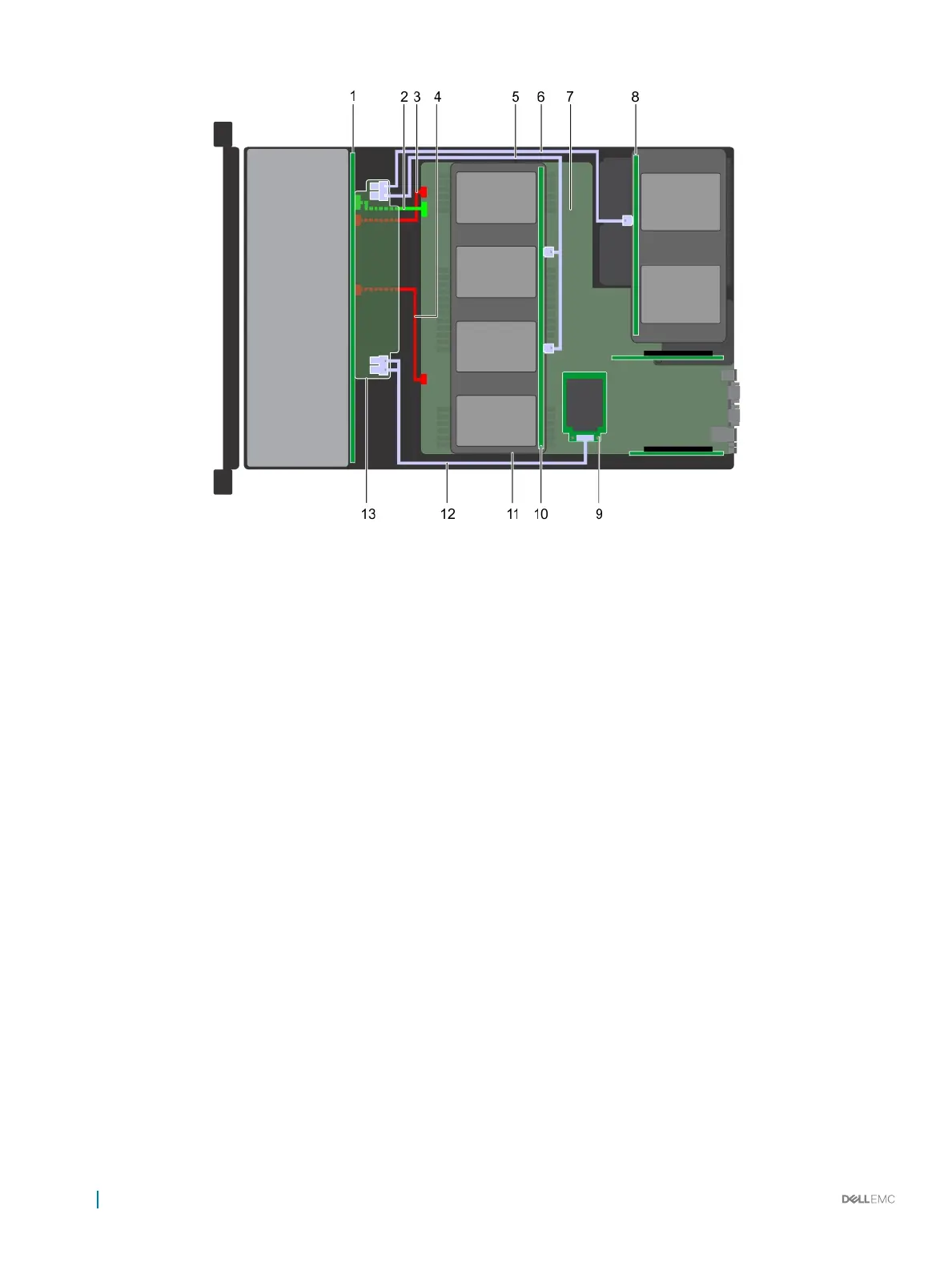

Figure 132. Cable routing – 24 x 2.5 inch drive backplane with 4 x 3.5 (with 4 x 2.5 adapter) mid drive tray and 4 x 2.5 rear drive cage
1
backplane 2 backplane signal cable
3 backplane power cable A 4 backplane power cable B
5 SAS cable 6 SAS cable
7 system board 8 rear drive backplane
9 mini PERC 10 mid drive backplane
11 4 x 3.5 (with 4 x 2.5 adapter) inch drives 12 SAS cable
13 backplane expander
