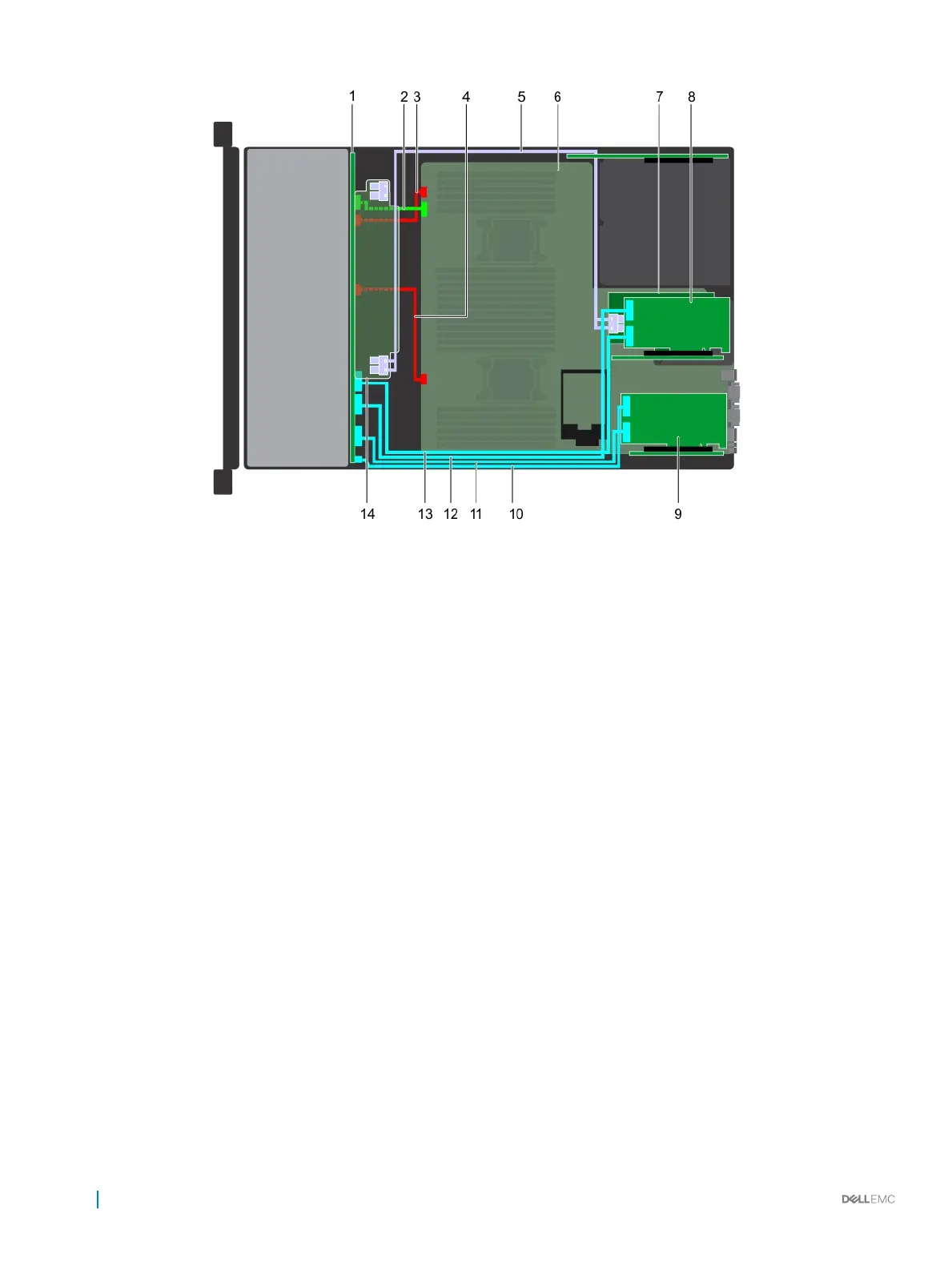

Figure 134. Cable routing – 24 x 2.5 inch drive backplane with 16 SAS plus 8 PCIe and adapter PERC
1
backplane 2 backplane signal cable
3 backplane power cable A 4 backplane power cable B
5 SAS cable 6 system board
7 adapter PERC on riser 2A (slot 6) 8 PCIe card 1 on riser 2A (slot 4)
9 PCIe card 2 on riser 1A (slot 1) 10 PCIe cable A of PCIe card 2
11 PCIe cable B of PCIe card 2 12 PCIe cable A of PCIe card 1
13 PCIe cable B of PCIe card 1 14 backplane expander
176 Installing and removing system components
