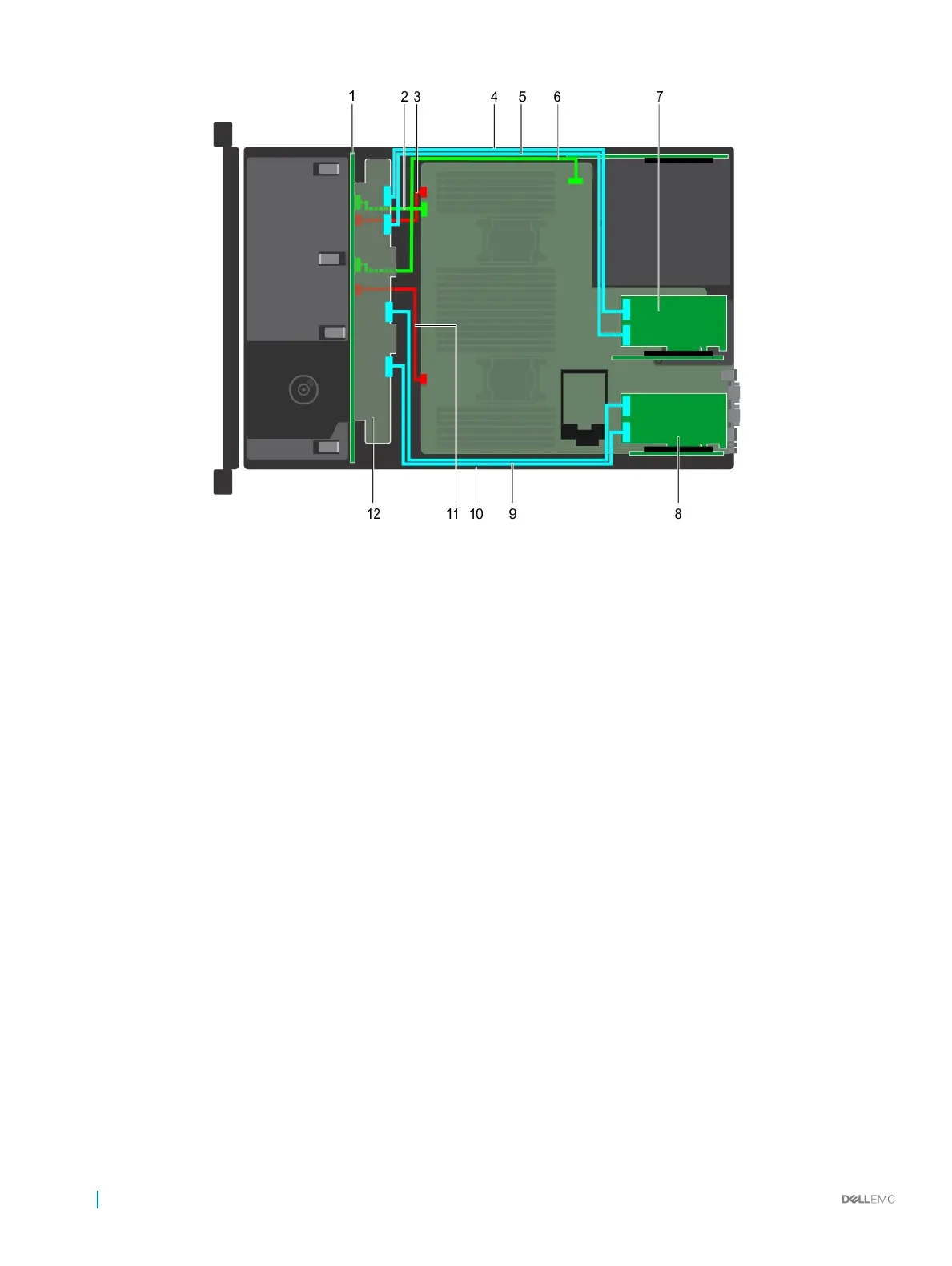

Figure 136. Cable routing – 24 x 2.5 inch NVMe drive backplane
1
backplane 2 backplane signal cable A
3 backplane power cable A 4 PCIe cable A (PE2_A)
5 PCIe cable B (PE2_B) 6 backplane signal cable B
7 PCIe card on riser 2 (slot 4) 8 PCIe card on riser 1 (slot 3)
9 PCIe cable A (PE1_A) 10 PCIe cable B ( PE1_B)
11 backplane power cable B 12 backplane expander
178 Installing and removing system components
