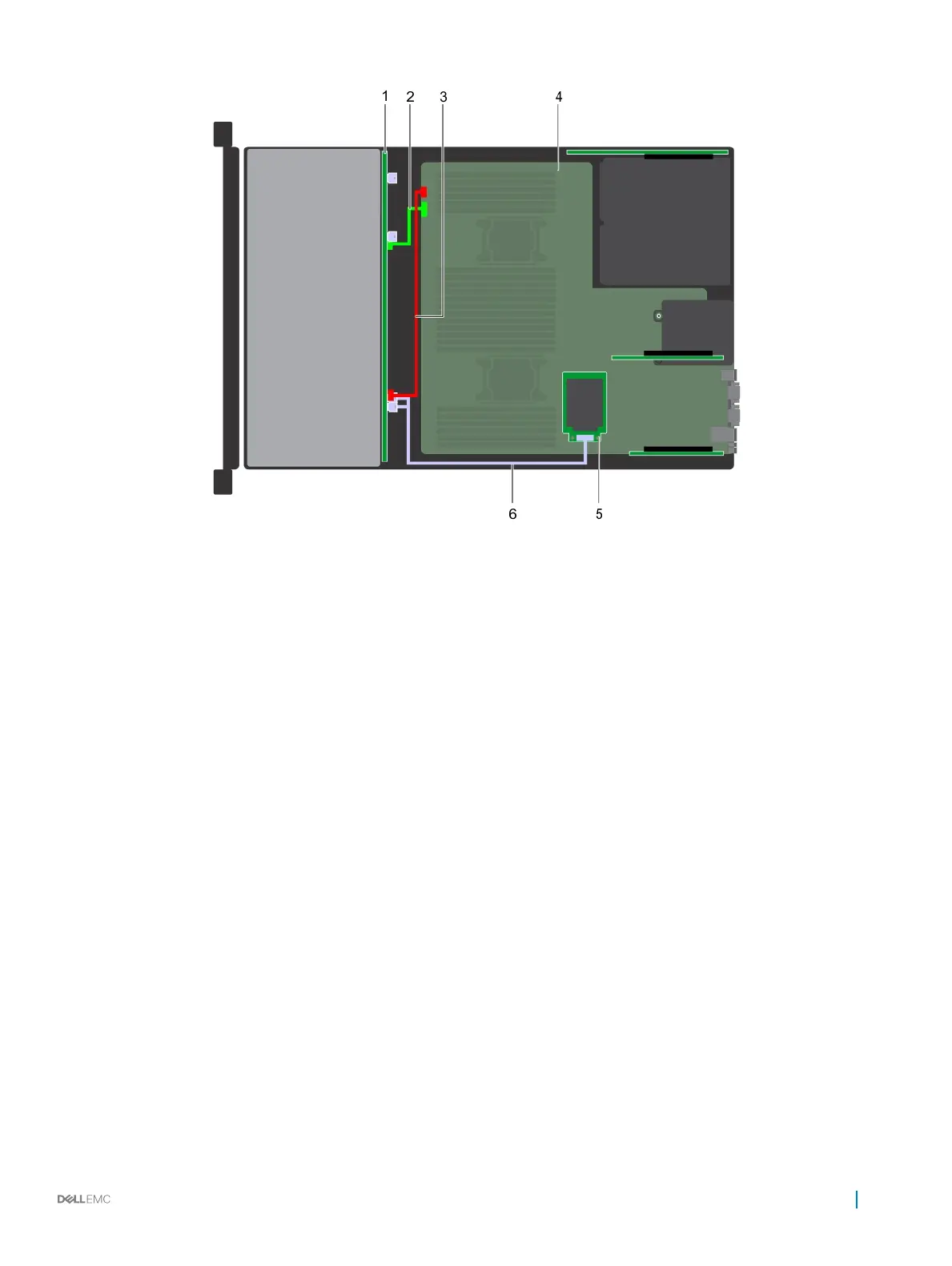

Figure 137. Cable routing – 12 x 3.5 inch drive backplane with mini PERC
1
backplane 2 backplane signal cable
3 backplane power cable 4 system board
5 mini PERC 6 SAS cable
Installing and removing system components 179
