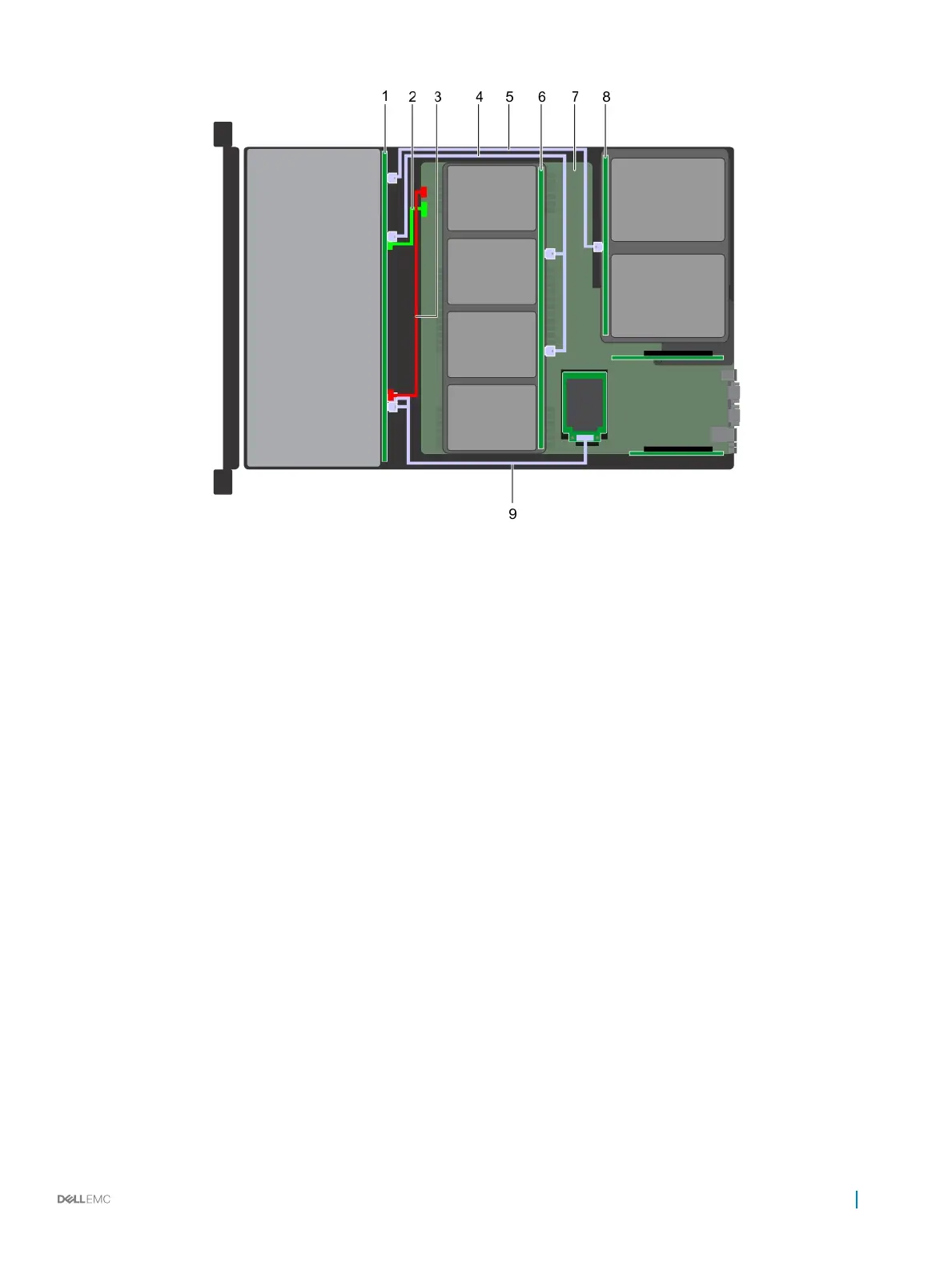

Figure 139. Cable routing – 12 x 3.5 inch drive backplane with 4 x 3.5 mid drive tray and 2 x 3.5 rear drive cage
1
backplane 2 backplane signal cable
3 backplane power cable 4 SAS cable
5 SAS cable 6 mid drive backplane
7 system board 8 rear drive backplane
9 SAS cable
Installing and removing system components 181
