Dell PowerEdge R740xd - Page 182

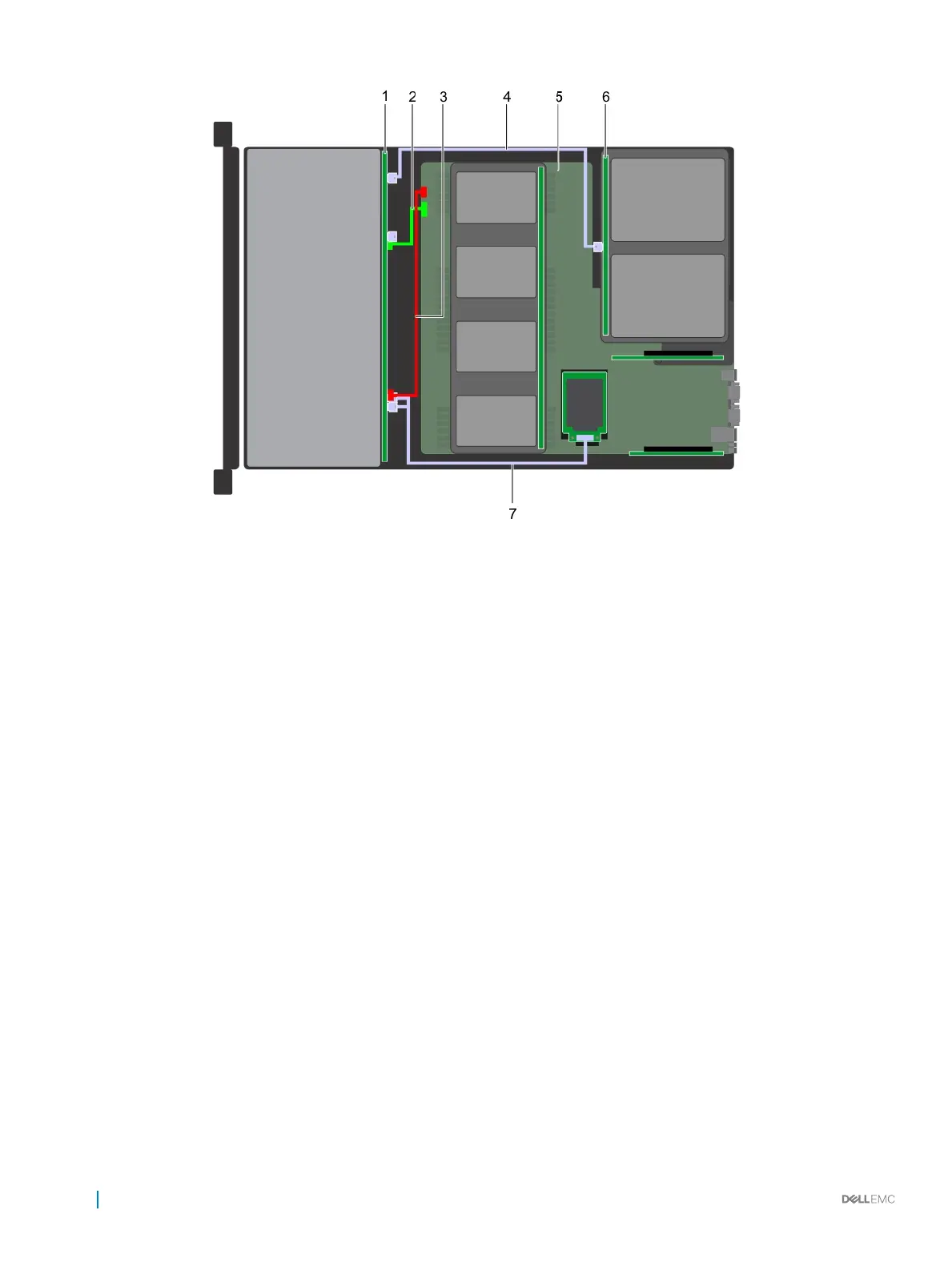

Figure 140. Cable routing – 12 x 3.5 inch drive backplane with 4 x 2.5 mid drive tray and 2 x 3.5 rear drive cage
1
backplane 2 backplane signal cable
3 backplane power cable 4 SAS cable
5 system board 6 rear drive backplane
7 SAS cable
182 Installing and removing system components
