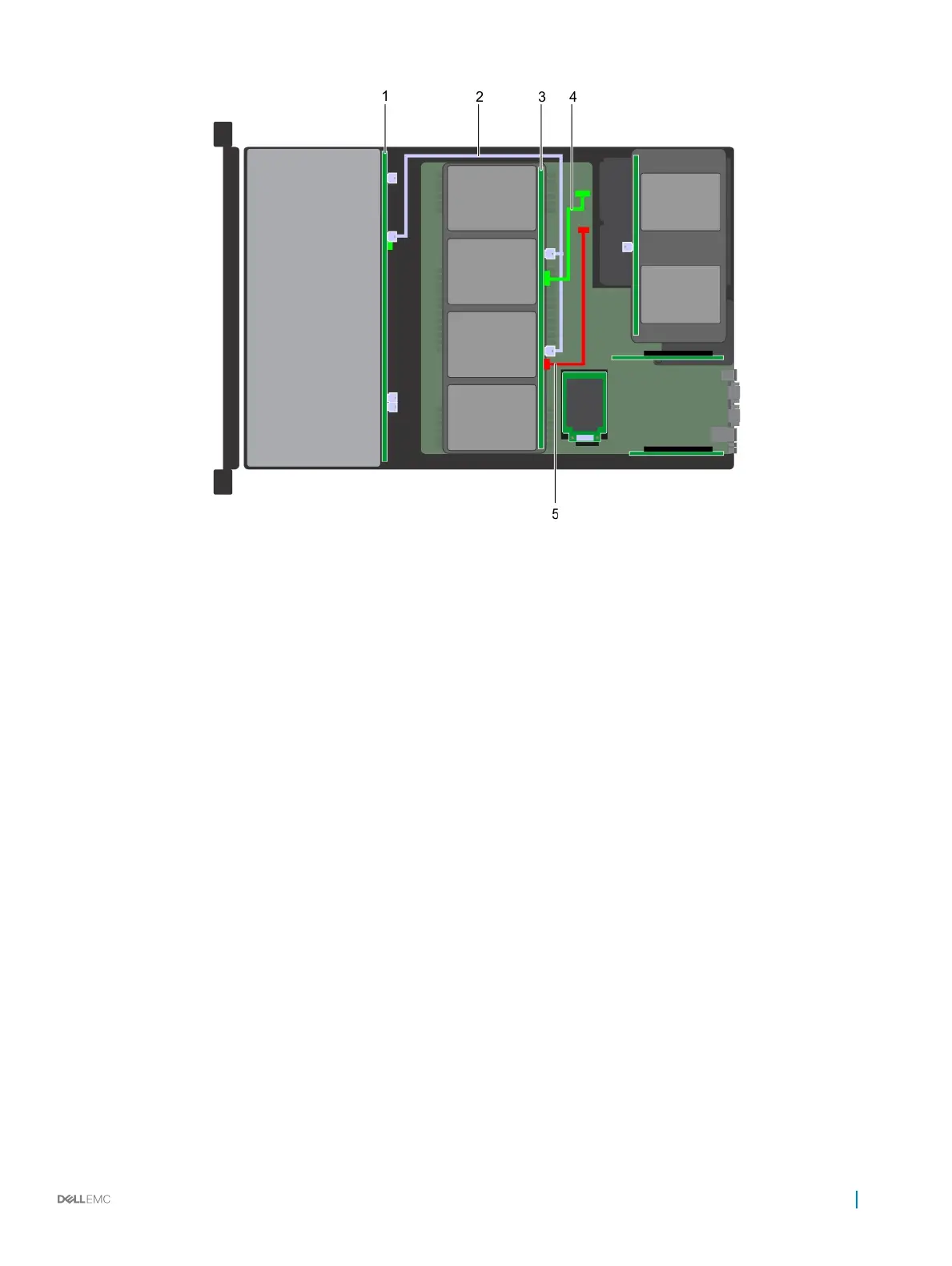

Figure 141. Cable routing – 4 x 3.5 mid drive backplane with 12 x 3.5 inch drive backplane
1
backplane 2 SAS cable
3 mid drive backplane 4 mid backplane signal cable
5 mid backplane power cable
Installing and removing system components 183
