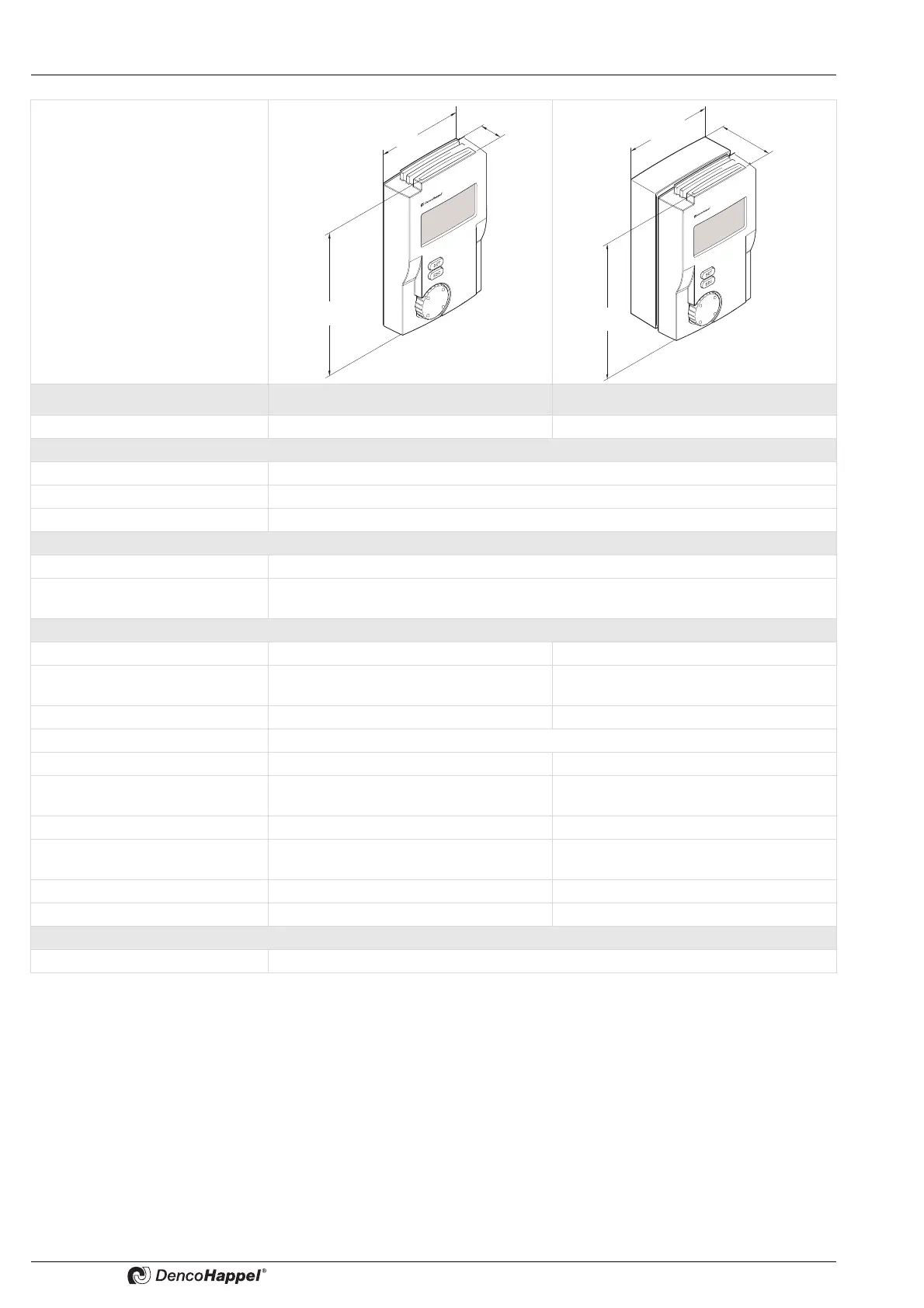

Technical Description MATRIX Control Panel OP71
12 PR-2009-0021-GB • Subject to modifications • R5-04/2016
Type series OP71C (comfort) OP71I (industry)
Area of application Comfort area Industrial area
Ambient conditions
Allowed ambient temperature 0 °C to 45 °C
Allowed storage temperature -10 °C to 65 °C
Allowed relative humidity 15% to 75% no condensation
Electromagnetic compatibility
Electromagnetic interference (EMI) according to DIN EN 55022/DIN EN 61000
Electromagnetic interference
shielding (EMS)
according to DIN EN 61000
Mechanical data
External dimensions (W/H/D) 83 x 135 x 30 mm 83 x 135 x 55 mm
Fixation directly on the wall or socket for flush moun-
ting
on the wall
Weight 184 g 248 g
Casing material N185 Noryl UL 94 V-0
Casing front panel similar to RAL 9016 (traffic white) similar to RAL 7035 (light grey)
Casing rear section (if necessary
surface-mounted socket)
similar to RAL 9016 (traffic white) similar to RAL 7016 (anthricite)
Pushbutton similar to RAL 7074 (telegrey 4) similar to RAL 7016 (anthricite)
Protection type (according to DIN
40050)
IP20 IP54
Application position installed vertically installed vertically
Cable entry point from behind from behind via 3 membranegrommets M16
Electrical data
Supply voltage Through power supply of the unit
