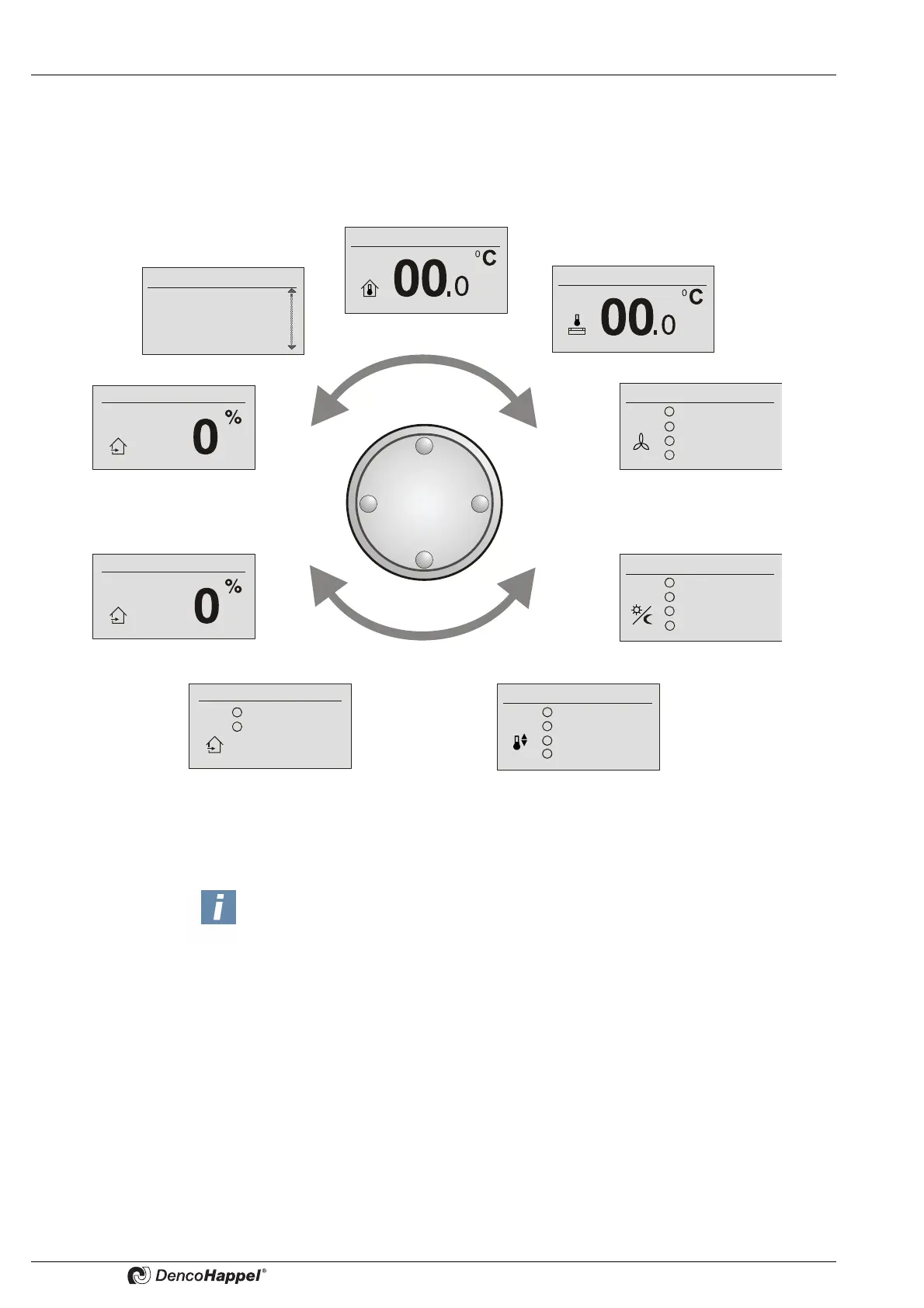

8.3.2 Basic menu "all clusters"
Using the "all clusters" menu you can access basic menus in the cluster level.However,
the basic menus in the cluster level do not contain updated setpoints. Setpoints that
can changed as digits are shown as 0 and with the selection buttons no buttons are
selected.
All setpoints, that are entered in the menu "all clusters" apply to all configured clusters
without further entries (See page 85). These setpoints will be automatically copied in
the following basic menus of the cluster level in the subordinated cluster. Previous ent-
ries are then overwritten.
Other menus
Actual values
Configuring
Outdoor-air volume flow
Outside air automatic
Mixing-air damper position
Operating mode
Standby
Normal mode
Economy mode
Clock timer
Controller mode
Heating only
Cooling only
Automatic
Free cooling
Fan mode
Off
Automatic
Automatic mute
Stage
Recirculating air
Mixed air
Room temperature
Supply air temp. setp.
NOTICE!
Information and status lines are not displayed.
