You can change the room temperature setpoint in this menu for the
current operating mode:
• Change the room temperature setpoint as described in „Changing values“ on
page 41.
8.6.2 "Setpoint supply air temperature"
The submenu for the supply-air temperature setpoint is displayed only if the menu
<Name>Menu enabling for ... (see page 86) was activated and if a controller in the
selected cluster was configured for supply-air temperature control.
You can change the setpoint setting for the supply-air temperature in the “Setpoint sup-
ply-air temperature” menu.
Depending on the setting, the supply-air temperature setpoint is displayed (see
„Submenu temperature unit“ on page 85), in
– degrees Celsius (°C) with an interval of 0.5 degrees or
– degrees Fahrenheit (°F) with an interval of 1 degree

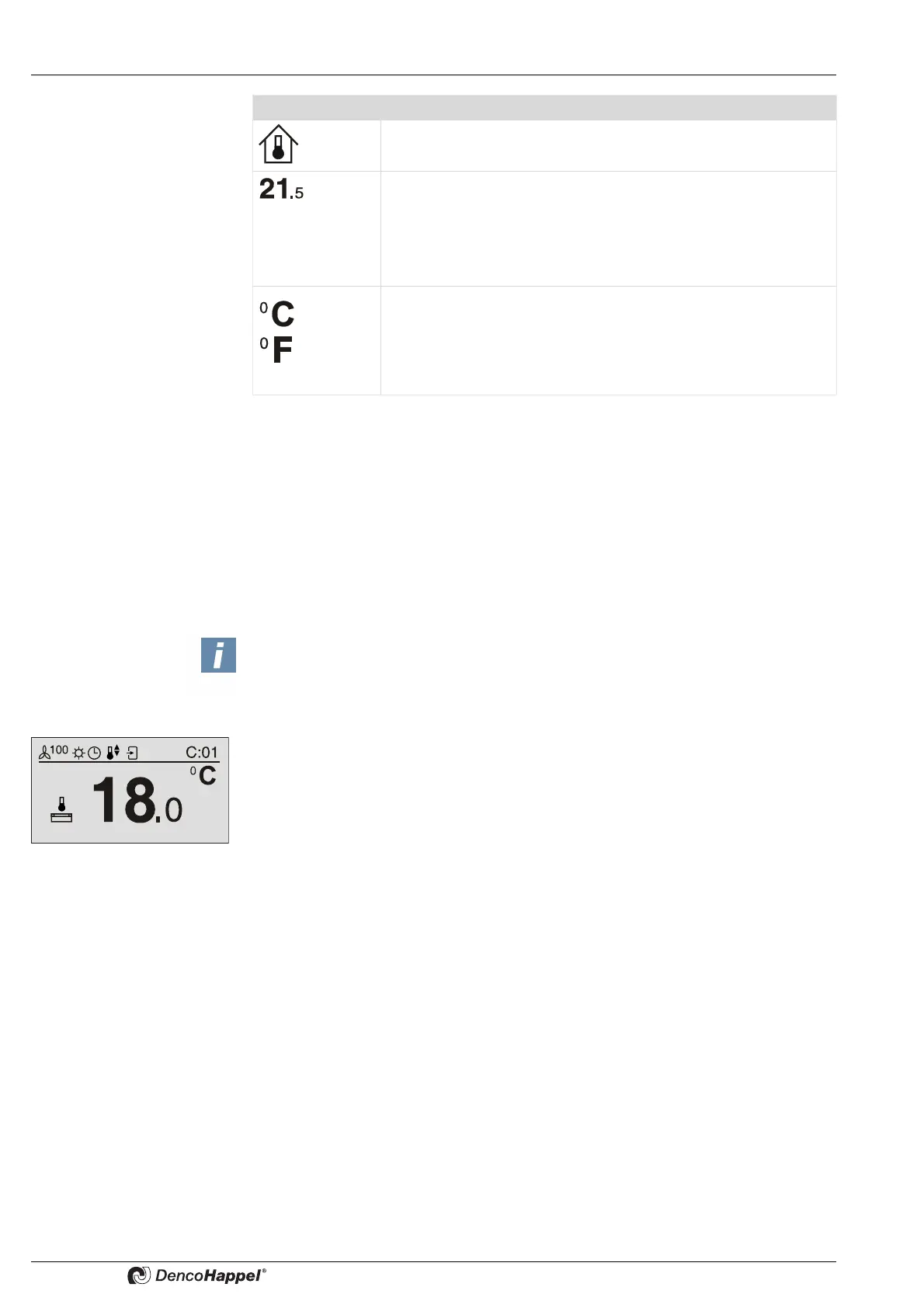

Symbol Explanation
Icon for setpoint room temperature
Value range
Factory setting
Set room temperature setpoint in
degrees Celsius or degrees Fahrenheit.
7 °C to 40 °C
Normal operation: 22 °C
Economy operation: 18 °C
Factory setting
Set temperature unit in
degrees Celsius
or
degrees Fahrenheit
°C
NOTICE!
The “setpoint room temperature” and “setpoint supply air temperature” menus are
displayed depending on the configuration of the connected controller. The selection
is made automatically.
