Operating MATRIX control panel OP71 MATRIX Control Panel OP71
40 PR-2009-0021-GB • Subject to modifications • R5-04/2016

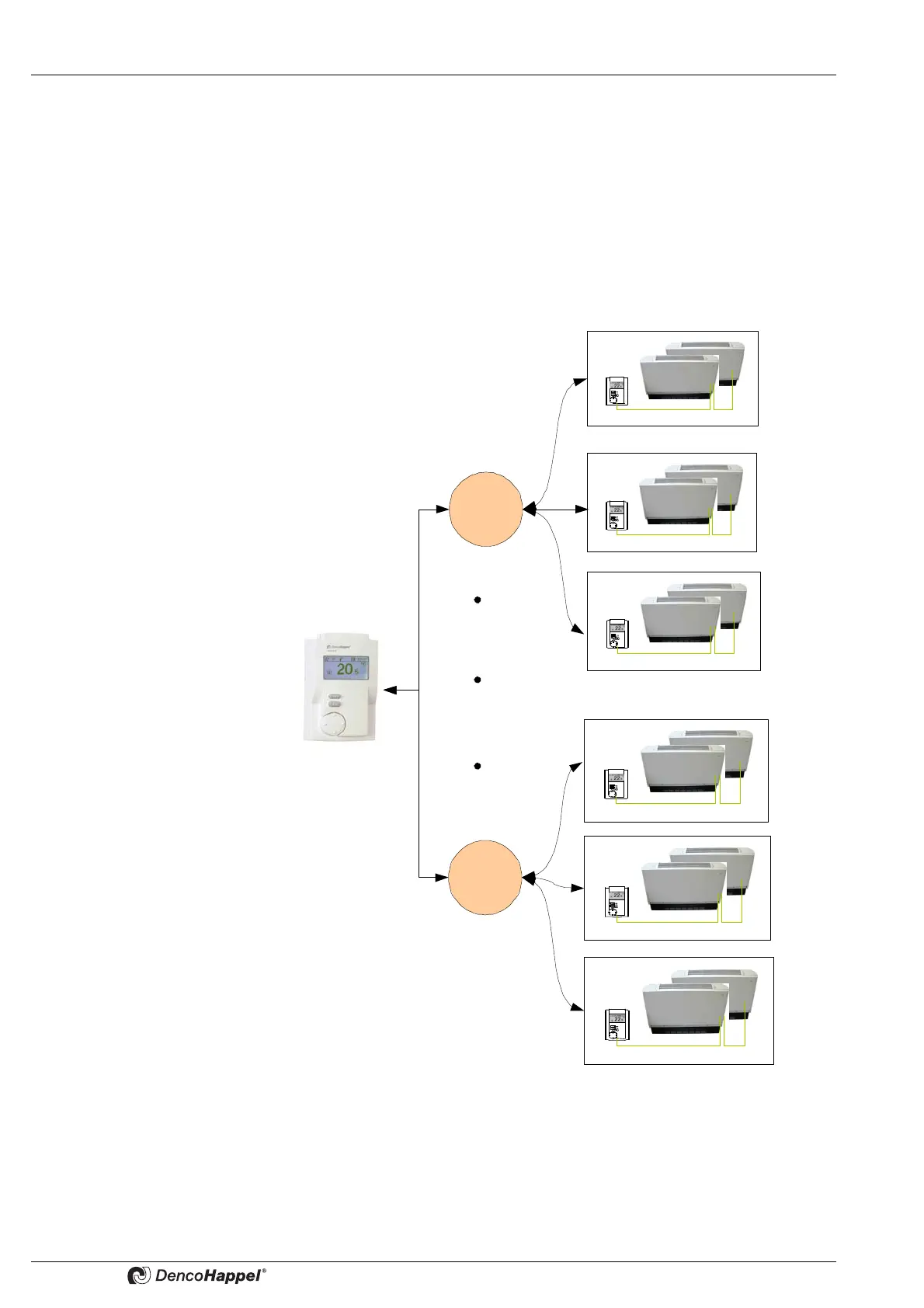

8.3.4 Cluster \ group structure in MATRIX control panel OP71
In such a way it is possible to simultaneously supply several groups with the same
nominal values using the MATRIX control panel OP71 and to unite groups in clusters.
A maximum of 16 clusters can be assigned to one MATRIX control panel OP71. Follo-
wing cluster/group combinations are possible:
– one group per cluster
– one cluster with up to 16 groups
Factory setting: one group is assigned to each cluster. Cluster designations that can
be changed are preallocated with "Cluster 0" up to "Cluster F".
Group 0
Group 1
Group 2
Group n
Group n+1
Group n+2
MATRIX-
control panel OP71
Cluster 0
Cluster n
