MATRIX Control Panel OP71 Operating MATRIX control panel OP71
PR-2009-0021-GB • Subject to modifications • R5-04/2016 73

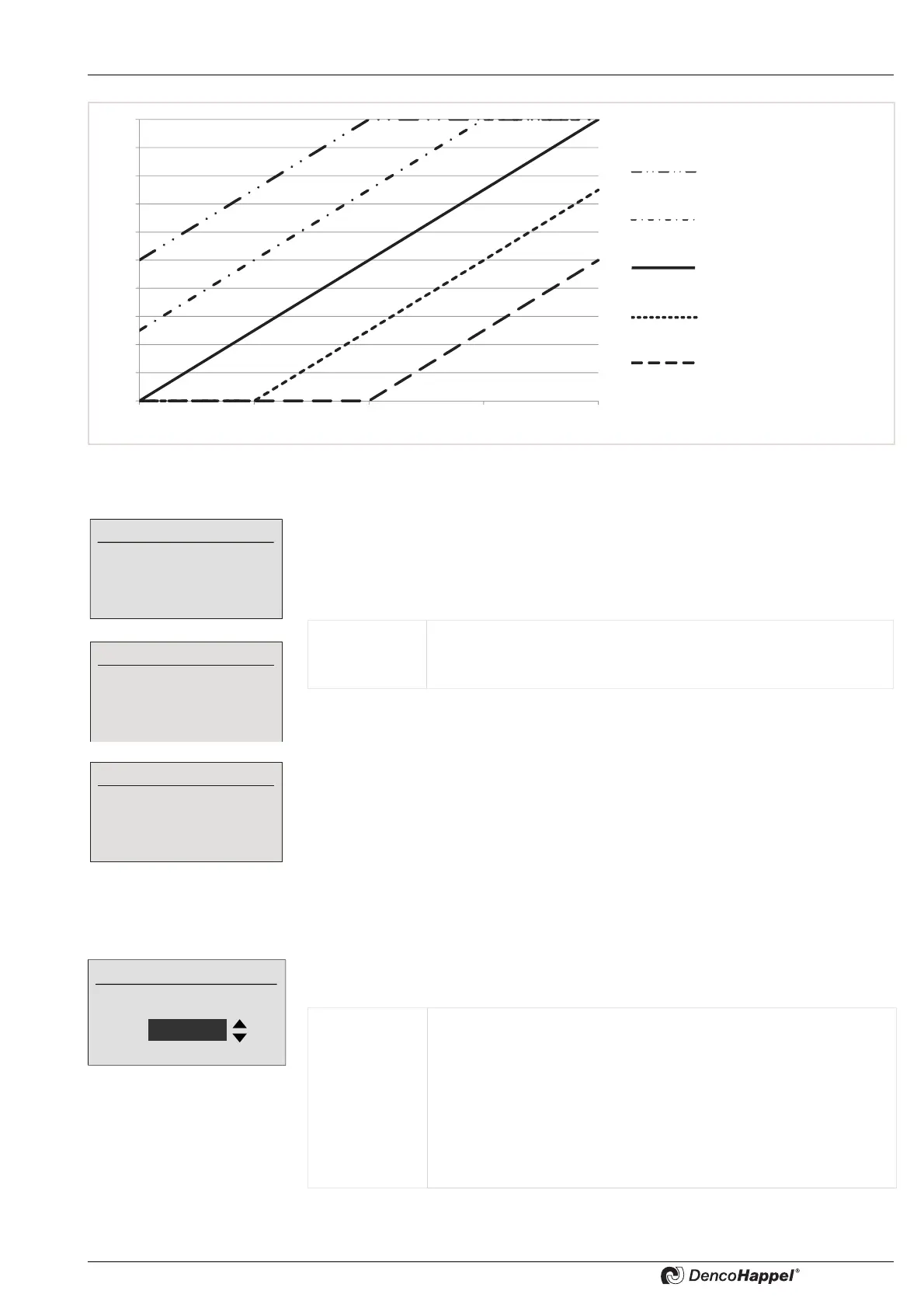

Fans ➜ Max. volume flow
The maximum volume flow or the maximum volume flows in m³/h of the connected air
handling unit must be entered by selecting "supply air fan" or extract air fan" in the
submenu "max. volume flow". The volume flow control is also based on these data.
Refer to the technical documentation of the respective air handling unit for the
maximum volume flow.
8.6.17.4 Air handling unit ➜ energy recovery system
The following energy recovery types can be selected in the "energy recovery"
submenu:
60%
70%
80%
90%
100%
0%
10%
20%
30%
40%
50%
60%
0 25% 50% 75% 100%
Speed of slave fan
with offset 50%
Speed of slave fan
with offset 25%
Speed
master fan
Speed of slave fan
with offset –25%
Speed of slave fan
with offset –50%
m³/h
m³/h
Supply-air fan
7500
Extract-air fan
Max. volume flow
Supply-air fan
Extract-air fan
7500
Value range: 0 to 65,000 m
3
/h
Adjustable steps: 10 m
3
/h
Factory setting: 1,000 m
3
/h
ERS type
Energy recovery
Disabled
Value range: Disabled (factory setting)
DencoHappel Ecoflow 2-point
DencoHappel Ecoflow 3-point
DencoHappel Ecostat
DencoHappel Ecoplat
DencoHappel Ecorot
DencoHappel Ecorot 0..10°V
DencoHappel EcoplatTwin
DencoHappel Multiflow
