Configuration menu Clustering
Digi CM User Guide 171

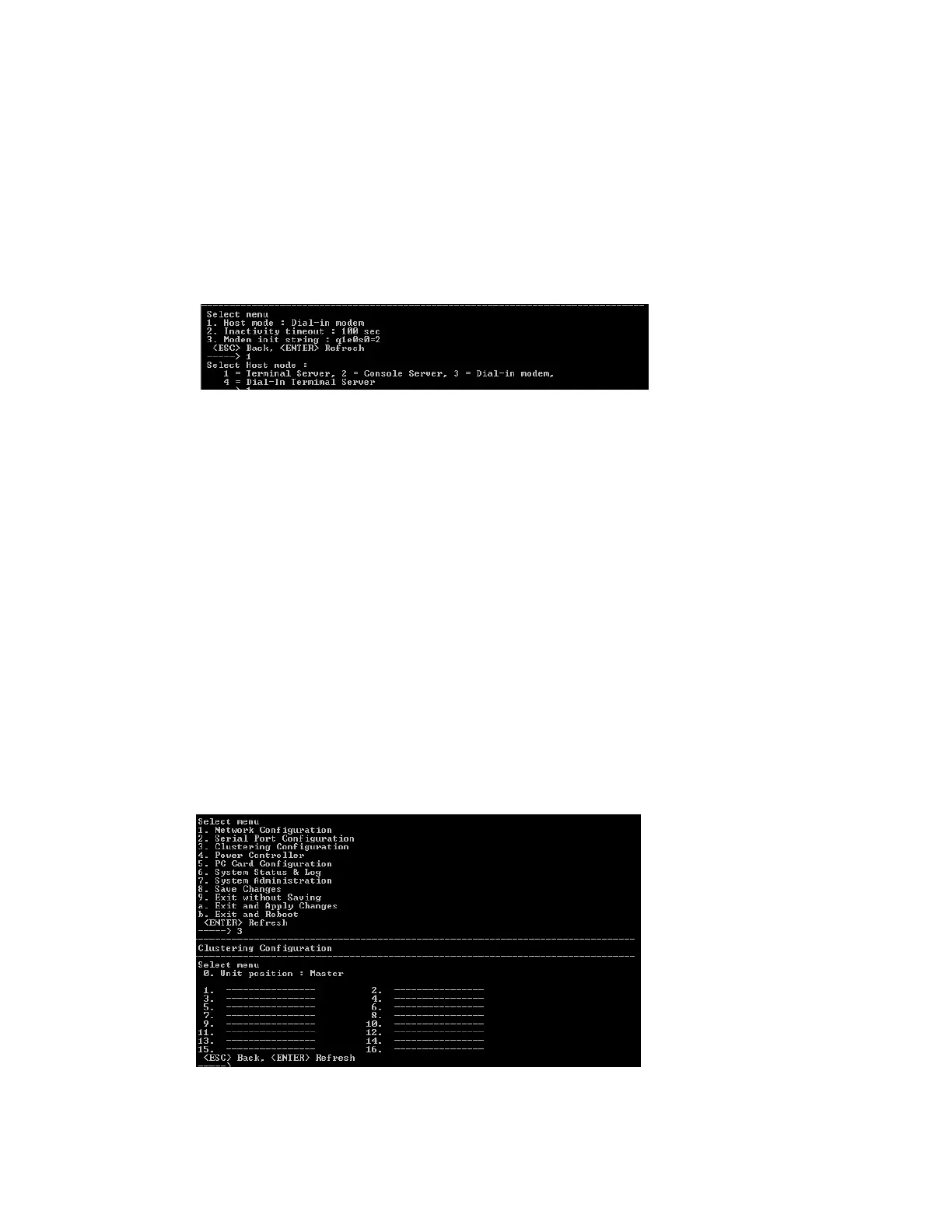

unit and then the serial port is configured for dial-in terminal server mode. In the illustration below,
port 7 is configured for dial-in terminal server mode.
In terminal server mode, you are connected directly to a server.
To configure a serial port for a dial-in terminal server, do the following:
1 Access the configuration menu.
2 Choose Serial port configuration.
3 Choose an individual port number and then Host Mode Configuration.
4 Choose Dial-in Terminal Server and configure the other configuration parameters.
5 Use the ESC key to return to the main menu.
6 Choose Save changes.
Clustering
By default clustered slave devices are configured using the Telnet protocol and port parameters of
the following: bps=9600, data bits=8, parity=none, stop bits=1, flow control=none. When the master
device autoconfigures a slave device, it simply imports the information from the slave unit. If you
want other protocols or other port parameters, you should configure your slave unit first with those
parameters before autoconfiguring.
Before you start this configuration procedure, the slave units should already be configured unless
you want them set to the default values. To set up the Digi CM unit for clustering, do the following:
1 Access the configuration menu.
2 Choose Clustering configuration > Unit position.
3 Assign the unit as the master device.
A new screen is displayed.
4 Enter the number 1 for the first slave unit.
