Rackable Systems management card Add a PC modem
Digi CM User Guide 118
6 Click Save & apply.
Add a PC modem

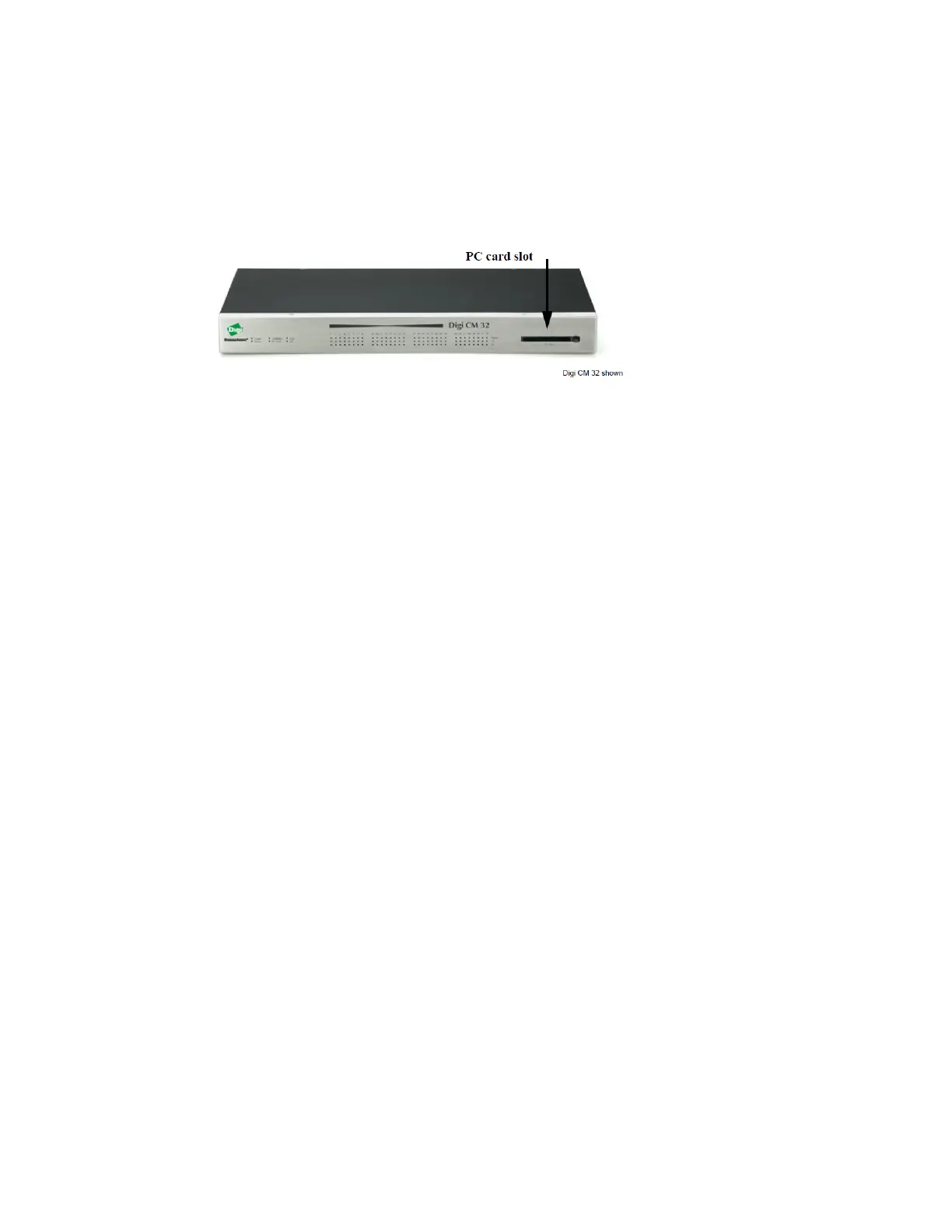

A PC card slot is provided on the front panel of the Digi CM unit. The following graphic has an arrow
that indicates the PC card slot.
To install and configure the PC modem on the Digi CM unit, do the following.
1 Insert the card into the PC slot located on the front of the device.
2 Access the web interface.
3 From the menu, choose Configuration under the PC card heading.
4 Choose Discover a new card.
The Digi CM unit searches for a PC card and displays a configuration menu.
5 Enter the appropriate parameters in the configuration menu.
6 Click Save & apply.
Configure for Dial-In Terminal Server access
The host mode Dial-In Terminal Server is identical to the host mode Terminal Server but allows you
to configure a modem init string. In this mode an incoming modem connection is automatically
connected to an IP address.
To configure a serial port for a dial-in terminal server access, enter the values for these fields: Host
mode, Destination IP, Base Port, Protocol, Inactivity timeout, and Modem init string. To access the
Host mode configuration screen, do the following:
1 Access the web interface.
2 Under the Serial port heading, choose Configuration.
3 Choose a specific port under Individual port configuration and then choose Host mode
configuration.
4 Select Dial-in terminal server for the Host mode from the drop down menu.
5 Fill in the appropriate fields as they apply to your configuration.
Destination IP - The IP address of the system that you will be automatically connected to when
you access the port.
