Configure virtual KVM Use Virtual KVM with X Window System Protocol and XManager software

Digi CM User Guide 103

Configure

To set up Virtual KVM with X Window System Protocol and XManager Software, follow this

procedure.

1 Access the Digi Passport Web interface and log in.

2 Choose Serial Port > Configuration.

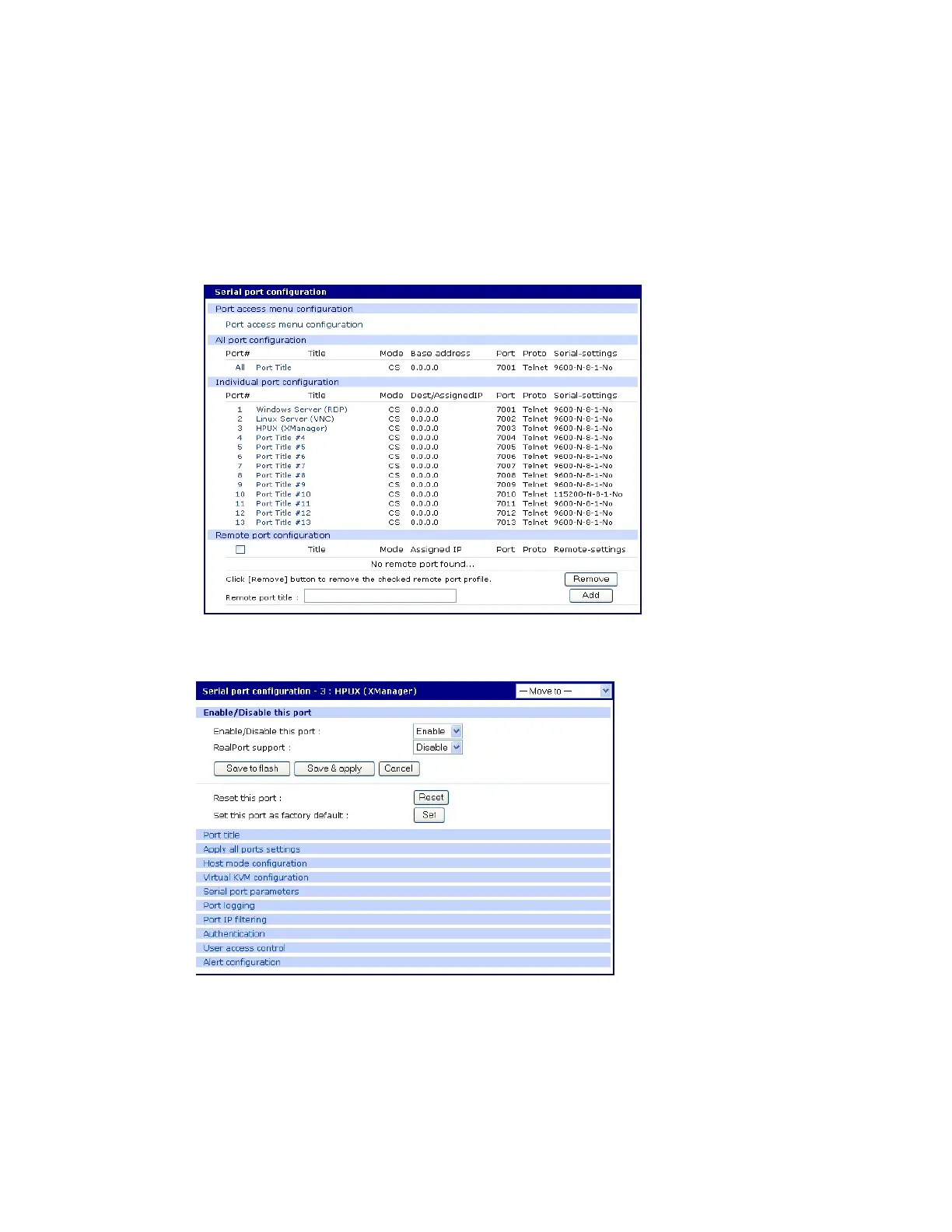

You see this window:

3 Choose the port you want to configure.

A window similar to this one opens, showing the serial port number and title:

4 Choose Virtual KVM configuration.

This window opens:
