110
LUBRICATION

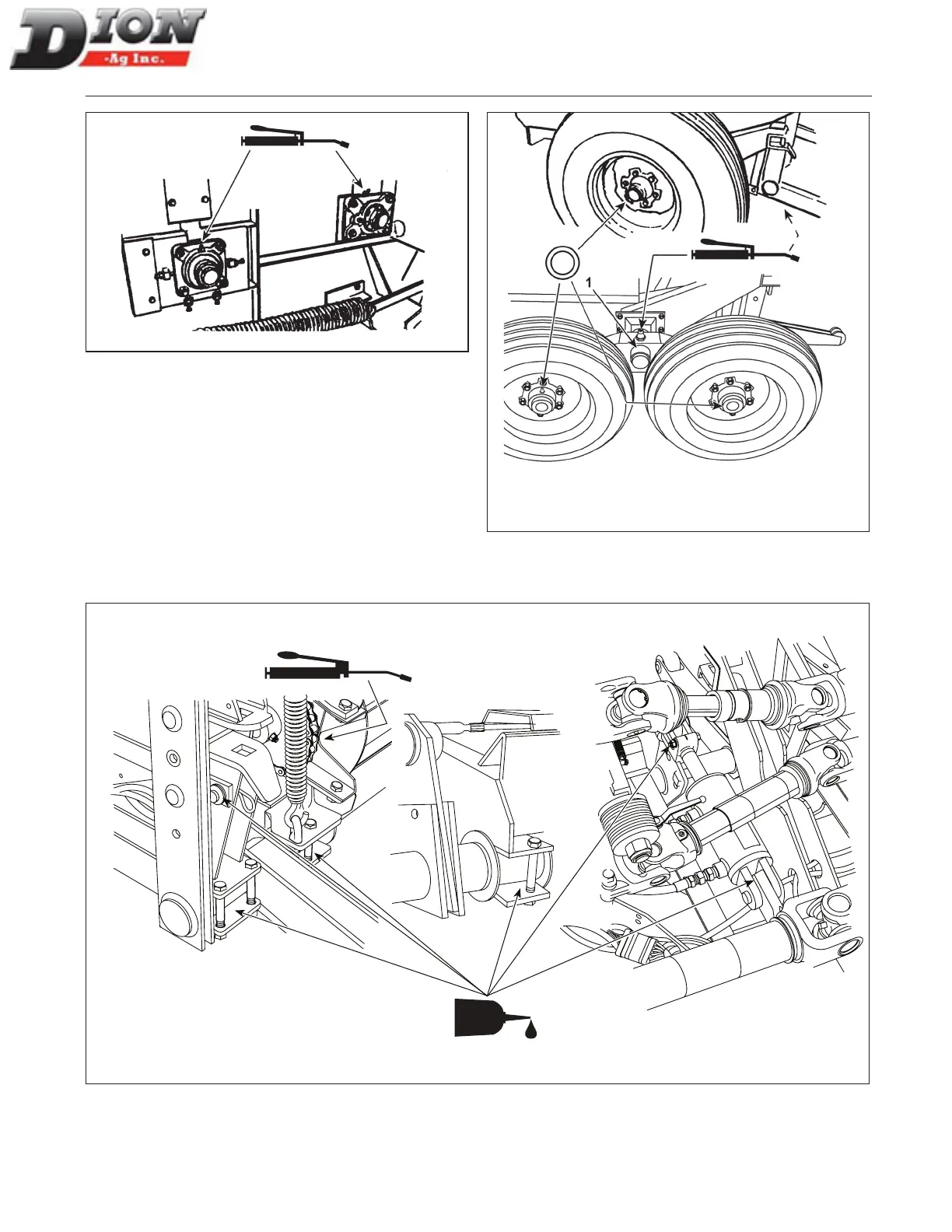

Figure 150 Cutter head and fan bearings (on both sides - 4
points)
NOTE: Lift up the Forage Harvester with a jack to re-
move pressure on the axle (item 1 in Figure
151). This will allow the grease to be more
evenly and efciently spread inside the walking
beam.
NOTE: Lubricate both sides
Figure 151 Wheel hubs and beam (tandem)
EVERY 100 HOURS OF
OPERATION
Figure 152 Lifting arm and cylinder
Manual No. F4117E987E V1.1
