Dion-Ag F41 - Upper Roll Adjusting Bolts; Magnetic Drain Plugs

118

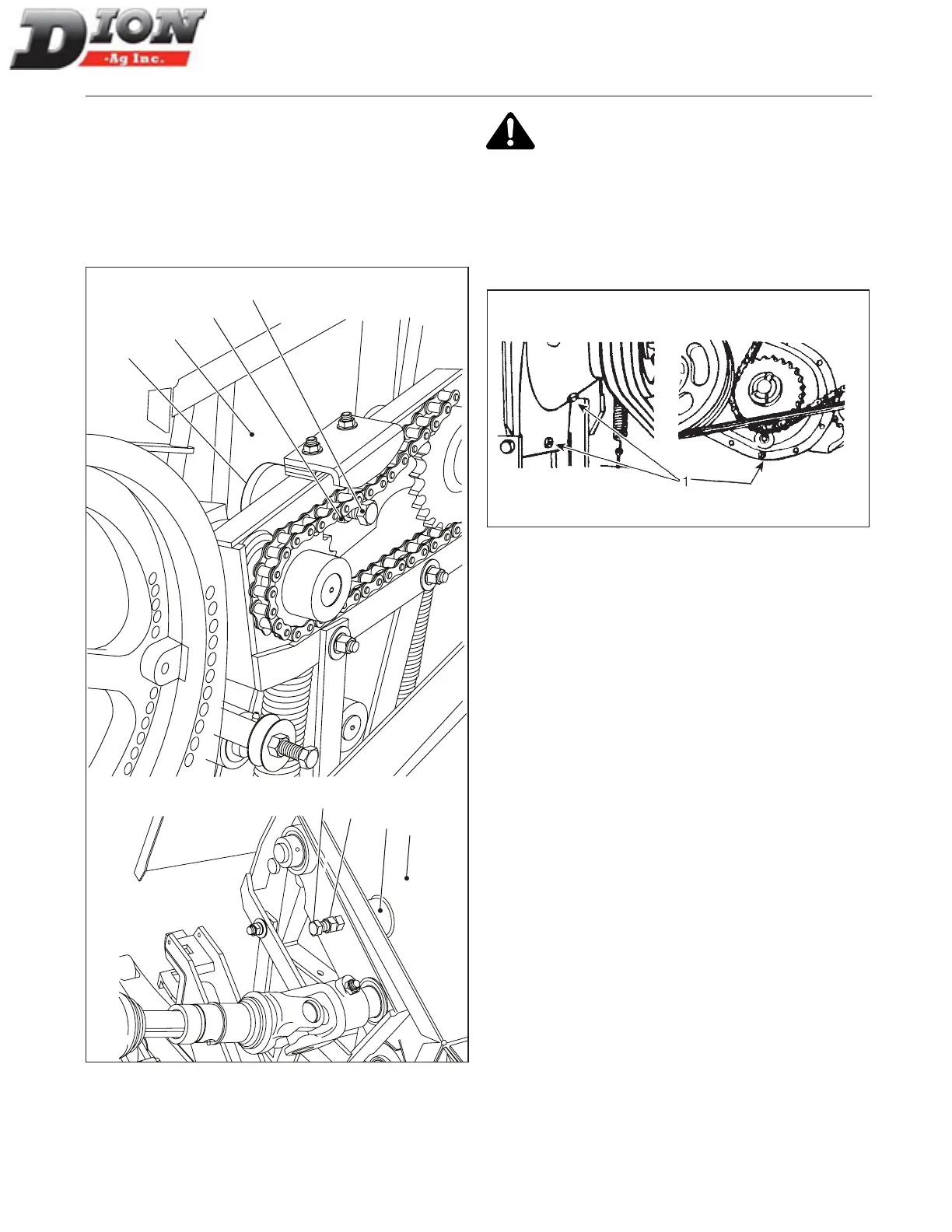

UPPER ROLL ADJUSTING BOLTS - FIGURE 167
The upper rolls can be centered so that they will not rub
against the inner walls.
Adjust the polyethylene guide (item 1) 1/16” (1.5 ) from
the sides of Forage Harvester frame (item 2) using the
adjusting bolts (item 3). Then, lock these bolts with the
nuts (item 4). Check this adjustment periodically.
1
2
4
3
4
1
2
3
Figure 167 Upper roll adjusting bolts
WARNING: Make sure all moving parts on the
Forage Harvester have stopped before servicing
or repairing the machine.
MAGNETIC DRAIN PLUGS - FIGURE 168
Remove all metal particles from the magnetic drain
plugs (item 1) on the main and angle drive transmissions
when changing oil.
Figure 168 Magnetic oil drain plugs
ADJUSTMENTS - MAINTENANCE
Manual No. F4117E987E V1.1
