ADJUSTMENTS - MAINTENANCE
NOTE: It is possible to check the ”zero” clearance at
both ends of the knives by holding a light on top
of the feed rolls and by looking through the hole
on top (Figure 200 - item 7).
6
5
9
4
10
8
1
4
4
5

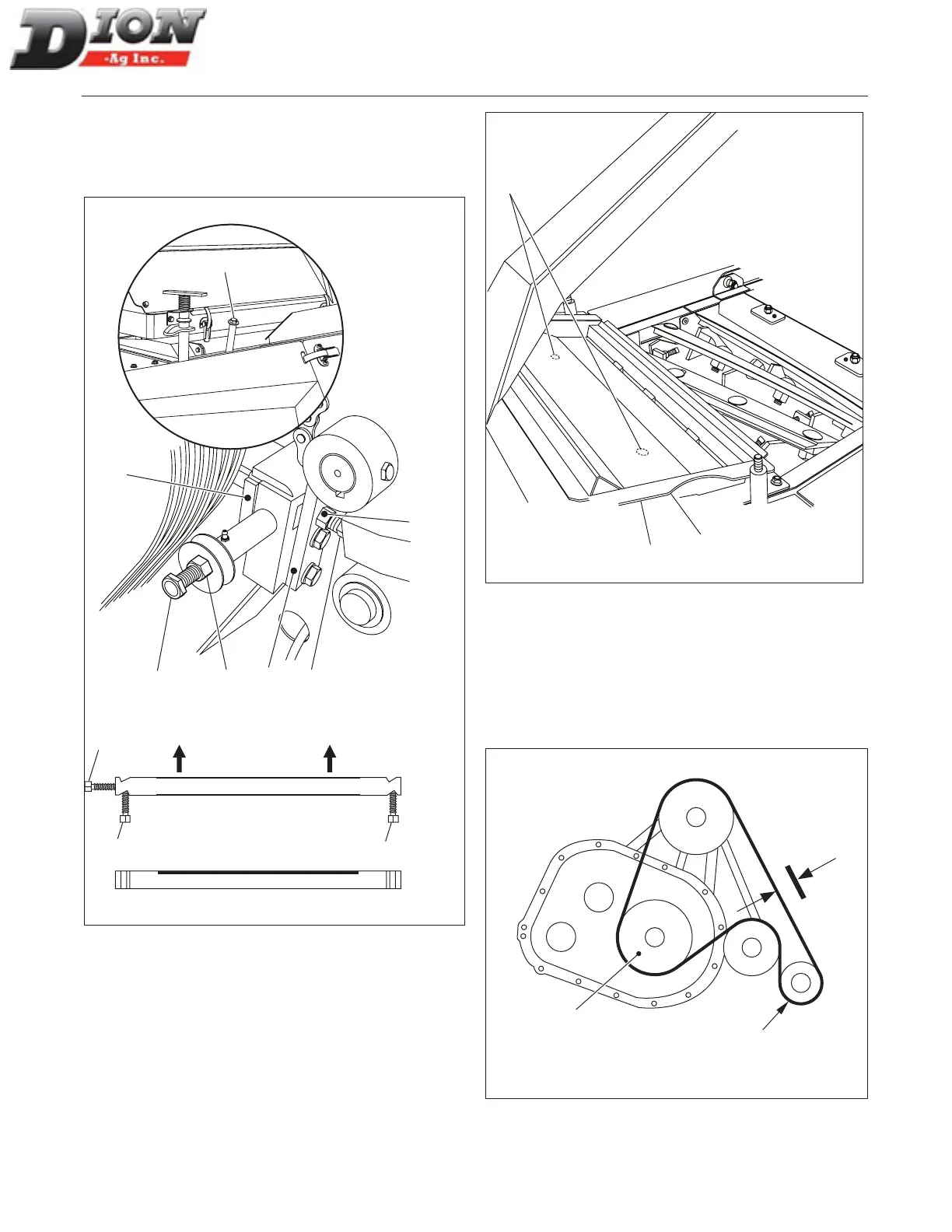

Figure 199 Shear bar initial adjustment and replacement
7
10
11
Figure 200 Use holes on top to check clearance
CUTTING LENGTH SELECTION - FIGURE 201
The cutting length can be changed by two factors on the
Forage Harvester: the number of knives and the number
of teeth on the sprocket (item 1) driving the feed rolls.
Please refer to the following charts.
1
Verify chain
around sprocket
Figure 201 Cutting length selection
Behind
1/2” (13 )
15 lbs (7 kg)
UP
Towards cutter head
UP
