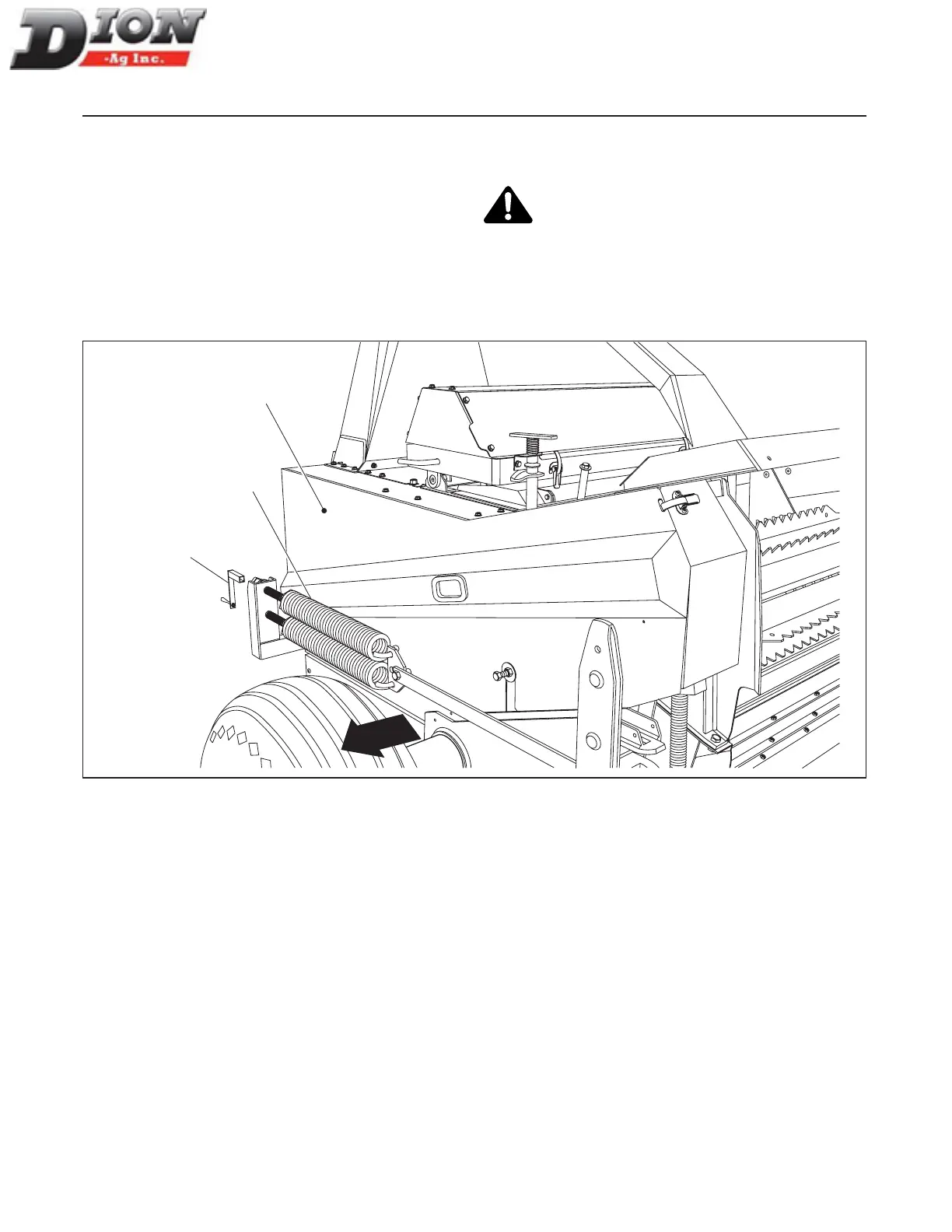

STEP 1 - FIGURE 107
Slide the axle shaft outward as shown below.
STEP 2 - FIGURE 107
Remove the balancing springs (item 2) completely using
the handle (item 3). Open the guard (item 1).
CAUTION: Be alert when you operate and/or work
on a machine
For corn crop, the Corn Cracker must be partially reassembled by installing the upper cracker roll. Proceed as per
the following instructions:
PARTIAL REASSEMBLING OF THE CORN CRACKER FOR CORN CROP
3
2
1
Figure 107
Manual No. F4117E987E V1.1
