27

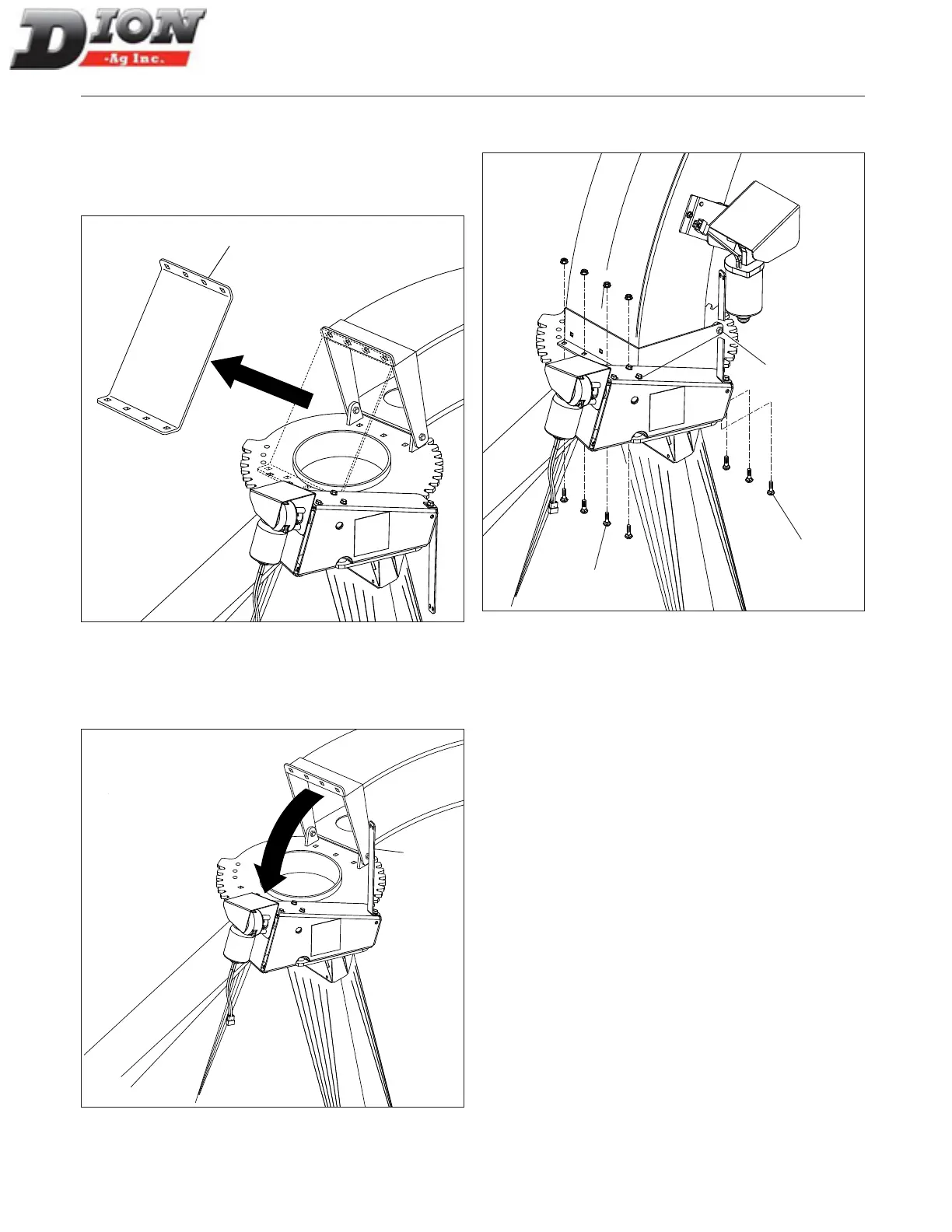

INSTALLING THE FOLDABLE SPOUT (F41 MODEL
ONLY)
1. Remove the transport plate (item 1) with the seven
1/2” X 1 1/4” lg carriage bolts. Keep those carriage
bolts to secure the spout later on.
1
Figure 9
2. Raise up the spout as shown below.
3. Position the cable support bracket (item 4) as shown
here.
4
Figure 10
4. Secure the spout using the seven carriage bolts
(item 2) that were previously removed. Tighten well.
2
2
3
Figure 11
5. Tighten the two hexagonal head bolts (item 3) that
serve as a hinge.
ASSEMBLING INSTRUCTIONS
Manual No. F4117E987E V1.1
