CORN CRACKER INSTALLATION INSTRUCTIONS

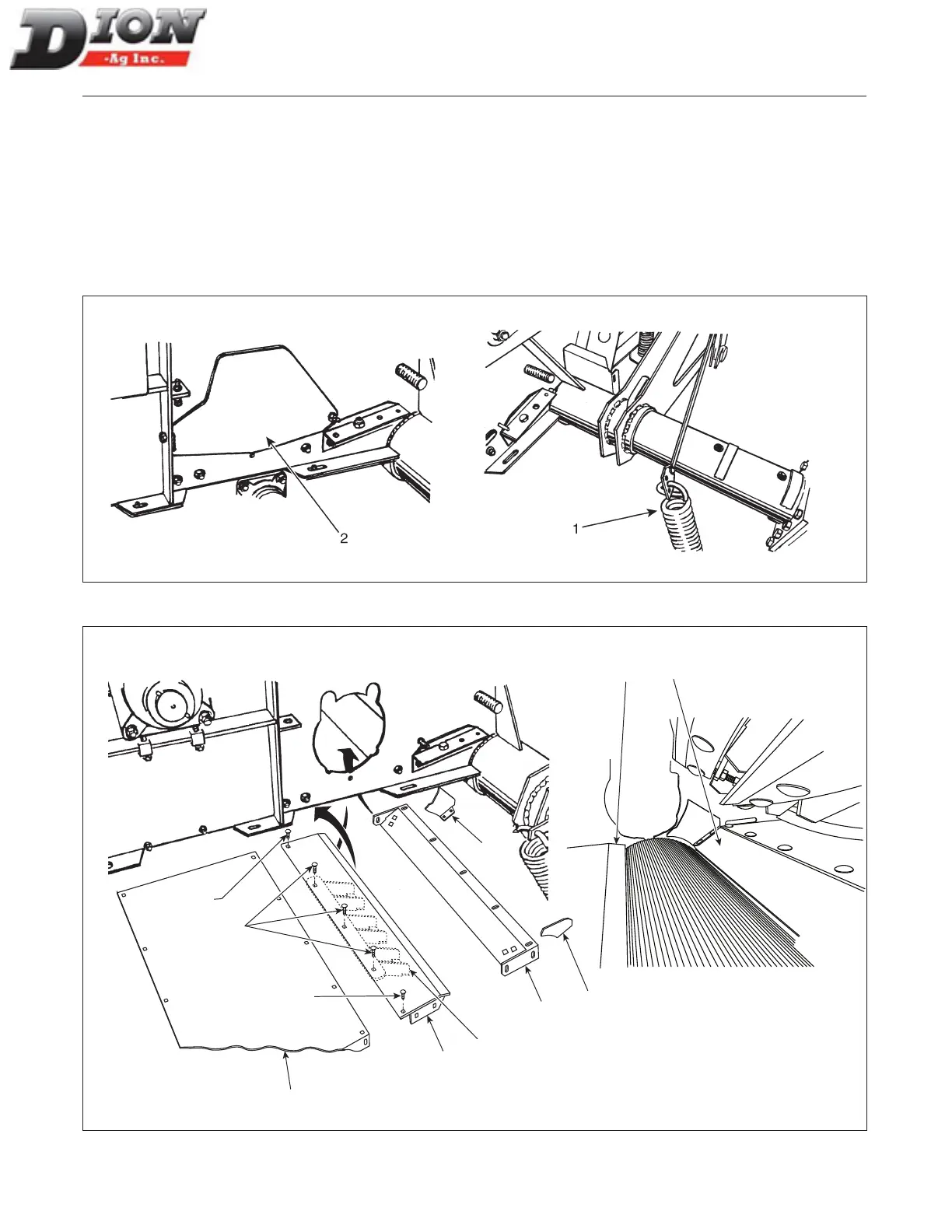

STEP 1 - FIGURE 74
Remove the balancing spring (item 1) completely. Re-
move the right-hand and left-hand cover plugs (item 2).
STEP 2 - FIGURE 75 TO FIGURE 78
1. Unbolt the Forage Harvester’s middle bottom plate
(item 1) and remove it. Save the bolts for the half
bottom plate assembly.
2. Bolt the front half bottom plate (item 2) UNDER the
bottom plate of the cutter head and the rear half
bottom plate (item 3) OVER the bottom plate of the
fan. Bolt the adjustment support bracket (item 5) as
shown later. Do not tighten nuts yet.
3. Install both the right-hand and left-hand deectors
(item 4) with four 5/16 X 3/4” lg. carriage bolts and
four ange nuts. Tighten well.
Figure 74
4
2
3
1
32
4
5
3/8” X 3/4” lg
3/8” X 3/4” lg
3/8” X 1” lg
Figure 75
