ASSEMBLING INSTRUCTIONS - ELECTRIC QUICK-DISCONNECT HITCH (2017+)
NOTE: This option is not available on F41 Stinger
models.

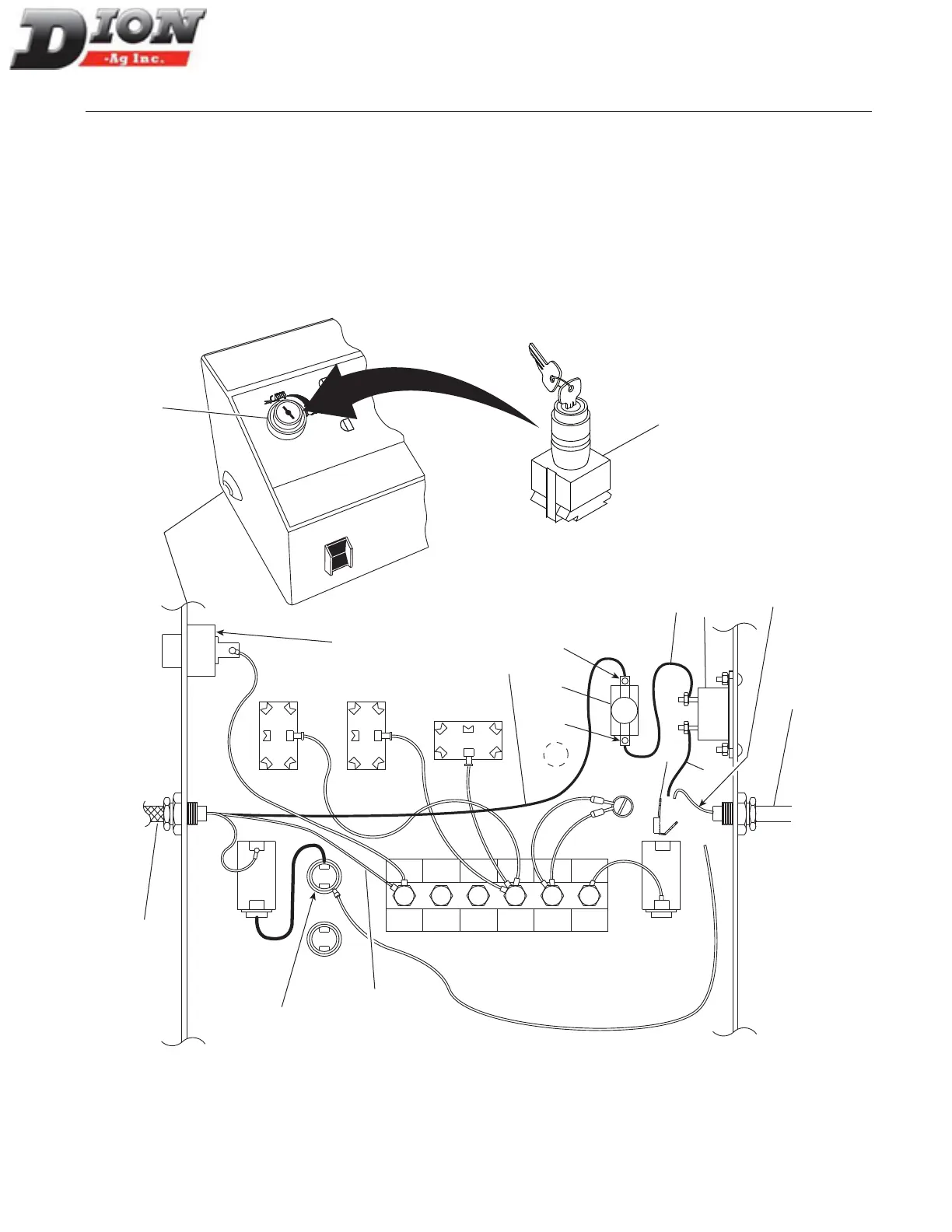

STEP 1
Disconnect the power cable (item 20) on the con-
trol box before making the connections.
Open the control box (item 1) located in the tractor cab.
Install the key switch (item 2)and fasten it permanently.
Install the relay (item 8) using two 1024 X 1/2” lg bolts
and two 1024 star nuts. Connect the blue-white wire
(item 5) to the terminal and the blue wire (item 6) to the
#4 switch pin on the key switch (item 2). Connect the
supplied wire (item 7) to the #3 switch pin and to the
relay (item 8). Connect the supplied wire (item 9) to the
relay and to the 3-way connector (item 10) and nally to
the white wire on the battery’s power supply. Close the
control box cover.
LUMIERE
LIGHT
DECROCHAGE
LUMIERE
LIGHT
DECROCHAGE
UNHOOK
20
10
#3
#4
1
2
2
POWER SUPPLY
5
6
7
8
9
3
2
MAIN TERMINAL (+)
ALARM
EMERGENCY
STOP
white (+)
Figure 61
