Dion-Ag F41 - Corn Cracker Upper Roll Bearings

147
ADJUSTMENTS - MAINTENANCE

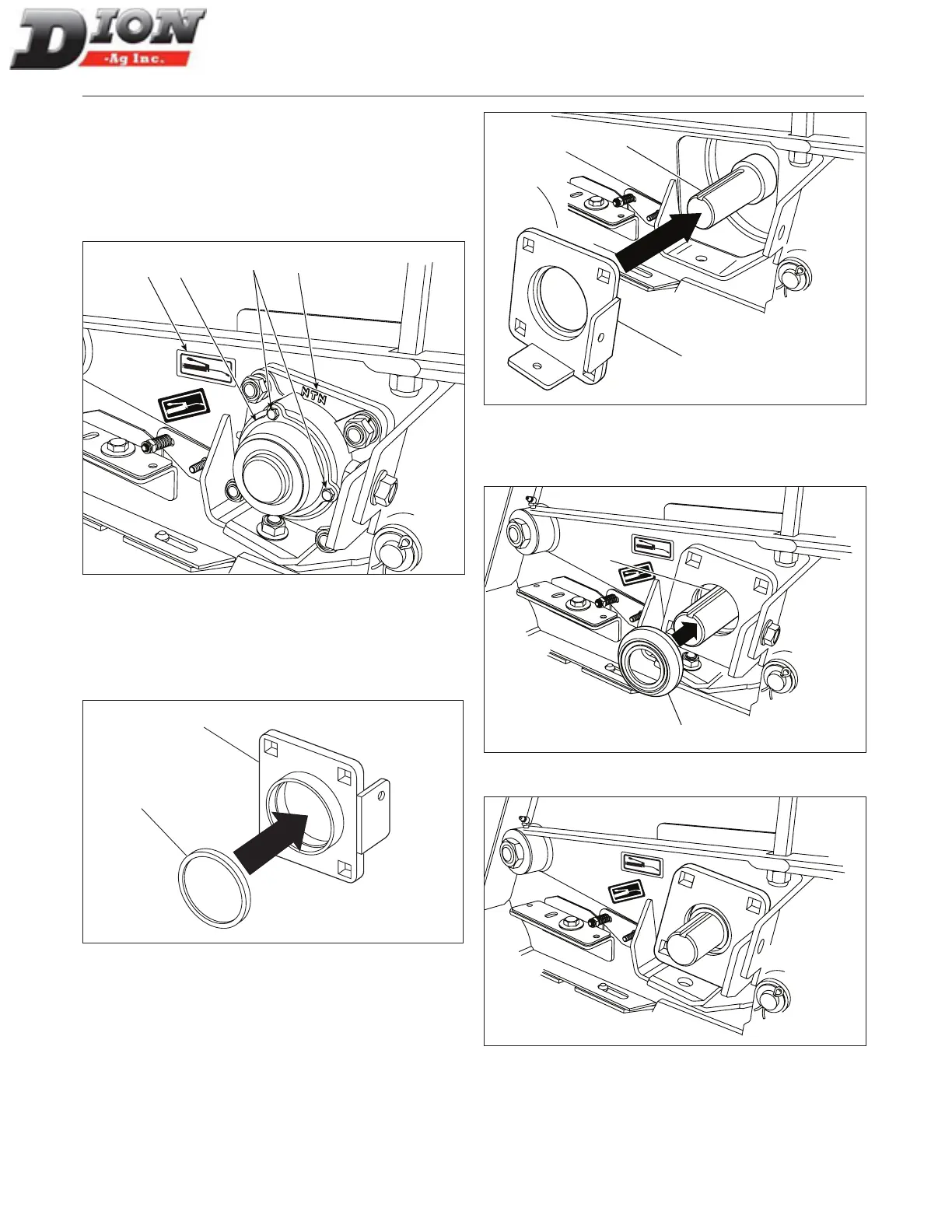

CORN CRACKER UPPER ROLL BEARINGS
FIGURE 221 TO FIGURE 229
To remove one of the two high speed bearings
(item 1):
Remove the grease cap (item 2) and the two set screws
(item 3).
1
3
2
10
Figure 221
To install one of the two high speed bearings
(item 1):
1. Insert a seal (item 4) into the support bracket
(item 5).
5
4
Figure 222
2. Slide the support bracket (item 5) onto the shaft
(item 6).
5
6
Figure 223
3. Slide the machined side of the spacer (item 7)
against the shaft shoulder (item 6).
6
7
Figure 224
Figure 225
4. Slide the bearing (item 1) on the shaft (item 6) and
align the two set screws (item 3) with the two ats
on the shaft.
Manual No. F4117E987E V1.1
