160
ADJUSTMENTS - MAINTENANCE

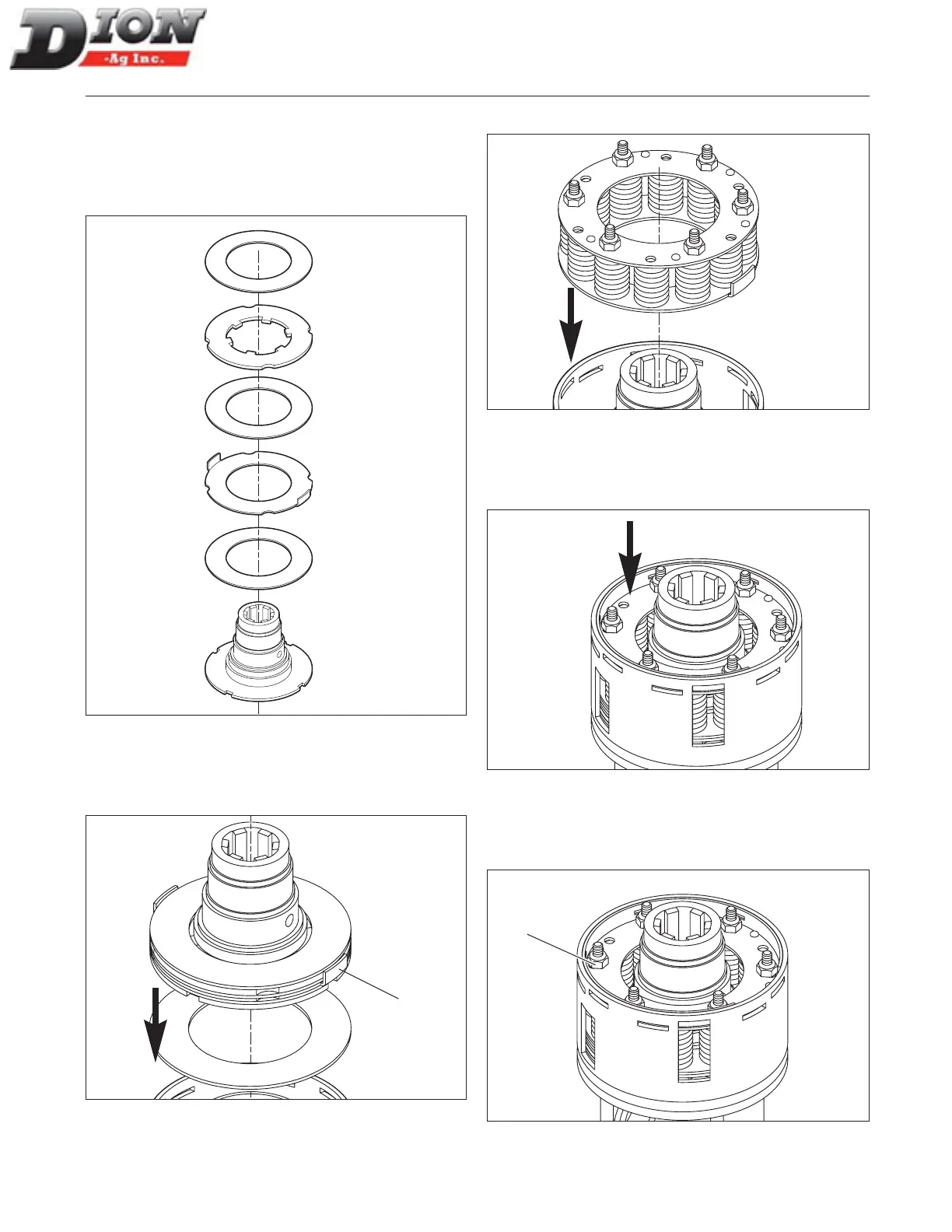

CLUTCH ASSEMBLING PROCEDURE
1. Fit the friction disks and drive plates to the ange
hub in the correct sequence as illustrated. A friction
disk is mounted to the bottom of the clutch housing
and to bre hub pilot bearing.
Figure 252
2. Insert the ange hub with the friction disks and the
drive plates into the clutch housing - lining up the
tabs (item 3) of the drive plate.
3
Figure 253
3. Put spring pack assembly.
Figure 254
4. Put the setting ring back in its proper location. Take
note of the position window and setting ring min./
max. location.
Figure 255
5. Loosen the six nuts (item 1) until they reach the end
of the studs. In this position, the spring pack is pres-
sure controlled by the location of the setting ring.
1
Figure 256
Manual No. F4117E987E V1.1
