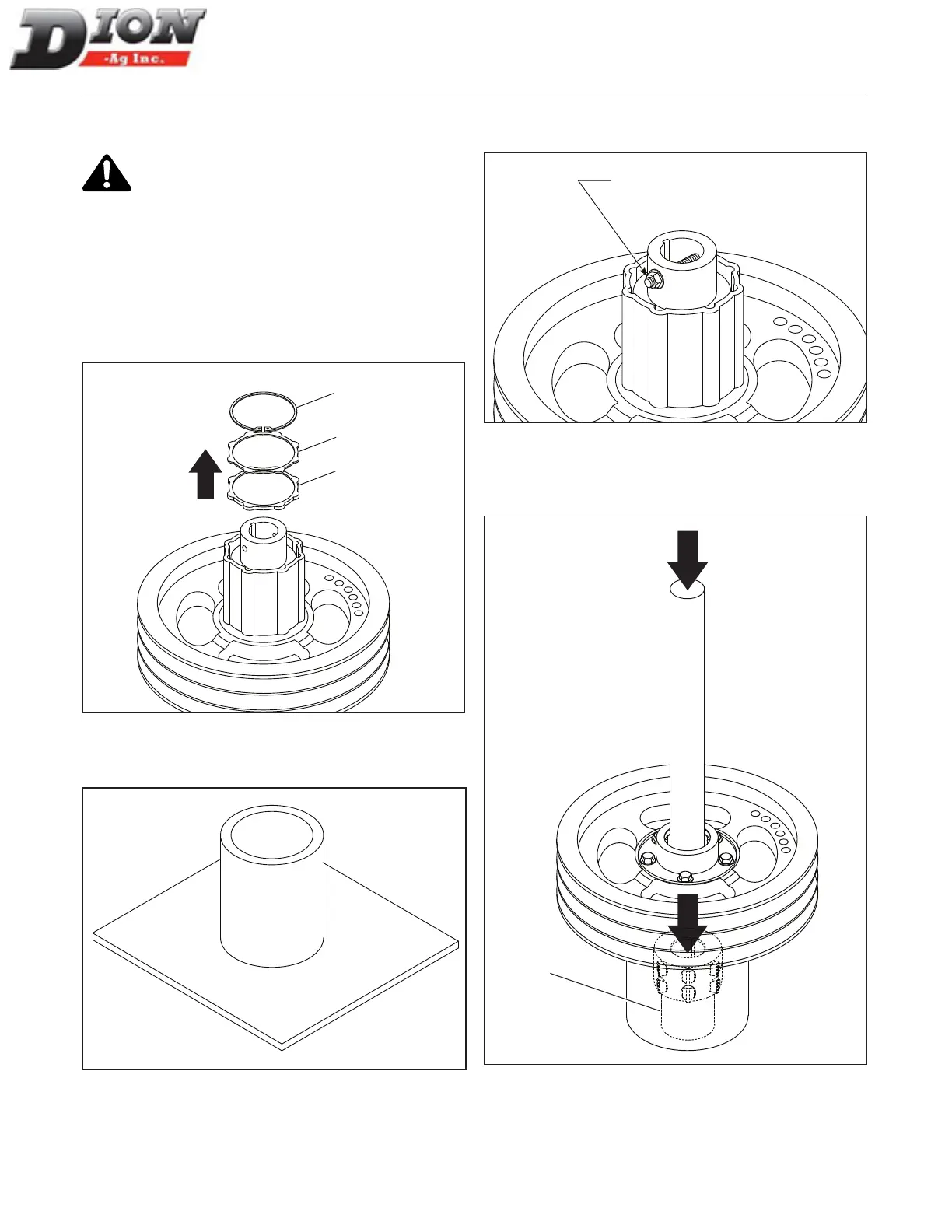

DISASSEMBLING AND ASSEMBLING THE
RADIAL PIN CLUTCH (TORQUE LIMITER)
WARNING: Always wear safety goggles.
NOTE: To ensure a thorough cleaning of the torque lim-
iter, remove excess grease and check condition
of internal parts.
NOTE: Do not unbolt the sheave when disassembling
the torque limiter. Leave it in place.
1. Remove the retaining ring (item 7), the shoulder ring
(item 8) and the sealing ring (item 2).
7
8
2
Figure 260
2. Use a 5” (13cm) dia. metal tube, 8” (20cm) long, and
x it to a metal plate. This will stabilize the assembly.
Figure 261
3. Insert a 5/16” by 3” long hex head bolt in the hub
hole and secure it with a nut.
5/16” bolt and nut
Figure 262
4. Place the assembly on the tube and, using a 1”
(2.5cm) dia shaft, push the hub out of the clutch
housing (item 14).
Hub
Figure 263
ADJUSTMENTS - MAINTENANCE
Manual No. F4117E987E V1.1
